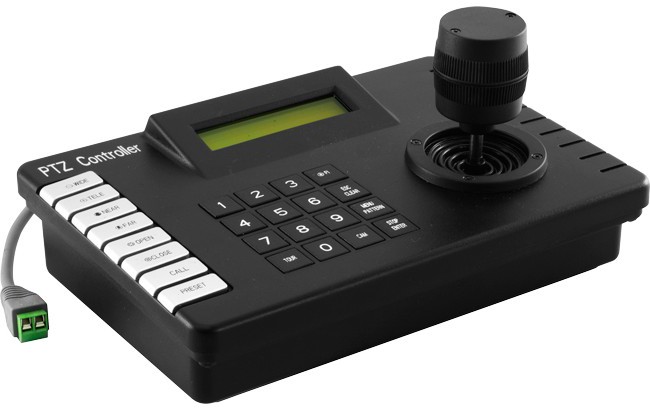

KT301
43150160
Discontinued
- Plastic shell, Computer-keyboard-simulation design.
- English LCD display.
- Able to set different protocols and baud rates by RS485 control bus.
- Built-in multiple control protocols, able to control different factories’ speed domes.
- RS485 control bus controls max 256 head end equipments.
- All I/O ports are lighting-proof.
- Password to lock/unlock and keyboard controller.
- ID Address: 0-255
Download the KT301 UserManual
(PDF file)
Specifications
| LCD display | English | |
| Side panel | RJ45n port (connect RS485 line), DC12V port | |
| Camera control | Max 256 sets | |
| Joy stick | Two/three dimension (left/right, up/down, zoom) | |
| Lens control | Iris: on/off Focus: near/far Zoom: enlarge/reduce | |
| Camera outer-setting | Frost removal: on/off Rain wiper: on/off, Auxiliary switch 1: on/off, Auxiliary switch 2: on/off | |
| PTZ control | Left/Right, Up/Down, Position-limit setting of scan, Auto scan, Pattern scan, Auto cruise | |
| Preset control | Save/Adjust preset position, Preset position parameters setting, Home position | |
| Baud rate | 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps | |
| Control protocol | PEL-D, PEL-P, TopHiD1, TopHiP1, TopHiD2, TopHiP2 | |
| Communication method | RS485 point-to-multipoint semiduplex communication | |
| Transmission distance | 0-1200 meters | |
| Weight | 0.65 kilogram | WHD: | 197 (W) x 40 (H) x 138 (D) mm |
|
Operating Environment |
Temperature -20°C ~ +50°C,
Humidity <90% (no condensation) |
|
| Power supply | DC12V 1A/50-60Hz | |
