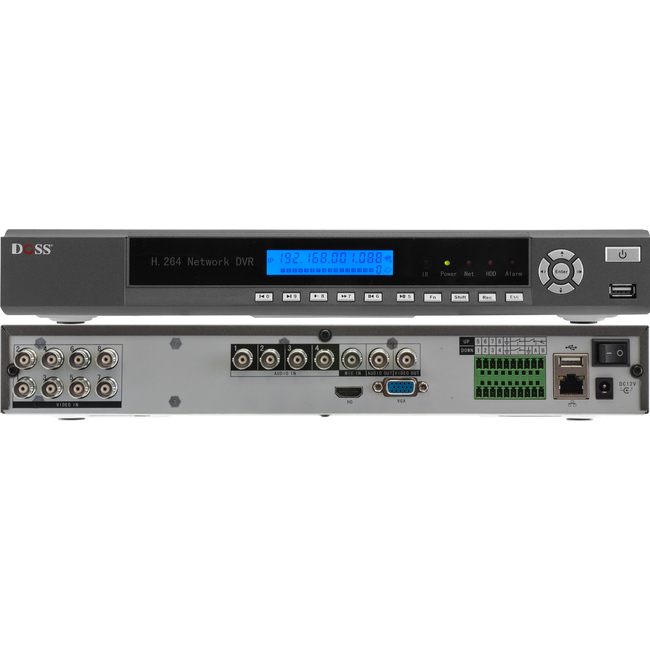

RPDVR4SDI 4CH HD-SDI NETWORK DVR
Discontinued
The next generation of Network DVRs has arrived! The new RPDVR4SDI moves away from old analogue cameras and into the Full HD realm using HD-SDI digital transport protocol.
*As seen on a FHD Monitor
At about 5x the number of effective pixels as PAL/NTSC and SD-SDI, HD-SDI images are much more effective at capturing and identifying important features. HD-SDI does not require any new infrastructure, and operates over the same RG59 cable as your existing analogue CCTV system.
Higher resolution recording than typical analogue DVRs. Also capable of recording 2 streams from the same camera simultaneously—great for playback over low bandwidth networks and archival purposes while still recording maximum quality!
Remote surveillance via your PC with the included PC client, or via Internet Explorer, or use your mobile phone to monitor on the go.
Features
- 4CH HD-SDI 1080P video input
- High resolution, dual-stream recording:
- Stream 1: 1080p / 720p / D1
- Stream 2: D1 / CIF / QCIF
- Embedded Linux operating system
- 2x Internal SATA HDD Ports; 1x eSATA Port
- Maximum 3TB per HDD
- Maximum total internal storage: 6TB
- Supports network video preview, storage and playback
- HDMI and VGA video output — resolutions up to 1920*1080
- Supports Dynamic DNS, Email Notification, Alarm Inputs and Outputs, Two-way Talkback
- Supports Web browser interface, Mobile and Desktop clients, CMS monitoring
Package includes
- DVR unit
- USB mouse
- Remote control
- SATA cable for HDD connection
- RJ45 cable for network connection
- Power supply
- Alarm connection terminals
- Software CD
Please note: package contents TBC.
Specifications
| System | |
|---|---|
| Operation System | Linux |
| Screen display | One or Four screen |
| Operation applications | Front panel, mouse/network, remote control |
| Audio and Video Encoding | |
| Compression | H.264 |
| Coding Capacity | 4CH 1080P HD video input, BNC port, P/N |
| Video Frame Rate | 1~25fps (PAL) 1~30fps (NTSC) |
| Encoding control | VBR/CBR |
| Video Encoding Rate | 640 – 8192Kbps |
| Stream Code | Complex Stream/Video Stream |
| Dual Stream Code | Main Stream: 1080P / 720P / D1 Extra Stream: D1 / CIF / QCIF |
| Audio Encoding Standard | G.711A |
| Audio Encoding Rate | 64Kbps |
| Data transfer and storage | |
| Video mode | Local, Remote |
| Recording Resolution | 1080p / 720p |
| Video Length | 1 – 120min (default: 60min) |
| Pre-record | 1 – 30sec |
| Record Mode | Manual / Alarm / Motion Det / Regular |
| Recording Priority | Manual > Alarm > Motion Det > Regular |
| Playback | 4 channels playback at the same time |
| File Storage | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next File, Previous File, Repeat |
| Backup Mode | USB / Network |
| File Format | DAV (transform to AVI when backup) |
| Functions | |
| Network Functions | TCP/IP, UDP, DHCP, UPNP,DNS, IP filter, PPPoE, DDNS, FTP, Email, Alarm sever, IP search |
| Remote Monitoring | Supports Web browser, Desktop Client, Mobile Client, Platform Management Software, CMS |
| Mobile Surveillance | iPhone, iPad, Windows Mobile, Blackberry, Andriod, Symbian |
| Motion Detect | Zones: 396 (22×18) Multistage sensitivity can be set |
| Snapshot | Support trigger snapshot |
| Alarm | Video loss, Motion detect, Disk no space, Disk error, Video cover, Local alarm, Exterior alarm |
| Trigger Events | Recording, PTZ movement, Tour, Alarm, Email, Screen output, Exterior alarm |
| External Alarm | 4CH input, 1CH output |
| Privacy Zones | 4 Zones |
| Communication Control | RS485, RS232 |
| Serial Communication | Supports Keyboard, Computer |
| Interface | |
| Video Input | 4CH SDI video input (BNC interface) |
| Video Output | 1x BNC (CBVS/Analogue) 1x VGA 1x HDMI output Support simultaneous output |
| VGA Output | 1CH, 1920×1080 / 1280×1024 / 1024×768 / 800×600 |
| HDMI/SDI Output | 1CH, 1920×1080 / 1280×1024 / 1024×768 / 800×600 |
| Audio Input | 4CH (BNC Interface) |
| Audio Output | 1CH (BNC Interface) |
| Talkback | Two-way talkbacks |
| Network | 10M/100M adaptive Ethernet port (RJ45) |
| USB | 2x USB2.0 ports (supports Wi-Fi / 3G dongles) |
| HDD | 2x SATA |
| Alarm Interface | 4CH input / 1CH output |
| Environment | |
| Operating Environment |
-20°C ~ 55°C |
| Power Supply | DC 12V / 3A |
| Power Consumption | 15W (without HDD) |
| Size | 360(W) × 250(L) × 44(H)mm |
| Weight | 2kg (without HDD) |
