NVR8IQ4K 8CH 8 POE IQ ANALYSIS 4K NVR H.265 2X HDD
Discontinued
Features
- Supports up to 4K camera resolution
- 8CH full real-time network video access, 1U NVR case
- H.265/H.264 dual-stream decoding, embedded linux operation system
- Support sync video recording, remote monitoring, backup
- HDMI output, support 2160P HD preview
- Support 12 times amplification preview and playback video, 8CH standard PoE
- Standard ONVIF, RTSP, GB28181 protocol
- Support DDNS, EMAIL, UPnP, NTP, P2P,etc
- Support FSAN SMART IPC (Target counting, object left/lost, area detection, line crossing detection)
- Support grouping disk quota, and disk inventory two storage pattern, distribute different video storage capacity or cycle according to different channels
- Support IPC centralized management, including IPC parameters configuration, import and export information, information real time acquisition and upgrade, etc
- Support channel grouping, preview round touring
- Network detection(network flow monitoring, network wireshark, network clear)
- Max 8CH sub-stream record sync playback and multi-channel sync play backward
- The new UI interface, support a key to open the video recording, Instant playback
- Dual password authentication and zero channel function
Specification
|
VIDEO |
|
|
Network video input |
8CH |
|
Network access bandwidth |
80Mbps |
|
Video compression |
H.265 /H.264 /MJPEG |
|
Video output 3840×2160@30HZ,1920×1080@60HZ,1280×1024@60HZ |
HDMI output |
|
Video preview mode |
16ch preview (Without local intelligence analysis ) |
|
Video bit rate |
16-16000Kbps |
|
Video resolution |
4K/5MP/3MP/1080P/960P/720P/D1/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
|
Image display |
1/4/6/8/9/16 image display |
|
Snapshot mode |
Support timing snapshot, manual snapshot, JPEG format |
|
Motion detection |
Support 396(22*18) surveyed area can be set in every screen and multi-level sensitivity adjustable |
|
Privacy mask |
Support 4 zones |
|
Intelligent detection |
Motion detection, video loss, video tampering, support FSAN SMART IPC intelligent function |
|
AUDIO |
|
|
Audio compression |
G.711u |
|
Audio input |
IPC complex audio input |
|
Audio output |
1CH, RCA interface |
|
Bidirectional talk input |
/ |
|
VIDEO RECORDING AND PLAYBACK |
|
|
Video frame rate |
1-30fps |
|
Record mode |
Manual/external alarm/MD/timing/intelligent analysis alarm |
|
Playback ability |
Support 1CH 4K/5MP/3MP; 4CH1080P 8CH sub-stream record sync playback |
|
Playback mode |
Instant playback, Local video, local image, External file playback |
|
Record search |
Time, calendar, event search, channel search(ANR, regular video, motion detection video, alarm video, intelligent detection video) |
|
Video playback |
Start, stop, normal play, back play, forward 30 seconds, backward 30 seconds, fast play(1-256X), slow play(1-1/32X), frame play, display the hidden progress bar, backup, snapshot, full screen, roller amplification time bar precise playback |
|
STORAGE AND BACKUP |
|
|
Storage interface |
2 SATA |
|
HDD capacity |
Single max.6T |
|
Disk grouping |
According to video channels to set HDD quantity |
|
Disk quota |
According to video channels to set HDD storage capacity |
|
Backup location |
Local, network |
|
Array type |
/ |
|
Backup method |
USB mobile hard disk, U disk, network backup |
|
ANR |
Support FSAN IPC(with TF card)ANR |
|
FUNCTION |
|
|
Network protocol |
TCP/IP, HTTP, HTTPS, DDNS, SMTP(SSL), DHCP, PPPoE, UPnP, NTP, P2P |
|
Interface protocol |
ONVIF, RTSP, GB28181 |
|
Protocol port |
ONVIF/RTSP/HTTP/HTTPS/RTMP port customized |
|
Mobile surveillance |
Support Apple, Android |
|
Web browser |
Support IE, Chrome, Firefox, Safari |
|
Display function |
Channel shortcuts: Instant playback, 3D positioning, show smart detection, show face detection, voice intercom, channel audio |
|
IPC timing |
Manual/Auto/Timing/Reconnect timing/IPC timing |
|
Alarm linkage |
Send email, audible warning (buzzer), alarm on monitor, upload to center, record, snapshot, preview, PTZ linkage |
|
Network detection |
Flow monitoring, network wireshark, network test |
|
User management |
User add, delete, modify, permission management |
|
Auxiliary users(secondary password protection) |
|
|
Manage IPC |
Modify IPC parameters, IPC upgrade |
|
Other |
/ |
|

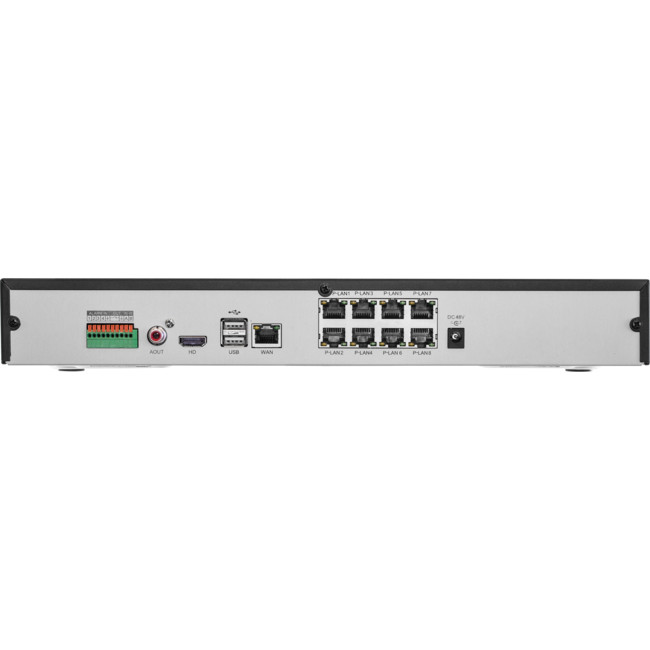

EXT INTERFACE |
|
|
Network interface |
1 RJ45 100M Ethernet port |
|
PoE interface |
8CH(IEEE 802.3af) |
|
Alarm input |
4CH |
|
Alarm output |
1CH |
|
RS-485 |
Support |
|
USB interface |
Rear panel: 2 USB2.0 |
|
GENERAL |
|
|
Power supply |
DC48V/3A(power plug specification optional) |
|
Power consumption |
<10W(Without HDD) |
|
Operation temperature/ humidity |
-10°C ~ 55°C/10?-90? |
|
Dimension(mm) |
360(L) x 242.4(W) x 48(H)mm |
|
Weight/PCS(g) (without HDD) |
2kg |
FAQ
CCTV Calculator Calculate everything!
Visit our NVR IQ Range knowledge base for tips, tricks, how-tos and videos!
Q: I have already installed the plugin on my computer, so why does it still say the IE ActiveX is not registered when I try to access the NVR/IPC via Internet Explorer?
A: You may have to check your security setting on your Internet Explorer, refer to the images attached.
In the box?
- NVR
- 48V 3A DC Power supply with detachable IEC lead
- USB Mouse
- HDD Connection Kit
- 2x SATA cable
- Molex power cable
- 8 screws
- Software CD
