Features

8 channel/4 PoE Network Video Recorder

• Standalone, Linux-embedded desktop NVR — no PCrequired
• Add and record upto 8 cameras simultaneously
• Provides PoE (Power Over Ethernet) to 4 cameras
• 2ch alarm input/1ch out
• RS485 for PTZ control
• H.264 dual-stream decoding
• Supports up to 5 megapixel camera resolution
• VGA & HDMI dual video output
• Remote access via smartphone, tablet, web browser orPC client
• ONVIF protocol support (for vast majority of third-party IP cameras)
• Advanced alarm trigger and alert setup with scheduling, motion detection and IQ analysis features
• Latest P2P technology allows viewing from anywhere in the world without configuring complicated Port Forwardingor expensive Dynamic DNS services! Simple QR code allows instant access from mobile phones using the free FSEYE app available for iOS and Android.
• 2 internal hard drive space (upto 6TB each)
• External backup via USB

New and Improved Features

The Doss IP NVRs are now smarter with baked in Intelligence features. On top of all that, they also now support higher resolution cameras!

Here’s what’s new with the IQ NVR range:

• New Graphical User Interface

  The layout and usability on the new NVRs have been greatly improved over their predecessor, making navigating and finding what you want a much easier experience.








• New IQ Features

  Smarter, more intelligent features mean the NVR does all thehard work and gives you the alerts you really need!



• Higher Resolution

  Move aside 1080p. We now support cameras up to 5MP. Higher resolution means better clarity!

IQ Analysis

With more and more people now turning to CCTV surveillance for their security needs, it’s no surprise that new technologies are being developed and implemented to help reduce the need for manual monitoring and the costs associated. One such strategy is the use of Intelligent Video Analytics (IVA).

The Magic of Intelligent Detection

IVA focuses on automating the video analysis of large amounts of data footage and security alerts, rather than having people monitor each camera manually. The software utilises a range of rules and algorithms to ignore any changes in lighting conditions or non-critical activity, and focus on specific triggers to identify suspicious behaviour and objects.

A good example of Analytics would be its ability to alert authorities of suspicious objects left in public places, like airports, and use facial recognition to help track down fugitives. It could also be used in Highway CCTV situations to capture and report a vehicle travelling in the wrong direction or performing an illegal turn. Even for the domestic home, Analytics could alert and monitor a trespasser crossing a property line.

With every aspect of our lives being digitised, video footage will be increasingly tagged to these events. Imagine a person scanning a train ticket at a turn style. The scanning of the ticket and the footage from the CCTV camera will get put together and be readily accessible in real time or a month later.

Specs

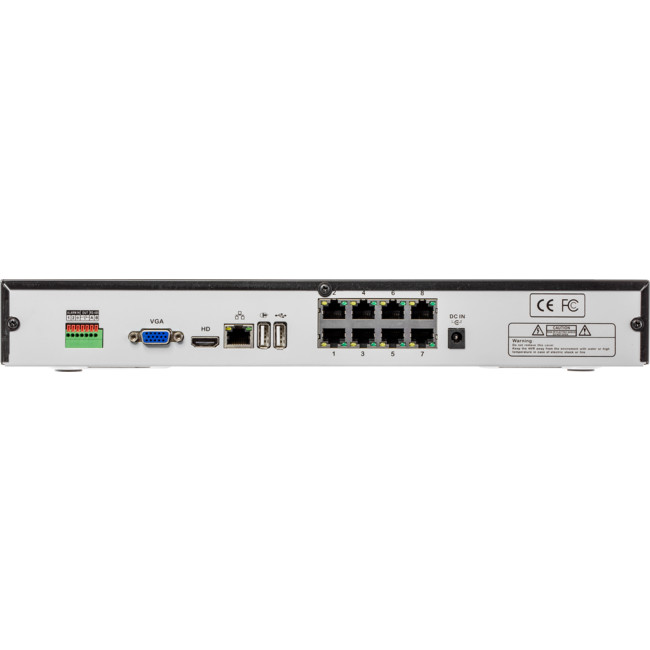

Rear Interface

• RJ45 LAN Port
• 8x POE RJ45 POE ports for cameras
• VGA output
• HDMI Output
• Terminal block for alarm input/output
• Terminal block for RS485
• 2x USB2.0 ports for mouse and external drives
• DC Power Input

Specifications

FAQ

CCTV Calculator Calculate everything!

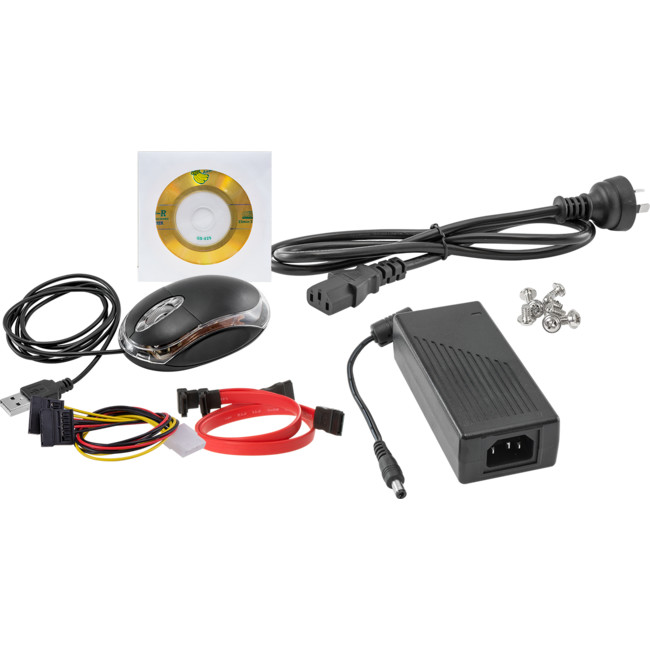

In the box?

• NVR
• 48V 3A DC Power supply with detachable IEC lead
• USB Mouse
• HDD Connection Kit
  • 2x SATA cable
  • Molex power cable
  • 8 screws
• Software CD

Videos

Watch NVR IQ Series Videos over at the Radio Parts YouTube channel.
