LCDP15B 60KG MEDIUM LCD PLASMA BRACKET

LCDP15B 60KG MEDIUM LCD PLASMA BRACKET

Downloads


Sell Sheet (1.6mb)

Doss Bracket Range PDF

A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
PDF file View the entire range of Doss Brackets

Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.

Class: Medium
Mount: Wall
Max Weight: 60 kg
Recommended TV Size: up to 65″
Compliance: Vesa, Universal
Vesa sizes (mm): 75 x 75
Universal mount (max): 440 x 320 mm
Tilt: FIXED
Turn: FIXED
Distance from Wall: 40 mm
Back Plate Dimension:
Material: Iron
Bracket Weight: 1.4 kg
Colour: Black
Warranty: 12 months

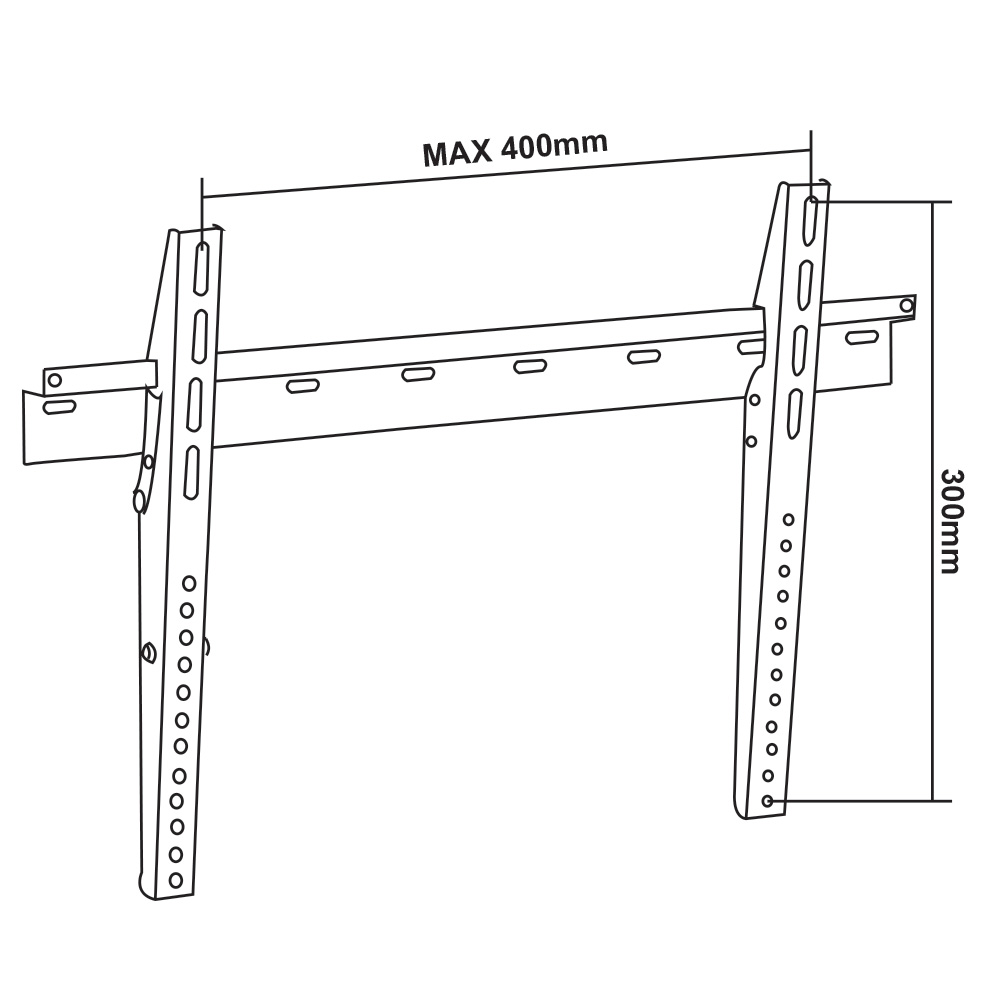

Line Drawing



Line drawing
Click on image to view larger version
