LCDP10B 75KG LARGE LCD PLASMA BRACKET

LCDP10B 75KG LARGE LCD PLASMA BRACKET

Downloads


Sell Sheet (1.6mb)

Discontinued

Doss Bracket Range PDF

A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
PDF file View the entire range of Doss Brackets

Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.

Class: Large
Mount: Wall
Max Weight:

75 kg

Recommended TV Size: up to 75"
Compliance: Vesa, Universal
Vesa sizes (mm): 75 x 75
Universal mount (max): 660 x 475 mm
Tilt: 15°
Turn: FIXED
Distance from Wall: 50 mm
Back Plate Dimension: 720 (W) mm
Material: Iron
Bracket Weight: 4.5 kg
Colour:

Black

Warranty: 12 months

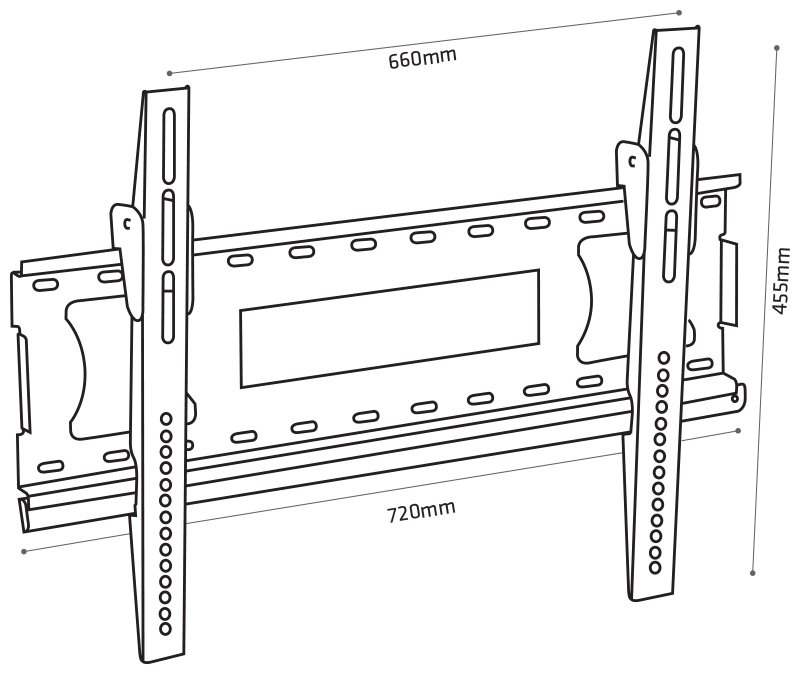

Line Drawing

Line drawing
Click on image to view larger version
