LCDCM2B 75KG LARGE LCD PLASMA CEILING

LCDCM2B 75KG LARGE LCD PLASMA CEILING

Downloads


Sell Sheet (1.6mb)

Doss Bracket Range PDF

A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
PDF file View the entire range of Doss Brackets

Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.

Class: Large
Mount: Ceiling
Max Weight: 75 kg
Recommended TV Size: up to 55″
Compliance: Vesa, Universal
Vesa sizes (mm): 75 x 75
Universal mount (max): 660 x 450 mm
Tilt: 15°
Turn: 360°
Distance from Wall: 600 – 700 mm
Back Plate Dimension:
Material: Iron
Bracket Weight: 9.5 kg
Colour: Black
Warranty: 12 months

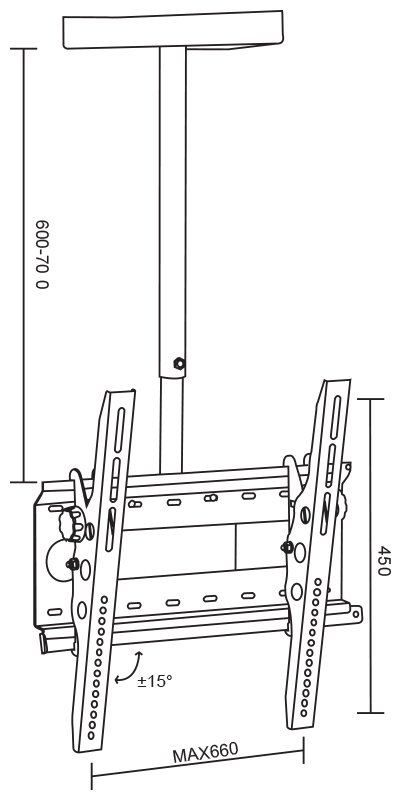

Line Drawing



Line drawing
Click on image to view larger version
