LCD06B SMALL LCD FLAT BRACKET BLACK
Doss Bracket Range PDF
A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
View the entire range of Doss Brackets
Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.
Ideal for Installers
This Doss bracket has been designed to be set up and ready to go right off the bat, allowing you to get the job done quicker and more efficiently.
This bracket has been packaged in a mainly pre-assembledstate, all you need to do is to mount the bracket to the wall and attach the TV! There’s no need to follow complicated instructions and waste time having to try to fitthe pieces together!
| Class: | Small |
| Mount: | Wall/ Single Stud |
| Max Weight: |
15 kg |
| Recommended TV Size: | 15" ~ 24" |
| Compliance: | Vesa |
| Vesa sizes (mm): | 50 x 50 75 x 75 100 x 100 |
| Tilt: | FIXED |
| Turn: | FIXED |
| Distance from Wall: | 35 mm |
| Back Plate Dimension: | – |
| Material: | Iron |
| Bracket Weight: | 0.35 kg |
| Colour: |
Black |
| Warranty: | 12 months |

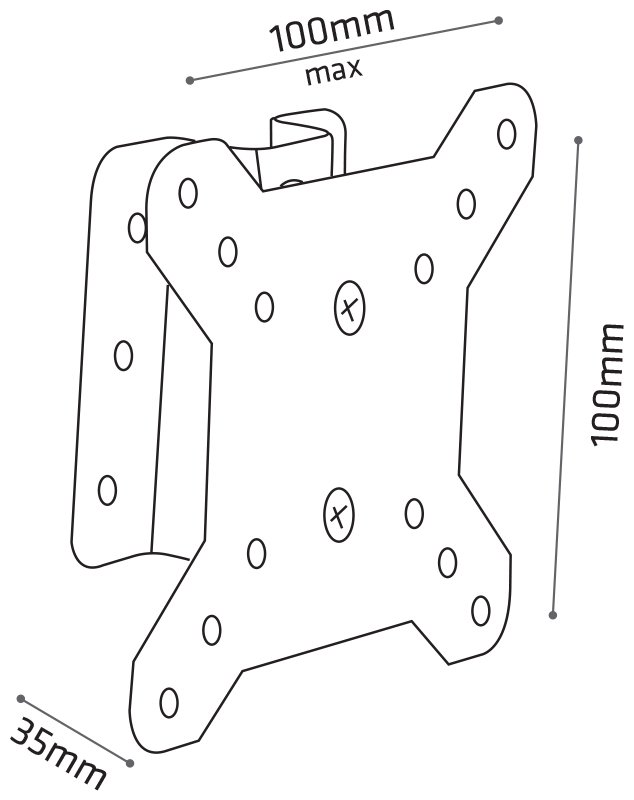

Line Drawing
Click on image to view larger version
