LCD03B 20KG SMALL LCD PLASMA BRACKET

LCD03B 20KG SMALL LCD PLASMA BRACKET

Downloads


Sell Sheet (1.6mb)

Discontinued

Doss Bracket Range PDF

A full range of brackets to mount your flat panel TV to yourdesk, wall or ceiling.
PDF file View the entire range of Doss Brackets

Take the guess work out of finding the right bracket that will match your TV. Doss brackets and mounts are extremely easy to install and include all required mounting hardware and fixings to get the job done.

Installer Series

Ideal for Installers

This Doss bracket has been designed to be set up and ready to go right off the bat, allowing you to get the job done quicker and more efficiently.
This bracket has been packaged in a mainly pre-assembledstate, all you need to do is to mount the bracket to the wall and attach the TV! There’s no need to follow complicated instructions and waste time having to try to fitthe pieces together!

Class: Small
Mount: Ceiling
Max Weight: 20 kg
Recommended TV Size: 15 ~ 22″
Compliance: Vesa
Vesa sizes (mm): 50 x 50
75 x 75
100 x 100
Tilt: 90°
Turn: 180°
Distance from Wall:
Back Plate Dimension:
Material: Iron
Bracket Weight: 0.90 kg
Colour: Black
Warranty: 12 months

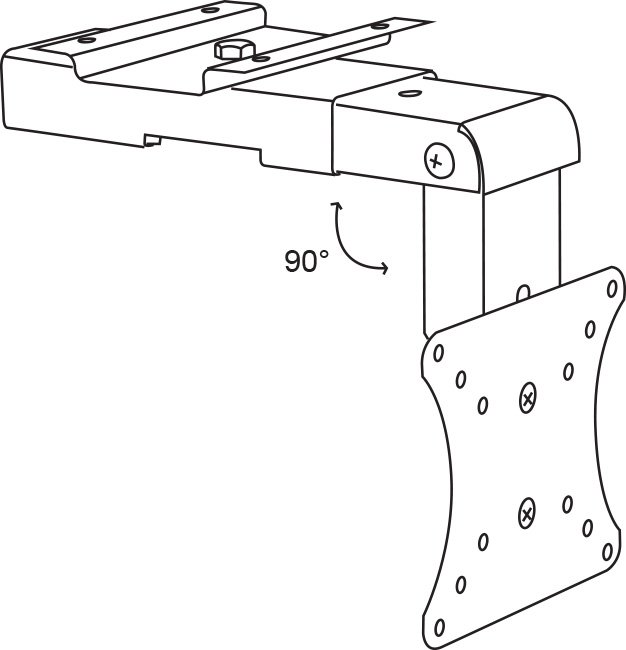

Line Drawing



Line drawing
Click on image to view larger version
