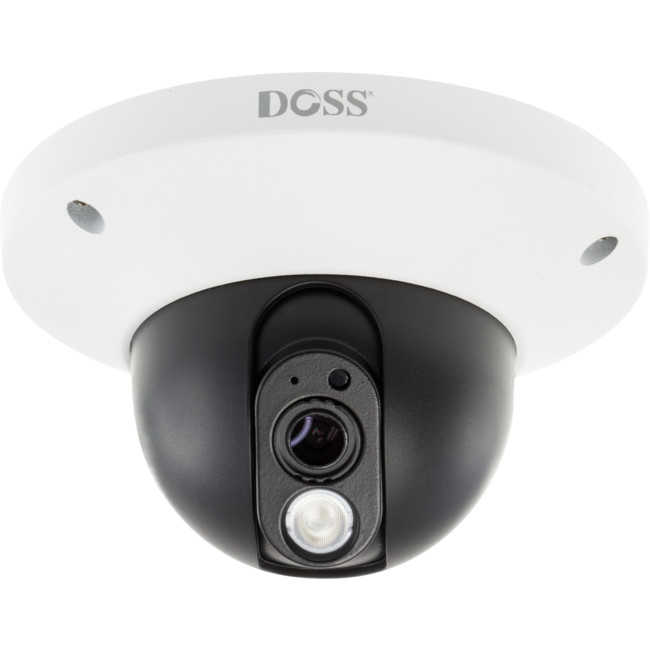

DMW15IPW FULL-HD WIDE DOME IP CAMERA
Discontinued
The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using an conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.
Features
- 1/2.8" Sony CMOS Sensor
- Hi3516C DSP
- h.264 / MJPEG encoding
- 1080P (Full HD) recording and viewing
- Conforms to ONVIF (Open Network Video Interface Forum) protocols (Profile S v2.2)
- Supports Power Over Ethernet (PoE)
- 3.6mm (2MP) lens
- Approx view angle (Horiz): approx 83°
- Dual stream
- Privacy zone
- IP65
- DC12V with PoE
Specifications
|
CAMERA
|
|
|---|---|
| Sensor | 1/2.8" SONY 2.43 Mega-pixel Progressive scan CMOS |
| Min. illumination | 0 Lux/ F1.4 (IR On) |
|
Electronic shutter
|
Auto / Manual (1/25 ~ 1/10000) |
| Day / Night | Auto / B / W / Colour / EXT ICR switching |
| Video Parameter | DWDR, Mirror, 3D Noise reduction, Sharpness/ Lightness adjustable |
| IR Range | 10~15m |
| IR LEDs | 1 x IR Array Leds |
| Adjustable IR Brightness | No |
| Lens | 3.6mm 2MP fixed Lens |
|
AUDIO / VIDEO COMPRESSION
|
|
| Video compression | H.264 |
| Encoding | Dual-stream, Main stream PAL: 1920×1080 25fps; NTSC:1920×1080 30fps |
| Effective pixels | 1920×1080 |
| Encoding System | Constant bit rate, Variable bit rate optional |
| Video Bit rate | 16kbps-8000kbps |
| Stream Type | Complex stream/ Video stream |
| Audio Compression | G.711A |
| Audio Bit rate | 64 kbps |
|
NETWORK FUNCTION
|
|
| Motion detection | Can be set to a single detection zone, Multi-level sensitivity can be set |
| Privacy zones | 4 zones |
|
Snapshot |
Support JPEG format, max. resolution based on encoding resolution |
| Password protection | Support |
| Character display | Support (Channel & Date) |
| Alarm function | Video loss, Network disconnect, Tampering alarm |
| Mobile surveillance | Web-browser, Apple, Android |
| Protocol | TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPNP, SMTP |
| Port protocol | I8, ONVIF |
|
INTERFACE
|
|
|

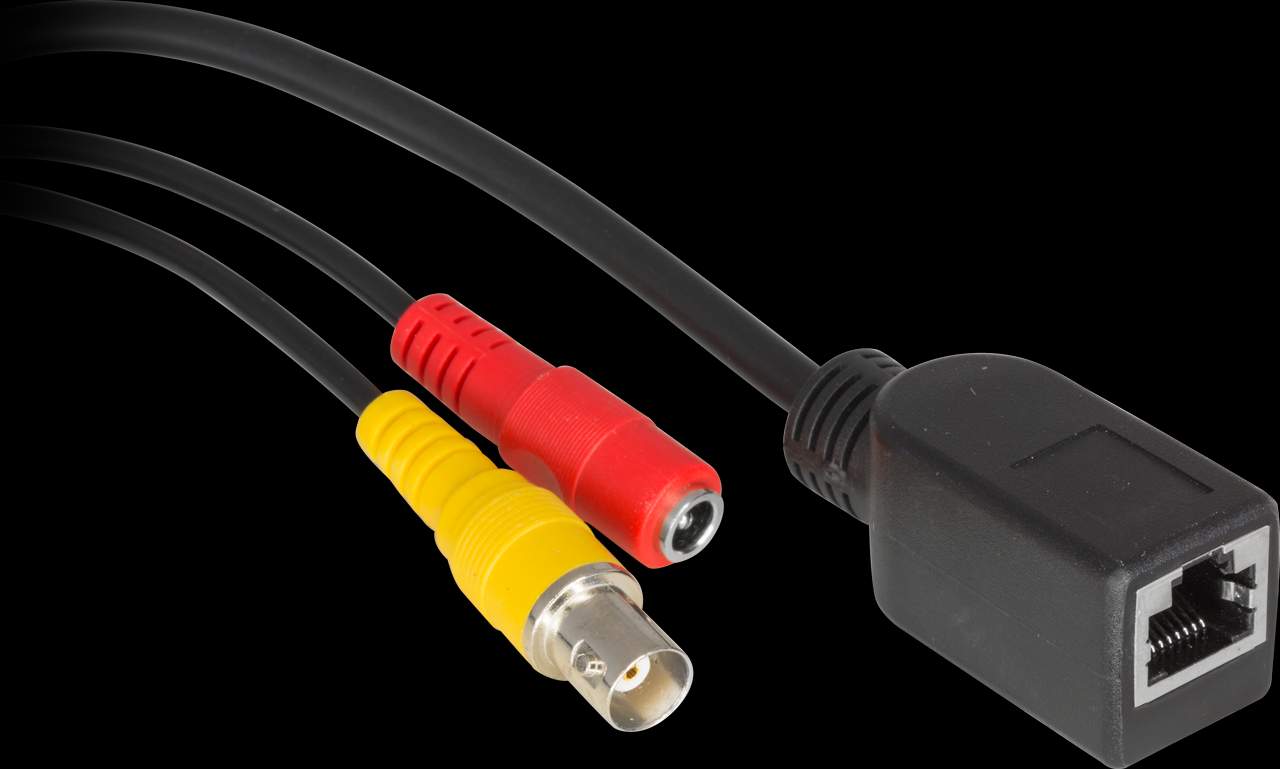

Network Interface |
RJ45 10M / 100M adaptive |
|
Analog video output |
1CH CVBS analog video output |
|
GENERAL
|
|
|
Operating Conditions
|
-10°C ~ 55°C |
| Protection Level | IP 65 |
| Power Supply | DC12V / PoE |
| Power Consumption | <6W |
| Dimensions | Ø100 x 62mm |
|
Weight
|
1.1kg |
FAQs
- Can I use a DOSS IP camera with my NAS?
-
If your NAS has NVR functionality that is compatible with the ONVIF
protocol then yes. Our DOSS IP cameras have been tested fine with Synology Surveillance Station and QNAP VioStor NVR. By default, you can find the ONVIF protocol is accessed on port 8000 for all DOSS IP cameras.
“Complete Setup” for adding a camera to Synology NVR App
