IN50IPB4M BULLET 2.8-12MM LENS 4MP 50M POE IP CAMERA – BLACK

IN50IPB4M BULLET 2.8-12MM LENS 4MP 50M POE IP CAMERA – BLACK

Additional Images

43160802

Features

  • Sony 1/3" 4 Mega pixel Progressive Scan CMOS Sensor
  • Max resolution 4Mega (2592×1520 @ 20fps)
  • 2.8-12mm motorized vari-focal lens
  • 92° to 28° view
  • Built-in intelligence
  • H.265 encoding Compared to H.264, the new H.265 encoding on the Doss CCTV cameras provide 40-50% reduction in bit rate. Which means you get to store more footage without sacrificing video quality!
  • Support Smart IR, prevent IR overexposure at night
  • DSP: HI3516D+IMX123
  • 40-50m IR (3x IR Array LEDs)
  • Easy setup remote viewing for PC, Mac, iOS, and Android
  • PoE (Power over Ethernet) &DC12V
  • SNR: =35db
  • Support corridor mode, increase the monitoring area in longitudinal strip environment
  • Support Micro SD card (128G) local-storage

Built-in intelligence

The new Doss cameras are smarter. Real smart. Whether you want to make sure a particular object has been removed or not or whether you need to know if a fire has started or not, the new Doss IQ range cameras have it all.

Here are some of the intelligent analysis baked into the cameras:

  • Target counting
  • Area detection
  • Object detection
  • Virtual Guard

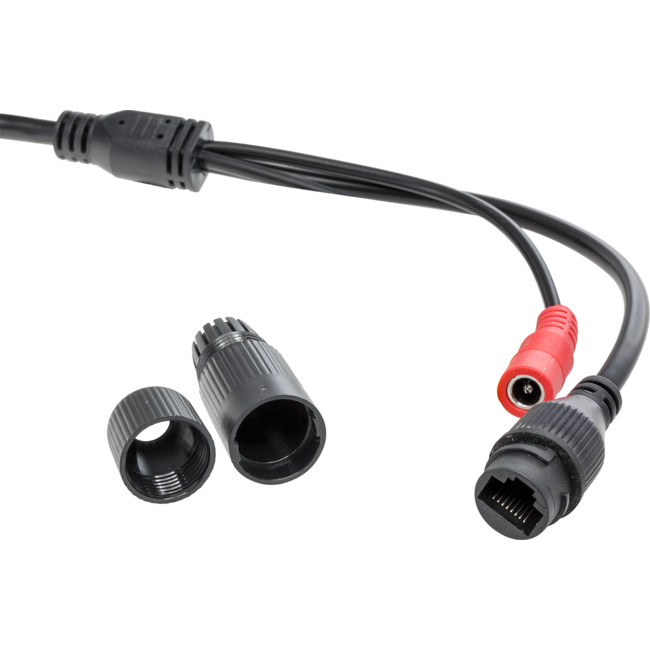

Connections

  • [DC] 12V DC power input
  • [RJ45] Ethernet port
  • [BNC] Analogue video out

High Resolution – See more!



Specifications

CAMERA
Image sensor 1/3" 4MP Progressive Scan CMOS
Min.illumination 0Lux/F1.4(IR on)color: 0.5Lux/F1.4, B/W:0.2Lux/F1.4
IR distance 40-50M(3xIR-III  Leds)
Electronic shutter Auto/ Manual(1/25~1/10000), FLK
Day/ Night ICR switch, auto, colour, B&W, ext
Lens Motorised 2.8-12mm auto lens
Lens interface F14
S/N ratio =35db (AGC OFF)
Output  PAL/NTSC adjustable
WDR DWDR(Off/Low/Middle/High)
Light board control Auto/Manual/Off
3D N/R Off/Low/Middle/High/Higher
Defog Off/Low/Middle/High
Mirror Off/Horizontal/Vertical/180º rotation/Corridor mode (90º rotation,270º rotation)
Slow Shutter Off/On
Exposure control Auto/Manual
Image setting Brightness, Contrast, Saturation, Sharpness, Hue
AUDIO/VIDEO ENCODING
Video compression H.265/ H.264/ MJPEG
H.265 Encoding  Main Profile
H.264 Encoding  BaseLine/ Main Profile/ High Profile
Encoding features NTSC: main stream: 2592*1520 @20fps/2560*1440@25fps, sub-stream: VGA@30fps

Max. Resolution 4M(2592X1520)
Video bit rate Constant bit rate, variable bit rate (16kbps~8000kbps)
Video type Complex stream/ Video stream
Audio compression /
Audio bit rate /
Audio control Support input/ output volume gain control
ROI  Support 4 zones,multi-stage level
Watermark function /
NETWORK
Network protocol TCP/IP,UDP,HTTP,DHCP,RTSP,DDNS,NTP,PPPoE,UPnP,SMTP
Access protocol ONVIF,GB28181 (optional)
Browser Support IE, Chrome, Firefox, Safari
Video preview meanwhile 4
User permission User add/modify/delete, permission
management
Safe mode Authorized user name and password, HTTPS encryption and AES link encryption, RTSP verification
Motion detection Set detection zone, Multi-level sensitivity can be set
Tampering alarm 1 zone
Privacy Mask 4 zones
Intelligent analysis Target Counting, Area Detection, Left/ Lost, Line Crossing
Event linkage Email sending, alarm output linkage, preset linkage
Multicast function Support
ANR /
Mobile surveillance Support Apple, Android
Device exception detection Support network disconnected, IP conflict, illegal access alarm
OSD Title, time and date overlay, multi-line OSD, OSD color optional
DST Support
Snapshot Support snapshot, snapshot resolution is encoding resolution
System update Support remote update
Other /
INTERFACE
Network Interface RJ45 10M/100M network adaptive
Analog video output 1CH 1.0Vp-p Composite video output
Audio  /
Alarm input /
Alarm output /
Reset /
RS485 /
TF card Support Max 128G, Micro SD(SDHC /SDXC) card local-storage
Other /
GENERAL
Operating temperature -20°C ~ 55°C
Operating humidity 0?-90?
Protection grade IP66
Power supply DC12V /PoE  optional
PoE   Optional
Power consumption (max) <9W
Dimensions(WHL) 92.85×95.5×262.82mm
Weight/PCS(g) /
