HBD4DVRV3 – 4CH HYBRID 5 IN 1 NETWORK DVR 1080P ANALOG AHD CVI TVI IP
Discontinued
Features
Doss new AHD (Analogue High Defenition) series DVR is a new HD solution for analogue CCTV system. It could work with analogue, Analogue HD and even IP cameras. It enables you to play back video, record what the cameras see, and remotely control the AHD series DVR system simultaneously!
AHD lineage sd transmission way and the method of analog, can reduce the complexity of the construction deployment, reduce the complementary material cost and the complexity of maintenance, as well as the technical requirements of construction personnel. Very suitable for the old system upgrade, but without changing the original system, on the basis of the standard definition easily upgrade to hd.
This version has two slots for HDD, perfect for supporting more storage if needed.
Features
- Working with 4CH 2M AHD Cameras
- H.264 dual-stream, embedded linux operation system
- Sync video recording, playback, remote monitoring, backup
- VGA/ HDMI sync output, support 1080P HD preview
- 15 times electronic zoom preview and playback video image
- EXT alarm, bi-directional talk
- DDNS, EMAIL, UPNP, NTP and P2P
- WEB, Mobile viewer, Client and CMS
Specifications
| Video | ||
| Video input | 4CH*2MP(BNC)@4main Play 2CH*4MP(BNC1,BNC4)@2main Play 4CH*2MP(BNC)+4CH*2MP(IPC)@4Sub-Play/1main Play 2CH*4MP(BNC1,BNC4)+2CH*4MP(IPC)@2Sub-Play/1main Play |
|
| Video compression | H.264 | |
| Video output | VGA/ HDMI sync output | |
| 1920×1080, 1440×900, 1280×1024, 1366×768, 1024×768, 800×600 | ||
| Stream Type |
4 x [1920*1080] + 4Play 4 x [1280*720] + 4Play 4 x [960*576] + 4Play 4 x [1920*1080] / IP4 [1920*1080] + 4Sub_Play/ 1 Main_Play 4 x [1280*720] / IP4 [1920*1080] + 4Sub_Play / 1Main_Play 4 x [960*576] / IP4[1920*1080] + 4Sub_Play / 1Main_Play |
|
| Video bit rate | 16 – 8000Kbps | |
| Image display | 1/ 4/ 6/ 8/ 9 | |
| Snapshot | Support (BMP) | |
| Motion detection | 396 (22*18) surveyed area can be set in every screen and multi sensitivity adjustable | |
| Audio | ||
| Audio compression | G.711A | |
| Audio input | 4CH, RCA port | |
| Audio output | 1CH, RCA port | |
| Audio talkback | / | |
| Video recording and play back | ||
| Video frame rate |
4CH mode:1080P@15fps, 720P@25fps(PAL)/30fps(NTSC) real-time, analog/IPC@25fps(PAL)/30fps(NTSC) real-time. 2CH mode: 4MP@15fps, 3MP@10fps, 1080P@25fps(PAL)/30fps(NTSC) real-time,720P@25fps(PAL)/30fps(NTSC) real-time, analog/IPC@25fps(PAL)/30fps(NTSC) real-time. |
|
| Record mode | Manual/ Alarm/ Motion Detection/ Schedule | |
| Local playback | 2CH/ 4CH sync playback | |
| Search method | Time, calendar, event, channel | |
| Video playback | Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification time ball precise playback | |
| Storage and Backup | ||
| Interface | 2 SATA | |
| HDD capacity | Single largest 6TB for each. | |
| Record saving | Local HDD, network | |
| Backup method | Network backup, USB storage device, USB recorder | |
| Function | ||
| Network protocol | TCP/ IP, HTTP, DDNS, SMTP(SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF | |
| Interface protocol | Onvif, RTSP, I8, I9 | |
| Mobile surveillance | Support Apple, Android | |
| Internet explorer | Support IE, Chrome, Firefox, Safiri | |
| Intelligent detection | Motion detection, video loss, privacy mask | |

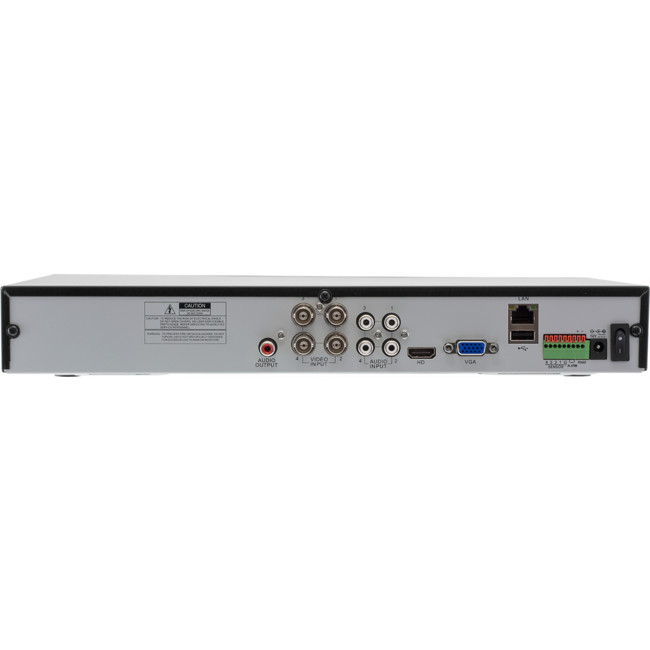

| External Interface | ||
| Video input | 4CH BNC port (1.0Vp-p,75O) | |
| Network interface | RJ45 10M/ 100M adaptive ethernet port | |
| Alarm input | 4CH | |
| Alarm output | 1CH | |
| RS-485 | 1 RS485 port | |
| USB port | 2 USB2.0 | |
| ESATA | / | |
| General | ||
| Power supply | DC12V/ 4A (Included) | |
| Power consumption | <10W(Without HDD) | |
| Operation temperature | -10°C ~ 55°C | |
| Dimension(mm) | 360 (L) * 262 (W)* 48(H) | |
| Weight | 1.5 Kg | |
CCTV Calculator In the box
- DVR
- 48V 4A DC Power supply with detachable IEC lead
- USB Mouse
- HDD Connection Kit
- 2x SATA cable
- Molex power cable
- 8 screws
- Software CD
What you need to know for new CCTV installations
Cameras
- What does each camera need to see? i.e. how far, how wide, how much detail?
- What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
- How will it be mounted, and are there any style considerations?
DVRs
- How many cameras does it need to monitor, allowing for any expansion?
- Do you need full D1 (576 line) recording on all channels?
- How many days of recording at what quality needs to be stored?
Cabling
- Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?
Power
- Will you supply power locally to each camera, or have one central supply?
- What size of UPS do they need?
- Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?
Networking & Remote Access
- Does your customer want to view their cameras remotely?
