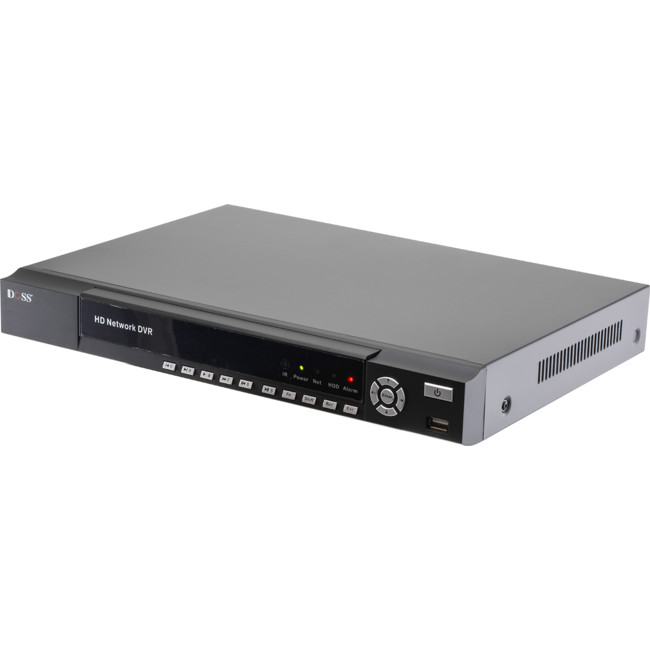

HBD16DVRV3 16CH 1080P ANALOG AHD CVI TVI IP HYBRID 5IN1 NETWORK DVR
Features
Features
- 16 CH hybrid HD 5 in 1 DVR, 2HDD position 1U case
- Embedded Linux operation system, H.264 dual-stream decoding
- 16CH Coaxial HD+16CH IP Camera sync access
- Auto recognition HDCVI/HDTVI/AHD/CVBS five mixed signal access
- Support max 1/4/8/16CH sync playback and sync run backward
- Support main stream and sub stream sync video
- Support synchronic video, playback, remote monitoring, backup
- VGA/HDMI sync output, support 1080P HD preview
- Support DDNS, EMAIL, UPNP, NTP, P2P
- Support WEB, mobile viewer, Client, CMS
Read our new, dedicated NVR Frequently Asked Questions page! If you’re having troubles with your NVR, perhaps you can find a solution here!
Specifications
Specifications
| Model | 16CH HYBRID 5 IN 1 NETWORK DVR |
| VIDEO | |
| Video Input | 16CH*3MP(BNC);8CH*4MP(BNC1,2,5,6,9,10,13,14); 16CH*3MP(BNC)+16CH*3MP(IPC);8CH*4MP(BNC1,2,5,6,9,10,13,14) |
| Video compression | H.264 |
| Video Output Resolution | 4MP/3MP/1080p/960p/720p/D1/2CIF/DCIF/2CIF/CIF/QCIF |
| Video Output | VGA/HDMI sync output, 1920*1080, 1440*900, 1280*1024, 1366*768, 1024*768, 800*600 |
| Bit Rate | 16 – 8000Kbps |
| Image Display | 1/4/6/8/9/16/20/25/36 |
| Snapshoot | Support (JPEG) |
| Motion Detection | 396 (22*18) surveyed area can be set in every screen and multi sensitivity adjustable |
| AUDIO | |
| Audio Encoding | G.711A |
| Audio Input | 4CH |
| Audio Output | 1 CH |
| Talkback | — |
| VIDEO RECORDING AND PLAYBACK | |
| Video Frame Rate | 8CH mode: 4MP@15fps;3MP@10fps;1080P@25fps(PAL)/30fps(NTSC) real-time; 720P@25fps(PAL)/30fps(NTSC) real-time; Analog/IPC@25fps(PAL)/30fps(NTSC) real-time.
16CH mode: 3MP@15fps;1080P@15fps;720P@25fps(PAL)/30fps(NTSC) real-time; Analog/IPC@25fps(PAL)/30fps(NTSC) real-time. |
| Record Mode | Manual/ Timing MD/ Regular/Alarm exception/MD or alarm/MD and alarm |
| Playback Synchronic | Analog 4CH/Mixed 1CH main stream sync playback 4CH/8CH sub stream sync playback |
| Search Method | Time, Calendar, Event, Channel |
| Video Playback | Start, Stop, Fast play, Slow play, Frame play, Snapshoot, Full screen, Roller amplification time ball precise playback |
| VIDEO BACKUP | |
| Interface | 2 SATA |
| HDD Capacity | Single largest 6T |
| Backup location | Local HDD, Network |
| Backup Method | Network, USB storage device, USB recorder |
| Network Protocol | TCP/IP, HTTP, DDNS, SMTP, DHCP, PPPOE, UPNP, NTP, P2P, ONVIF |
| EXT INTERFACE | |
| Network Interface | RJ45 10M/ 100M/ 1000M adaptive Ethernet port |
| Alarm Input | 8 CH |
| Alarm Output | 3 CH |
| RS-485 | 1 RS485 |
| USB Port | 2 USB2.0 |
| GENERAL | |
| Operation Temp And Humidity | -10°C ~ 55°C/10?-90? |
| Power supply | DC12V/5A |
| Power Consumption | 35W(Without HDD) |
| Unit Dimension(mm) | 360(L) x 242(W) x 48(H)mm |
| Weight | 1.5 Kg |

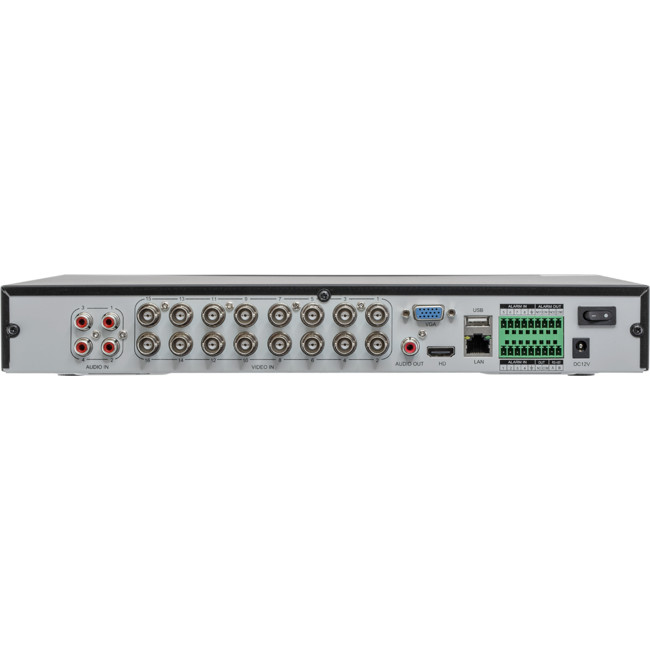

Interface
- BNC Video Output
- Audio Input
- Audio Output
- HDMI Video output
- VGA Video output
- RJ45 port
- USB 2.0
- DC12V Power Supply
- Alarm Input
- Alarm Output
- RS485
- Power Switch

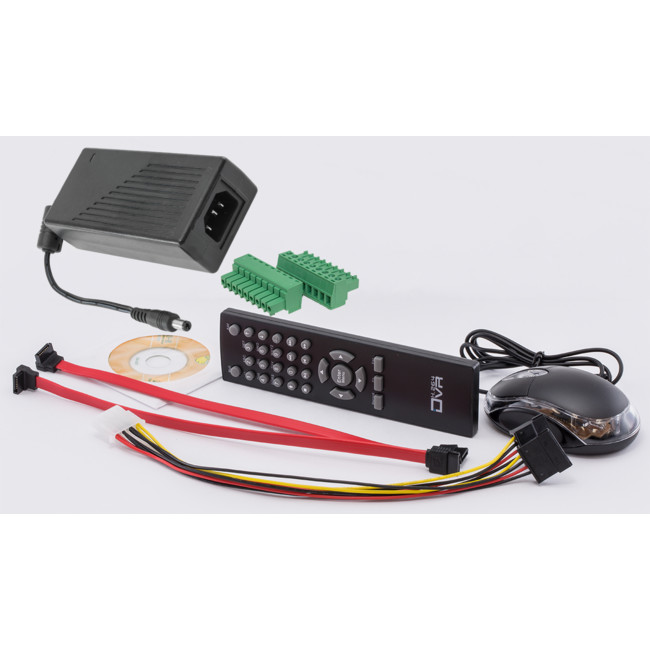

CCTV Calculator In the box
- DVR
- 48V 3A DC Power supply with detachable IEC lead
- USB Mouse
- HDD Connection Kit
- 2x SATA cable
- Molex power cable
- 8 screws
- Software CD
