GL001H HI PERFORMANCE VIDEO GROUND LOOP ISOLATOR

Discontinued

Video Ground Loop Isolator could reduce “Ground Loop Interference” with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable betweenpoints with different ground potentials, differences in ground potentials are typically caused by unbalanced powerline loads.

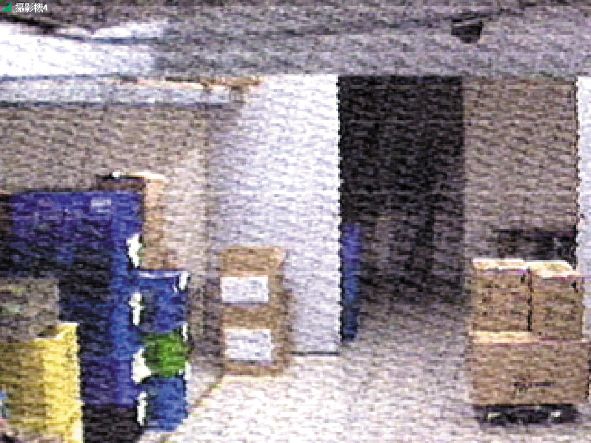

Before

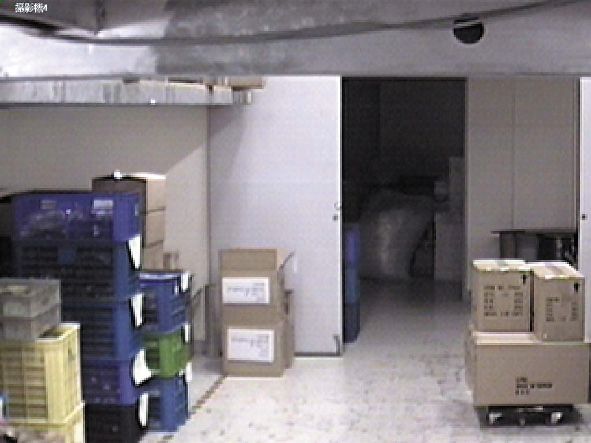

After

Features

  • BNC male to BNC female with mini cable 15cm on both sides.
  • Passive type, no power needed.
  • Hi Performance to eliminate ground loop problem.
  • Low video loss , Bandwidth: 20hz -11Mhz ,+0/-3Db
  • Prevents video-signal distortion caused by video ground loops.
  • Eliminates picture tearing, cross talk and rolling.
  • Prevents power cables laid by others interfering with the CCTV system.



Specifications

  • Insertion Loss: <0.5dB
    • Bandwidth : 20Hz -11MHz, +0/-3dB
    • Input Resistance: 75 ohm
    • Output Resistance: 75 ohm
    • Ground loop rejection: >90dB @>50Hz
    • Isolation Voltage 600VDC (Min)
    • Insulation Resistance: 100m Ohm
  • Transient Voltage Suppressors: 12 Vrms
  • Dimensions (mm): 28×26.5×73 with 15cmx2 cable
  • Material: ABS Black
