Features

  • Quickly trace and identify cables among lots of unknowncables.
  • Check continuity of Lan cables.
  • Track the cables or wires, and diagnose the breakage.
  • Visible indication: pin-to-pin cable map for individualcable (not by pairs).
  • Low Voltage alarm function.
  • Earphone permits use in noisy environments.
  • LED light assists use in dark corners.

Specification

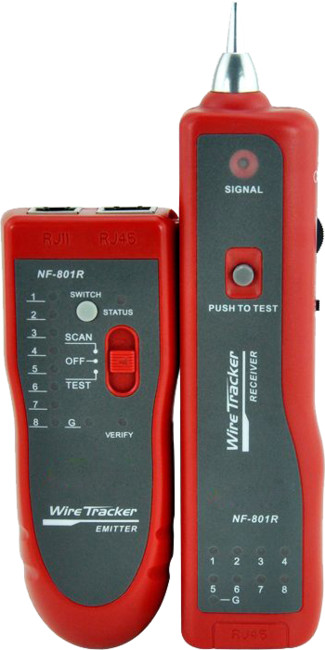

NF-801 Transmitter specifications
Tone frequency 200Hz
Max. distance of transmission Up to 2 kilometers
Max. working current Less than 10mA
Volume Regulate Function Audio volume level control
Tone mode 2 Tones, adjustable
Compatible connectors RJ11,RJ45
Max. signal voltage 8Vp-p
LED lights display Wiremap, tone, tracing
Voltage protection AC 60V/​DC 42V
Battery Type DC9.0V battery x 1pc
Dimensions (LxWxD) 15 x 3.7 x 2cm
NF-801 Receiver specifications
Frequency 200kHz
The Max. working current Less than 30mA
Earphone jack 1
Battery Type DC9.0V (NEDA 1604/​6F22) x1pc
Dimensions (LxWxD) 12.2 x 4.5 x 2.3cm
