NF8601W
44365140
Features

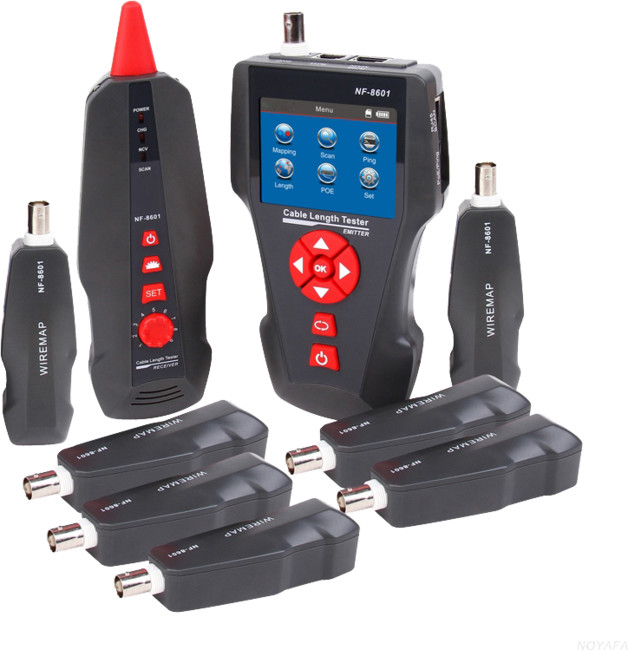

Doss new multifunction cable tester is a handy on-site testing tool. It has RJ45, RJ11 and BNC ports for your ease to test all types of cables on-site with this one tool and it does PING test and PoE test for you as well !
- POE testing
- PING testing
- Testing open, short or cross connection
- Performing crosstalk test on network cable
- Measuring length of network cable, coaxial cable and telephone cable
- TF function enables data tranfering between unit and computer
- Locating breakage and short circle position
- Voltage detector build in receiver end (50-1000V)
- 8 Remote units come with the kit
Specifications
Transmitter Specification
|
|
LCD Screen | 60 x 45mm |
Tone Frequency | 130kHz |
Testing Cable Length | <2000m |
Trace Cable To Switch Connection | Anti-jamming |
Tone Mode | 2 Tones adjustable |
Compatible Connectors | RJ11, RJ45, BNC |
Battery Type | Lithium Battery |
Dimensions (LxWxD) | 185x80x32 mm |
Receiver Specifications
|
|
Frequency | 130kHz |
Max Working Current | 70mA |
Earphone Jack | 1 |
LED Illumination | 2 LEDs |
Battery Type | Lithium Battery |
Dimensions (LxWxD) | 218x46x29mm |
Remote Unit Specifications
|
|
Compatible connectors | RJ11, RJ45, BNC |
Dimensions (LxWxD) | 107x30x24mm |
Number of Remote Units | 8 |
