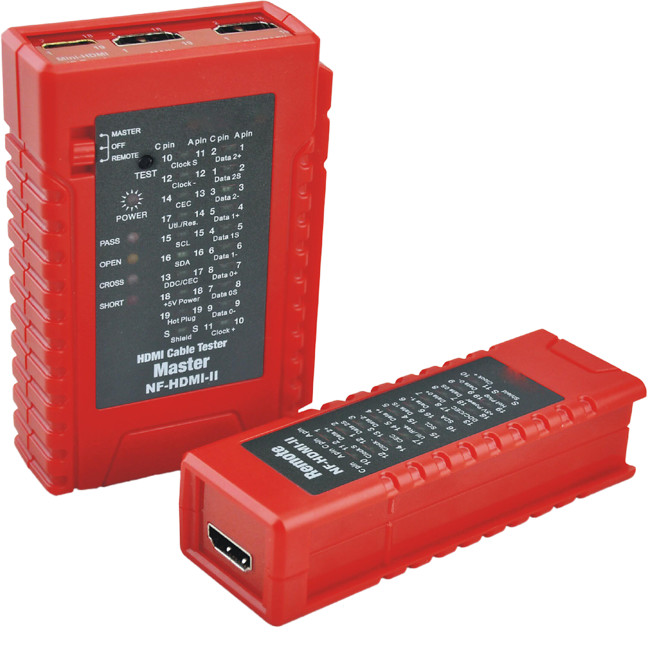

The HDMI Cable Tester is designed for professional HDMI installations. This portable device allows installers to quickly test, troubleshoot and verify HDMI cables. It is designed to test wire circuit state of HDMI cables with TypeA & C connectors conforming to all HDMI specifications up to version 2.0. Equipped with 3 test modes: Fast Auto Scan, Slow Auto Scan or Manual (step-by-step). This tool caneither test the conductors in straight, short, open and crossover in all RGB conductors.
- Fast and accurate verification with type A-A, A-C, C-A and C-C connectors
- Test fragile, easily damaged HDMI patch cords and in-wall HDMI cables
- Quickly troubleshoot and verify HDTV installation and DIY termination in the field
- Test disorder, short, open and cross status of HDMI cables
- Mapping continuity and proper configuration
- 19 pins and grounded connection and 4 status LEDs
- Capable of checking wiremap only with master unit
- Adjustable test modes: Fast/​slow scan / manual test for step-by-step
- Design with loopback function
Specifications
Cable Tested | HDMI cables with Type A & C connectors conforming to 1.1, 1.2, 1.2a, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a Category 1 and Category 2 cables |
Support test (main unit and remote unit) | 19 pin-to-pin wire map and shielding detection |
Test interface of Master unit |
HDMI (type A)
Mini HDMI (type C) |
Test interface of Remote unit |
HDMI (type A)
Mini HDMI (type C) |
Test Cable length | ≤ 50 metres |
Test Mode |
Automatically fast scan
Automatically Slow scan Manual |
Displays | 19 LEDs and shield LED on both main and remote unit |
Result indication | Beeper sound |
Low battery indication | Under 6V |
Power source | 9V battery (no included) |
FAQ
- Why my continuity test always showing short?
- Please make sure cable is looped back to main unit when doing continuity test. Remote unit is only to be used for sweep testing.
