NF3468
44365110

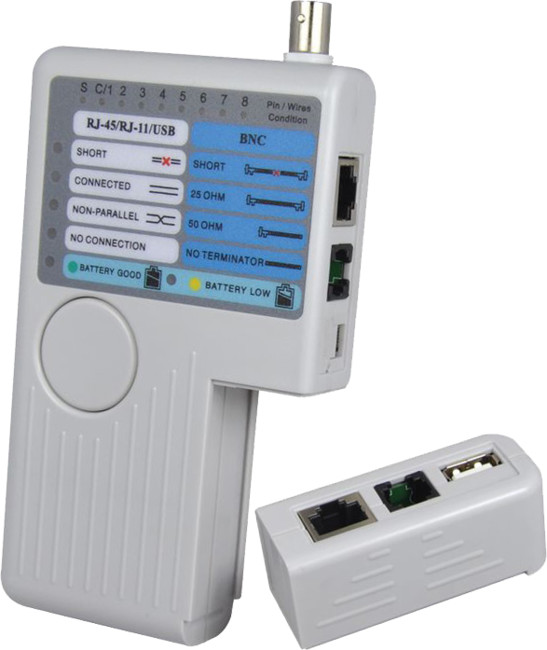

The 4 in 1 Cable Tester tests 4 common LAN and Computer cables. It tests installed cables or patch cords with RJ-45,RJ-11,USB and BNC connectors. It is used to test faulty cables such as open, cross cables, short-circuit or crosstalk.
Features
- Tests shielded (STP) or unshielded (UTP) LAN cables
- Test shields in 1394 and USB cables
- Ergonomic portable handheld design
- Tests installed wires and patch cables
- Remote unit stores in Main unit
- 180m test distance (RJ-45/RJ-11/BNC)
- Simple one button test
- LEDs indicate connections and faults
- Beeper provides audible annunciation of test results
Specifications
Cable tested |
UTP/STP LAN cables terminated in RJ-45 connectors (EIA/TIA 568)
RJ-11 cables with connectors, 2 to 6 conductors installed 1394 Cables with Type 1 plugs on both ends USB cables with Type A flat plug on one end and type B square Plug on other end BNC cables with connectors |
Faults Indicated |
No Connection
Shorts Opens crosses |
Low battery indicator | LED lights to indicate low battery |
Battery | 9V Battery (not included) |
Dimension | 7.25×4.0×1.0 inches (L×W×H) |
Weight | 202g (Without battery) |
