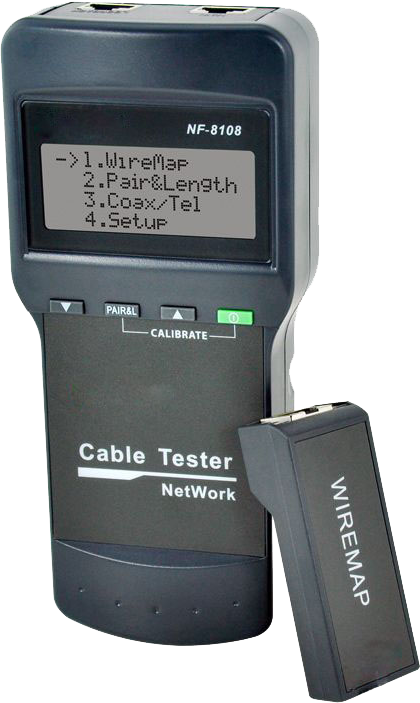

NF8108
44365105
The NF8108 comes with a main tester and remote identifiers. It is especially designed to check and test network cable, such as open, short and reserve. NF8108 can also test cable length accurately which make it becomes an essential tool in communiction field.
Features
- Measure network cable length and determine the distance of open and short circuit.
- Portable unit with long battery life (wait-case 50 hours).
- Automatically time-delay shut off.
- Self-checking and automatically compensate any change inbattery capacity or ambient temperature.
Specifications
Transmitter | |
Indictor | LCD 53×25 mm |
Tone frequency | 225Hz |
Max. distance of cable map | 300m |
Max. working current | Less than 70mA |
Compatible connectors | RJ45 |
Faults LCD display | LCD display |
Low battery display | LCD (6.5V) |
Voltage protection | AC 60V / DC 42V |
Battery Type | DC 4×1.5V |
Dimension (LxWxD) | 184x84x46mm |
Remote unit | |
Compatible connectors | RJ45 |
Dimension (LxWxD) | 78x33x22mm |
