NF868W
44365100

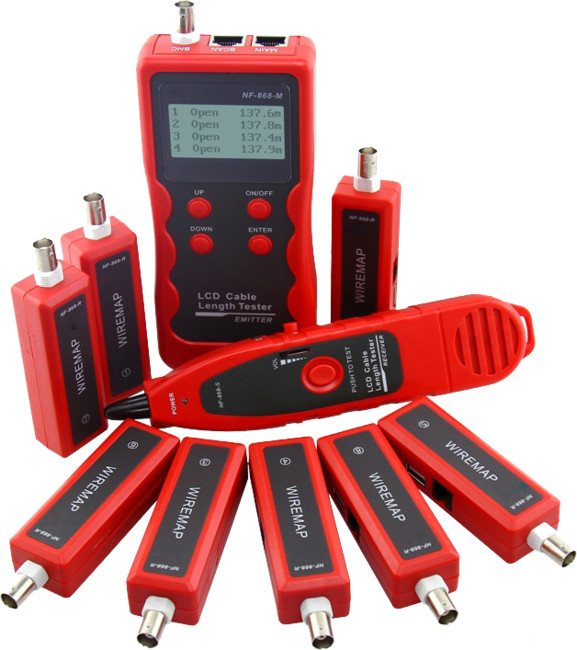

The equipment has three parts, including main tester, receiver and remote identifier. It has couples of circuit state testing functions including cable length test, cable line finding, line-to-line, crosstalk and breaking point, serving as a practical tool for low voltage system installation and wiring circuits testing.
Features
- Test open, short, cross connection, reverse, pairing connection and broken wire positioning
- To conduct crosstalk test on network cable to solve the problem such as slow speed
- 8 remotes units with ID1-ID8 to quickly indentify the target wire or cable
- Measure length of network cable, coaxial cable, telephone cable and USB cable up to 2,000m
- Locate the short circuit position
- Remote unit with tone when checking wiremap
- Buit in storage and memory
- Automatic delay power on-off and backlight
- LED lights enbale you to test in a dark enviroment
Specifications
Display | 53x25mm |
Testing cable types | STP/UTP Cat 5E / 6, telephone cable, coaxial cable, USB cable and common metal wires connected with alligator clip |
Testing device interface | Main unit: RJ45 Main), RJ45 (Scan), loop interface, RJ11, BNC plug, USB B-type socket |
The Max. distance of tracing cable |
Electrified wire:3000m
Non-electrified wire: 2000m |
Calibration precision | 2% (±0.5m) |
Line sequence and cable failure positioning | Open, short, reverse, cross, crosstalk |
Tone frequency | 225Hz |
The Max. distance of cablemapping | 2500m |
The Max. distance of cable length testing | 1000m |
Trace cable coonected to switch | Anti-jamming |
Tone mode | 2 Tones, adjustable |
Compatible with connectors | RJ11, RJ45, BNC, USB-B |
LED lights display | Wiremap, tone, tracing |
Cable map indication | LCD (#1- #8) |
Shielded indication | LCD (#9) |
Voltage protection | AC 60V / DC 42V |
Low battery display | LCD (6.5V) |
Battery type | DC9.0V (NEDA 1604/6F22 DC9V) x 1pc |
Frequency | 225kHz |
The Max. working current | Less than 70mA |
Earphone jack | 1 |
LED illumination | 2 LEDs |
Power supply |
Main tester: 9V battery (not included)
Receiver: 9V battery (not included) |
Dimensions |
Main unit: 185 x 80 x 32mm
Receiver: 218 x 46 x 29mm Romote identifier: 107x30x24mm |
