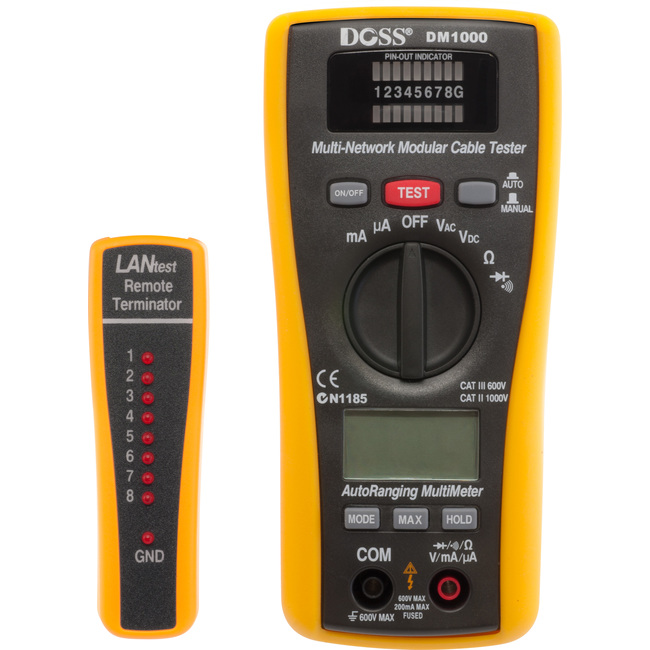

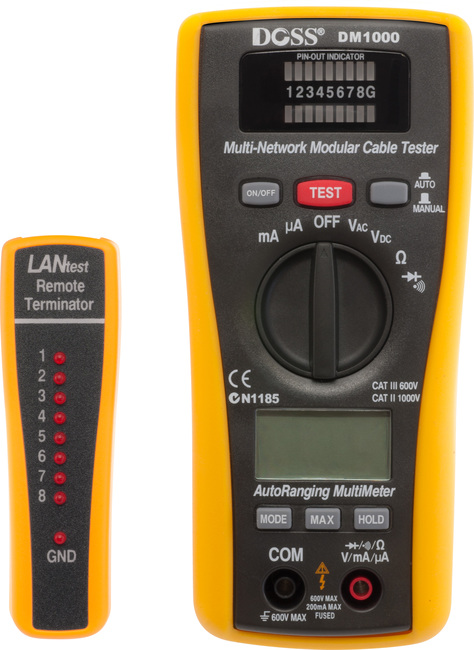

2 in 1 LAN tester & multimeter is a innovative that allows the user easy to measure DC/​AC Voltage/​Current, Resistance, Continuity, diode and verify the cable continuity, open/​short, cross-connect. The included remote terminator allows the user to test installed cable either at a wall jack or a patch panel adding up mto value and convenience. Proper use and care of this meter will provide years of reliable service.

Features

  • 2-in-1 LAN tester & multimeter
  • Measures:
    • DC/​AC voltage
    • DC/​AC Current
    • Resistance
    • Continuity
    • Diode Forward Voltage
    • LAN Cable tester
  • 3-1/​2 digit (2000 count) LCD display for multimeter functions
  • LED displays actual pin configuration of:
    • 10BASE-T and 10BASE-02 Thin Ethernet
    • FJ45/​RJ11
    • 258A
    • TIA-568a/​568b
    • Token ring cables
  • Double molded housing
  • CAT111 600V / CAT11 1000V
  • Provides easy to read continuity and fault status display
  • Checks for continuity, open wire, grounded wire, shorted pair and crossed pair faults
  • Allows for remote testing of installed cables from wall jack or patch panel
  • Auto or manual scanning for LAN tester
  • Autoranging with auto power off for multimeter functions

Package Contents

  • 1x DOSS DM1000 Multinetwork Modular Cable Tester
  • 1x LAN test Remote Terminator

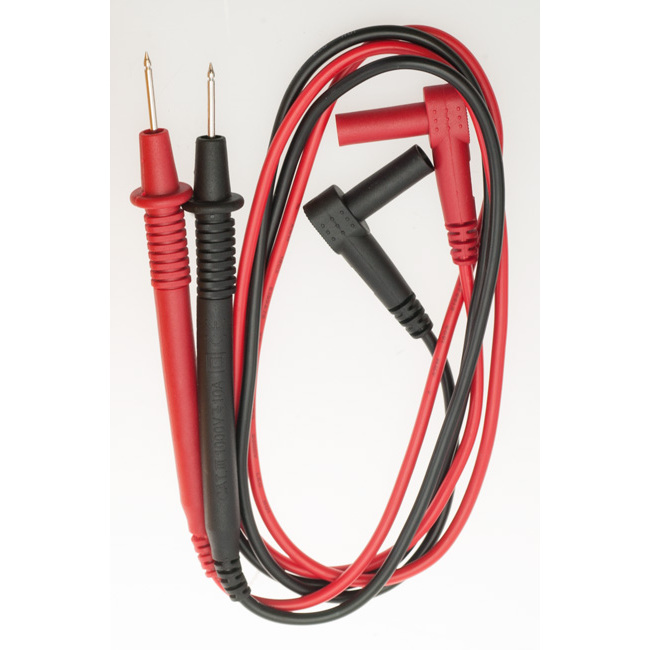

  • 1x Set of Test Leads
  • 3x RJ11/​12 Inserts
  • 1x BNC plug to plug Adaptor
  • 1x RJ45 Plug to Plug Short Lead
  • 2x RJ45 Plug to BNC Socket Short Leads
  • 2x AAA Batteries
  • 1x 9V Battery

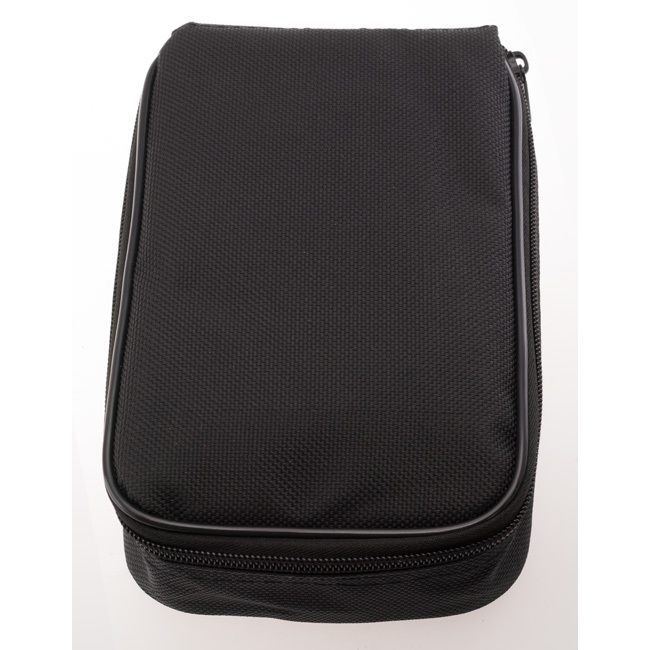

  • 1x Carry Case
  • 1x User Manual
  • 12 Months Australian Warranty
