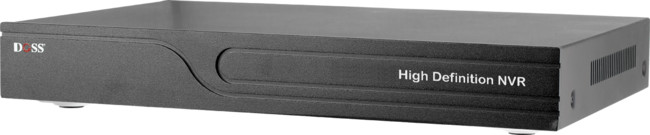

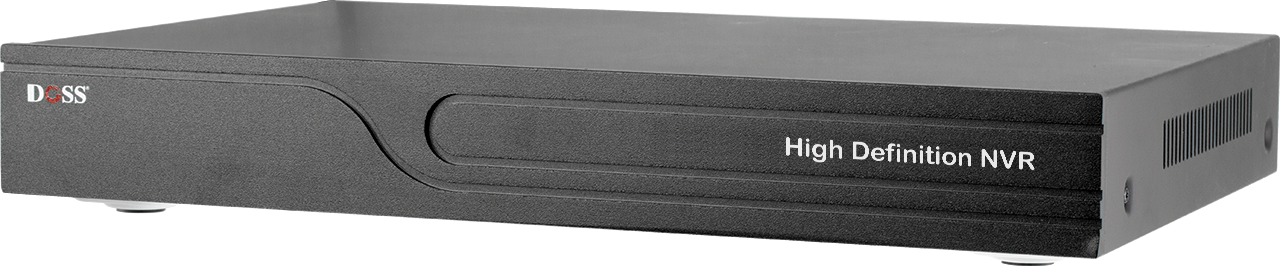

NVR16CH – 16 CHANNEL 1080P NVR

CCTV Calculator Calculate everything!

• 16CH real time network input NVR with 1U Case

  Please note that the NVR16CH supports the following resolutions:

  25 Channels	720p (625/​750FPS)
  16 channels	1080p (400/​480FPS)

• H.264 dual-stream compression
• Embedded linux operation system
• Support synchronic video, playback, remote monitor and storage
• VGA / HDMI sync output, support 1080P HD preview
• Support 15 times electronic zoom preview and playback image
• Support EXT alarm
• Support DDNS, ONVIF, EMAIL, UPNP, NTP
• ONVIF Profile S compliant
• Support WEB, mobile viewer, Client and CMS

Model	DOSS 16 Channel Network Video Recorder
VIDEO
Video Input	25CH 720P / 16CH 1080P / 4CH 3MP / 5MP
Video compression	H.264 (High Profile @ Level4.2)
Video Output Resolution	5MP / 3MP / 1080p / 960p / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Video Output	VGA / HDMI sync output, 1920*1080, 1440*900, 1280*1024, 1366*768, 1024*768, 800*600
Bit Rate	16 – 8000Kbps
Image Display	1 / 4 / 9 / 16 / 25
Snapshoot	Support (BMP)
Motion Detection	396 (22*18) surveyed area can be set in every screen andmulti sensitivity adjustable (Need IPC Support)
AUDIO
Audio Encoding	G.711A
Audio Input	IPC Complex audio input
Audio Output	1 CH, RCA port
Talkback	Bidirected-talk, RCA port
VIDEO RECORDING AND PLAYBACK
Video Frame Rate	1-30fps
Record Mode	Manual / Alarm / MD / Regular
Playback Synchronic	25CH 720P, 16CH 1080P
Search Method	Time, Calendar, Event, Channel
Video Playback	Start, Stop, Fast play, Slow play, Frame play, Snapshoot, Full screen, Roller amplification time ball precise playback
VIDEO BACKUP
Interface	2 SATA
HDD Capacity	Single 4T
Backup location	Local HDD, Network
Backup Method	Network, USB storage device, USB recorder
NETWORK MANAGMENT
Protocol	TCP/​IP, HTTP, DDNS, SMTP, DHCP, PPPOE, UPNP, NTP, P2P
EXT INTERFACE
Network Interface	RJ45 10M / 100M / 1000M adaptive Ethernet port
Alarm Input	4 CH
Alarm Output	1 CH
RS-485	1 RS485
USB Port	2 USB2.0, support WIFI / 3G Extensions
GENERAL
Operation Temp And Humidity	-10°C ~ 55°C/​10?-90?
Power supply	DC12V/​3A (included)
Power Consumption	10W (Without HDD)
Unit Dimension (mm)	L 360*W 242.4*H 48
Weight	2 Kg

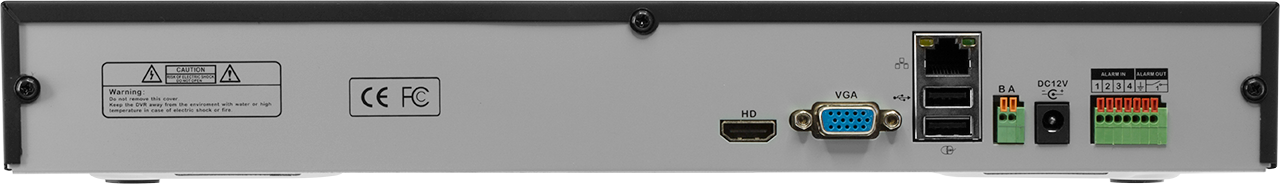

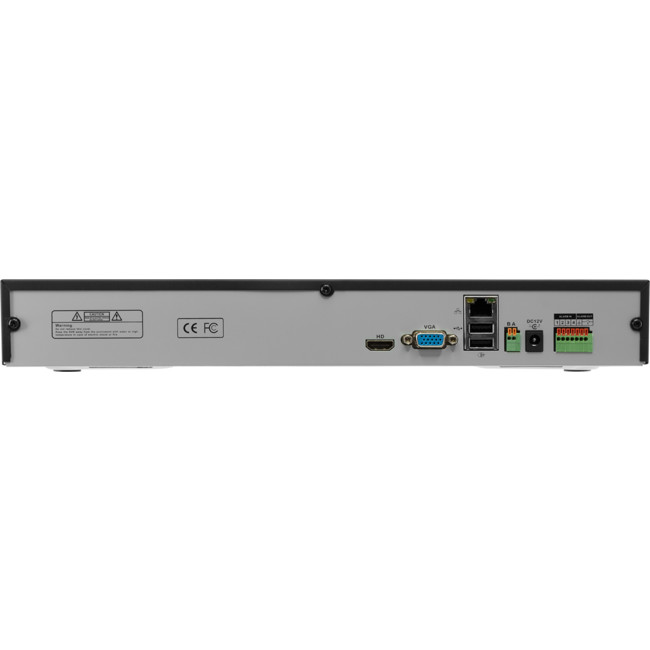

Interface

1. HDMI Video Output
2. VGA Video Output
3. USB 2.0
4. USB 3.0
5. DC12V Power Supply
6. Alarm Input
7. Alarm Output
8. RS485
9. Power Switch

I’ve just hooked up my NVR16CH and I can’t access it—I’ve tried the default password "123456" but it won’t let me continue.

The NVR16CH comes with no password out of the box. You can simply press enter when asked for a password. Remember to set one up from the menu later!

The video from my camera is corrupted.

By default, the NVR main stream is set to 720P, whileyour camera stream may be set to 1080P. Setting the NVR’s stream to 1080P solves the problem.

To change the NVR’s main stream format:

1. Open the NVR’s settings menu
2. Navigate to Device > Device Info
3. Change "Video Format" to either of the [1920×1080] options
4. Reboot the NVR and the problem should be resolved.

My Doss NVR16CH can’t find my ACTi IP Camera.

Firstly, your ACTi IP Camera may not be running the latest firmware. If not, update it first. Finally, both the NVR and ACTi IP camera need to be set to use ONVIF only.
