Features
Configure, view and record multiple IP cameras at once! The DOSS NVRs are able to provide you with a familiar DVR experience over IP.
P2P Technology—no more configuring port forwarding! See how here…
ONVIF is an industry standard protocol ensuring compatibility for IP-based security products regardless of brand! Read more here…
Latest P2P technology allows viewing from anywhere in the world without configuring complicatedPort Forwarding or expensive Dynamic DNS services! Simple QR Code allows instant access from mobile phones using thefree app available for iOS and Android.
- 8CH 960P/1080P full real time network input NVR with Desktop/1U Case
- Embedded Linux OS
-
P2P (Peer to Peer) for remote viewing!
- Zero network configuration required (no DNS or Port Forwarding required)
- H.264 dual-stream compression
- Up to 8TB Internal storage (HDD not included)
- Supports simultaneous video playback & remote monitor
-
VGA/HDMI synchronised output
- Up to 1080P / Full HD output
- 15x digital zoom in preview and playback modes
- 4x external alarm inputs
-
Supports ONVIF, industry standard protocol
- Ensures compatibility for IP-based security products regardless of brand
- Supports Dynamic DNS services
- Remote viewing via web-browser, smartphone app (iOS + Android) and PC Client
Connections

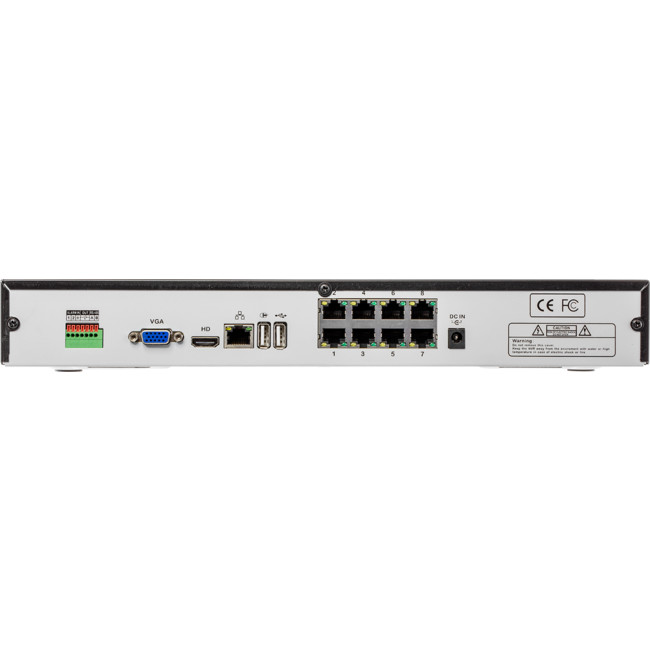

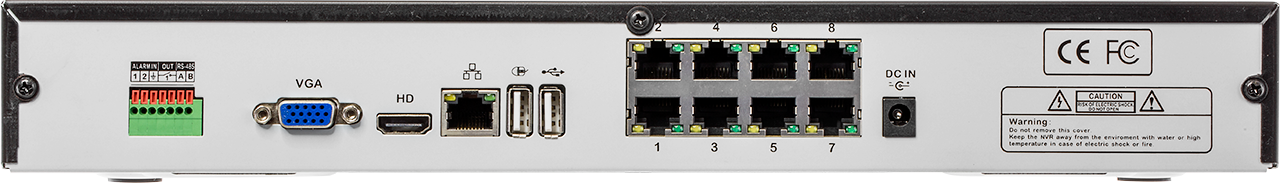

Rear Interface
- VGA Video Output
- DC Input
- 2x Alarm Input
- 1x Alarm Output
- RS485
- 1x RJ45 (10M/100M LAN)
- 8x RJ45 (IPC connection with PoE-IEEE 802.3 AF standard. Max 13.5W for each port)
- 2x USB2.0 ports (mouse + external HDD)
- HDMI Video Output
Specifications
VIDEO | |
Video Input | 8CH 960P / 8CH 1080P |
Video compression | h.264 (High Profile @ Level 4.2) |
Video Output Resolution | |
Video Output | VGA / HDMI synchronised output, 1920 x 1080, 1440 x 900, 1280 x 1024, 1366 x 768, 1024 x 768, 800 x 600 |
Bit Rate | 16-8000 kbps |
Image Display | 1/4 |
Snapshot | BMP |
Motion Detection | 396 (22×18) surveyed area can be set in every screen and multi sensitivity adjustable |
AUDIO | |
Audio Encoding | G.711A |
Audio Input | IPC Complex audio input |
Audio Output | none |
Talkback | none |
VIDEO RECORDING AND PLAYBACK | |
Video Frame Rate | 1-30 fps |
Record Mode | Manual / Alarm / Motion Detection / Schedule |
Simultaneous Playback | 1-CH 1080P / 4-CH 960P |
Search Method | Time, Calendar, Event, Channel |
Video Playback | Start, Stop, Fast play, Slow play, Frame play, Snapshot, Full screen, Roller amplification, Time ball precise playback |
VIDEO BACKUP | |
Interface | 2x SATA |
HDD Capacity | Support up to 2 Hard drives. 6TB Max for each hard drive. |
Backup location | Local HDD, Network |
Backup Method | Network, USB storage device, USB recorder |
NETWORK MANAGEMENT | |
ONVIF | Profile S, version 2.2 |
Protocol | TCP/IP, ONVIF, HTTP, DDNS, SMTP, DHCP, PPPoE, UPNP, NTP, P2P |
EXT INTERFACE | |
Network Interface | RJ45 10M / 100M / 1000M adaptiveEthernet port |
Alarm Input | 4 CH |
Alarm Output | 1 CH |
RS-485 | 1x RS485, Supports the DOSS KT301 controller |
USB Port | 2x USB2.0, supports Wi-Fi/3G modems |
GENERAL | |
Operation Temperature / Humidity | -10ºC ~ 55ºC / 10% ~ 90% |
Power supply | DC 48V / 2.5A |
Power Consumption | 10W (Without HDD) |
Unit Dimension (mm) | 360 (L) x 242.4 (L) x 48 (H) |
Weight | 2 kg |

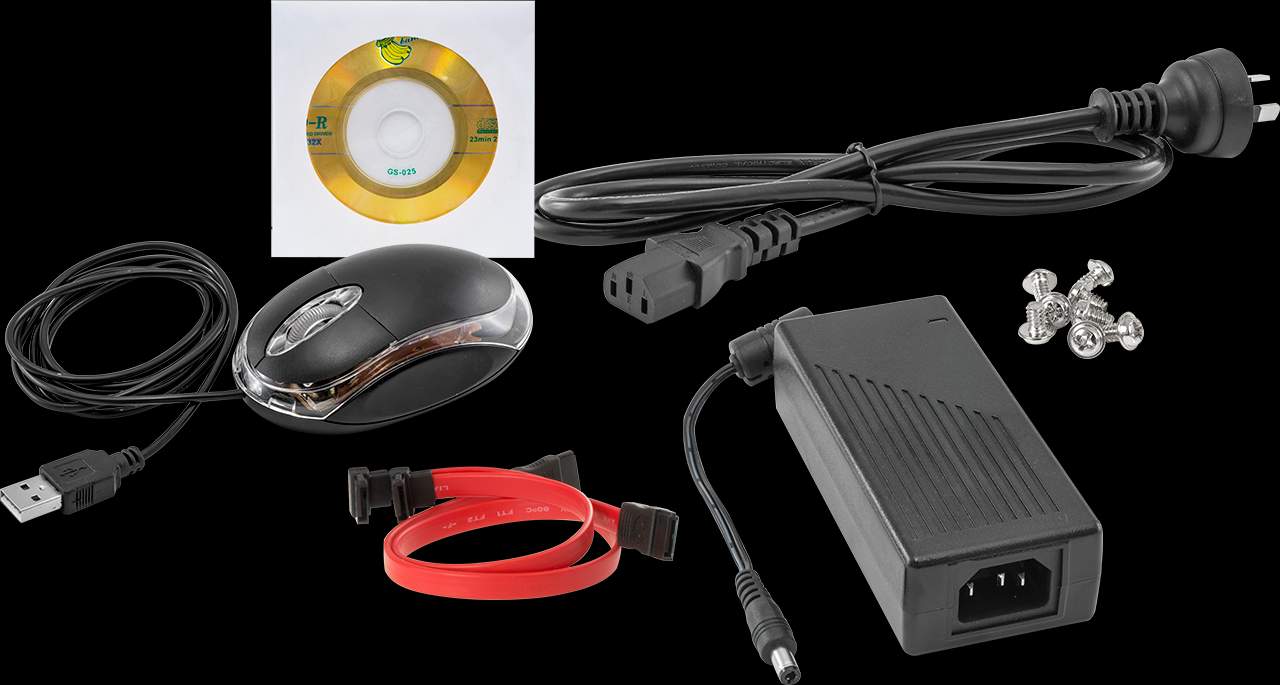

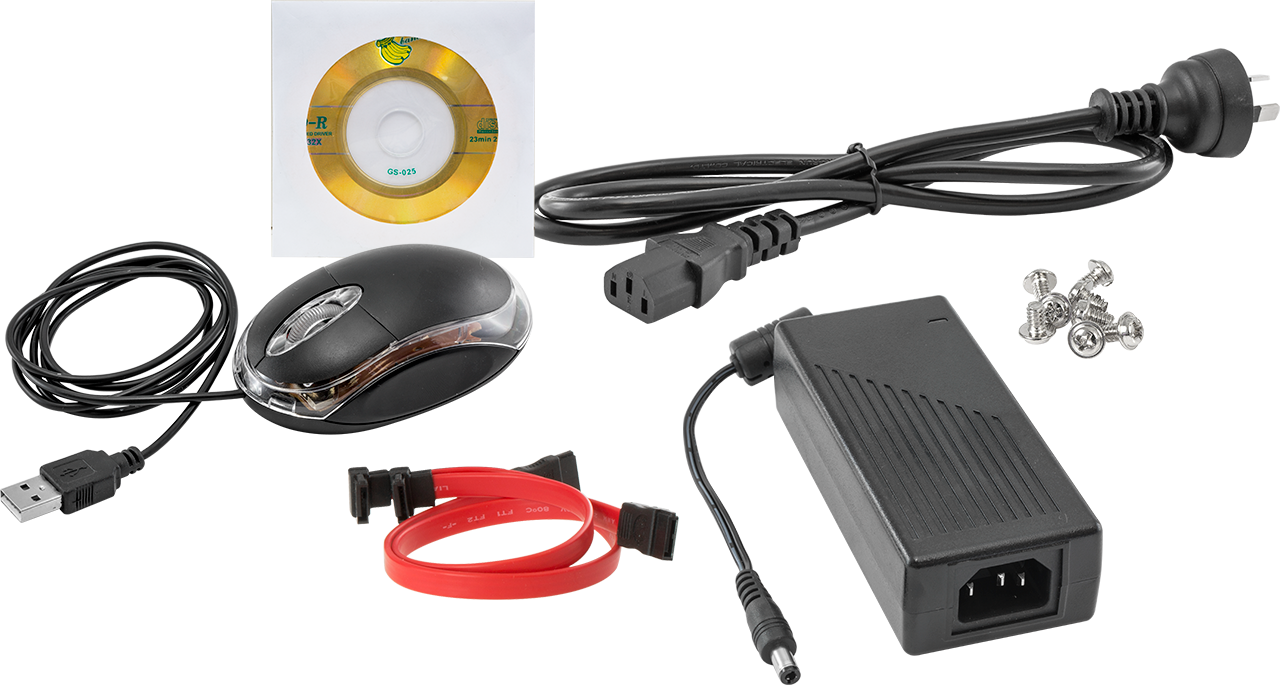

In the Box
- 8 channel NVR
- 2x Sata Cable
- HDD power cable
- 48V DC power supply
- Mouse
- Software CD
FAQ
- I’ve just hooked up my NVR8CH and I can’t access it—I’ve tried the default password "123456" but it won’t let me continue.
- The NVR8CH comes with no password out of the box. You can simply press enter when asked for a password. Remember to set one up from the menu later!
- The video from my camera is corrupted.
-
By default, the NVR main stream is set to 720P, whileyour camera stream may be set to 1080P. Setting the NVR’s stream to 1080P solves the problem.
To change the NVR’s main stream format:
- Open the NVR’s settings menu
- Navigate to Device > Device Info
- Change "Video Format" to either of the [1920×1080] options
- Reboot the NVR and the problem should be resolved.
- My Doss NVR4CH can’t find my ACTi IP Camera.
-
Firstly, your ACTi IP Camera may not be running the latest firmware. If not, update it first. Finally, both the NVR and ACTi IP camera need to be set to use ONVIF only.
