Overview
Have you been shopping around for a CCTV system but couldnot make a desicion among options?
This Doss AHD 4 channel Hybrid DVR bundle kit includes everything you need for your home CCTV system.
No more frustration about too many products and options. This bundle kit takes your headache away and make your CCTV shopping experience more pleasant.

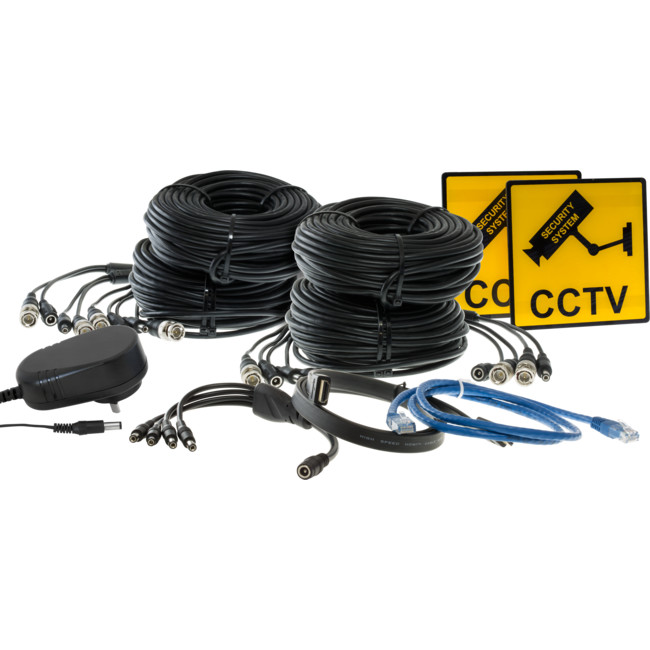

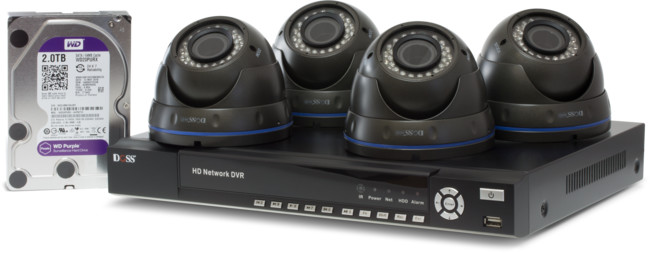

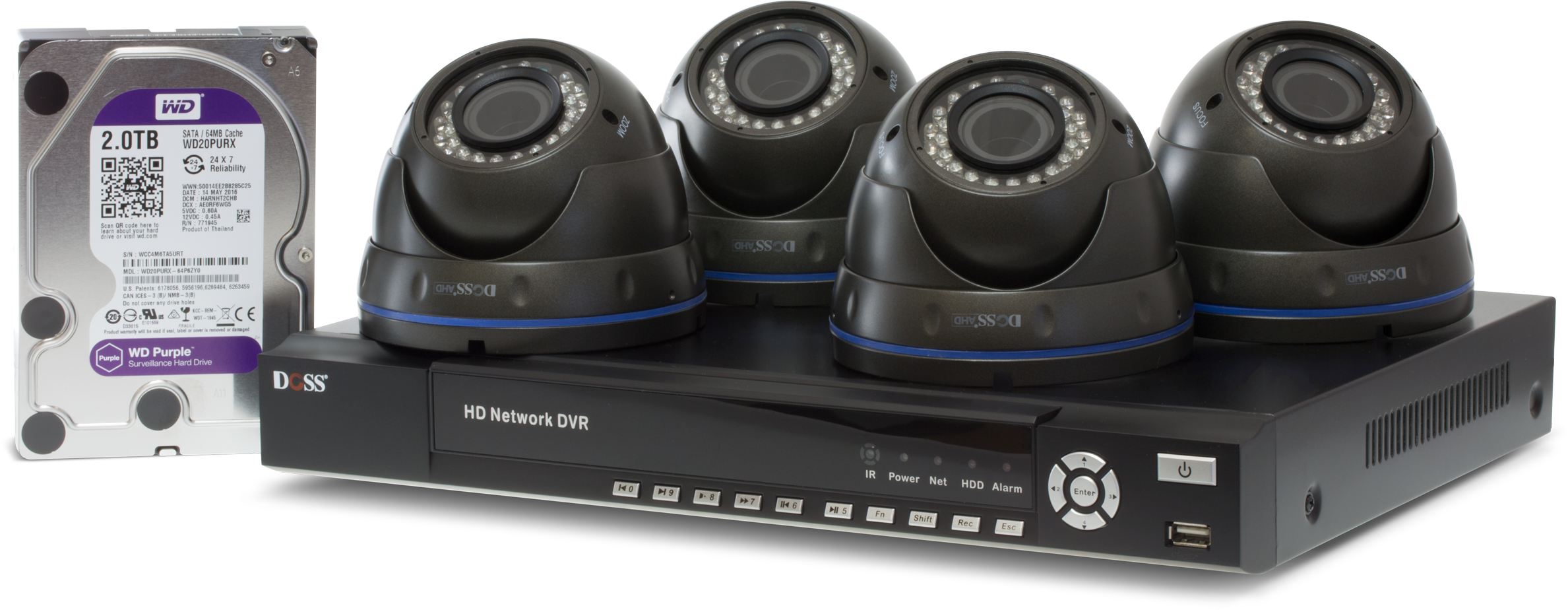

The kit comes with:
- 1 XHybrid 4 CH DVR
- 4 X 1080p DM30AHDB cameras
- 4 X 20m camera power leads
- 1 X12V 2.5A power supply with 2.1mm tip
- 1 X 4 way power splitter
- 1 X Western Digital 2TB hard drive-purple
- 1 X 1m HDMI lead
- 1 X1m CAT6 UTP cable
- 2 X Security protective stickers
Features
- 4 AHD cameras recording in 1080p
- 30m IR range for all cameras. Night recording-NO PROBLEMS!
- Hybrid DVR is compatible with all analog, AHD and IP cameras.
- Western digital purple 2TB hard drive included, designed for surveillance purposes. (Approx 2 weeks of continuously recording)
- Supports remote viewing on mobile devices
Hybrid DVR Specification
| Video | ||
| Video input |
4*1080P (13fps)
4*720P/4*960H (25fps) +4Play 4*720P/4*960H (25fps) +4*1080P IPC+1Play |
|
| Video compression | H.264 | |
| Video output | BNC / VGA / HDMI sync output | |
| 1920×1080, 1440×900, 1280×1024, 1366×768, 1024×768, 800×600 | ||
| Video resolution | 1920×1080, 1280×960, 1280×720, 960×576 | |
| Stream Type |
4 x [1920*1080] + 4Play
4 x [1280*720] + 4Play 4 x [960*576] + 4Play 4 x [1920*1080] / IP4 [1920*1080] + 4Sub_Play / 1 Main_Play 4 x [1280*720] / IP4 [1920*1080] + 4Sub_Play / 1Main_Play 4 x [960*576] / IP4[1920*1080] + 4Sub_Play / 1Main_Play |
|
| Video bit rate | 64 – 8000Kbps | |
| Image display | 1 / 4 / 6 / 8 / 9 | |
| Snapshot | Support (BMP) | |
| Motion detection | 396 (22*18) surveyed area can be set in every screenand multi sensitivity adjustable | |
| Audio | ||
| Audio compression | G.711A | |
| Audio input | 4CH, RCA port | |
| Audio output | 1CH, RCA port | |
| Audio talkback | / | |
| Video recording and play back | ||
| Video frame rate | AHD: 13fps (PAL) / 15fps (NTSC); Analog/IPC: 25fps (PAL) / 30fps (NTSC) | |
| Record mode | Manual / Alarm / Motion Detection / Schedule | |
| Local playback | 1 / 4CH sync playback | |
| Search method | Time, calendar, event, channel | |
| Video playback | Start, stop, fast play, slow play, frame play, snapshot, full screen, roller amplification time ball precise playback | |
| Storage and Backup | ||
| Interface | 1 SATA | |
| HDD capacity | Single largest 4T | |
| Record saving | Local HDD, network | |
| Backup method | Network backup, USB storage device, USB recorder | |
| Function | ||
| Network protocol | TCP / IP, HTTP, DDNS, SMTP (SSL), DHCP, PPPOE, UPNP, NTP, P2P, ONVIF | |
| Interface protocol | Onvif, RTSP, I8, I9 | |
| Mobile surveillance | Support Apple, Android | |
| Internet explorer | Support IE, Chrome, Firefox, Safiri | |
| Intelligent detection | Motion detection, video loss, privacy mask | |
| External Interface | ||
| Video input | 4CH BNC port (1.0Vp-p,75O) | |
| Network interface | RJ45 10M / 100M adaptive ethernet port | |
| Alarm input | 4CH | |
| Alarm output | 1CH | |
| RS-485 | 1 RS485 port | |
| USB port | 2 USB2.0 | |
| ESATA | / | |
| General | ||
| Power supply | DC12V / 3A (Included) | |
| Power consumption | <10W (Without HDD) | |
| Operation temperature | -10°C ~ 55°C | |
| Dimension (mm) | 300 (L) * 209 (W) * 48.5 (H) | |
| Weight | 1 Kg | |
AHD Camera Specification
|
CAMERA |
||
|
Sensor |
1/2.8" SONY 2.43M pixels CMOS |
|
|
Effective pixels |
1920*1080 |
|
|
HD AHD output |
1080P |
|
|
Resolution |
800TVL (CVBS input) |
|
|
Min. Illumination |
0 Lux (IR ON) colour: 0.1Lux/F1.2; B/W: 0.01Lux/F1.2 |
|
|
Sync System |
Internal |
|
|
Scan System |
Progressive scan |
|
|
Lens |
2.8-12mm M12 lens |
|
|
Electronic Shutter |
Auto / Manual (X30~1/50000) / FLK |
|
|
S/N Rate |
≥50db (AGC OFF) |
|
|
Video output |
1.0Vp-p composite video output, 75O |
|
|
output model |
PAL / NTSC adjustable |
|
|
OSD menu |
||
|
White balance |
ATW / AWC-SET / INDOOR / OUTDOOR / MANUAL / AWB |
|
|
NR |
2DNR / 3DNR, OFF |
|
|
Image adjustable |
lightness, contrast, sharpness, AGC |
|
|
DWDR |
AUTO / ON / OFF |
|
|
BLC |
BLC / HLC / OFF |
|
|
AGC |
ON / OFF / AUTO (1-15) |
|
|
TDN |
B/W, COLOUR, AUTO, EXT |
|
|
Privacy mask |
OFF / ON (4 zone) |
|
|
Motion detection |
OFF / ON (4 zone) |
|
|
Mirror |
horizontal / vertical / HV mirror |
|
|
Sens-up |
OFF/ON (X30, X25, X20, X15, X10, X8, X6, X4, X2) |
|
|
Lens shading compensation |
OFF / ON |
|
|
DPC |
Auto / Manual |
|
|
Defog |
OFF / Auto (Effective under B / W model) |
|
|
OSD menu |
Chinese, English etc 12 languages |
|
|
Dual-output |
HD AHD / analog CVBS optional |
|
|
General |
||
|
Transmission distance |
75 – 3 / 300m, 75 – 5 / 500m |
|
|
IR distance |
20-30m (36 x Ø5IR led) | |
|
power supply |
DC12V ± 10% |
|
|
Power (max) |
280mA ± 10mA (IR ON) |
|
|
Operating Temperature |
−20°C ~ 55°C / 0%-90% |
|
|
Dimensions (mm) |
100 (H) * 120 (D) mm |
|
|
Weight / PC (g) |
800g |
|
