Discontinued
Features
CCTV Calculator Calculate everything!
Our refurbished stock may or may not come with all accessories. The product may have some signs of cosmetic wear, but is fully operational and functions as intended. This product may be a floor model or store return that has been used.IP dome 30 FHD camera has an IR refletion issue due to a design issue. (For more info please see download tab)

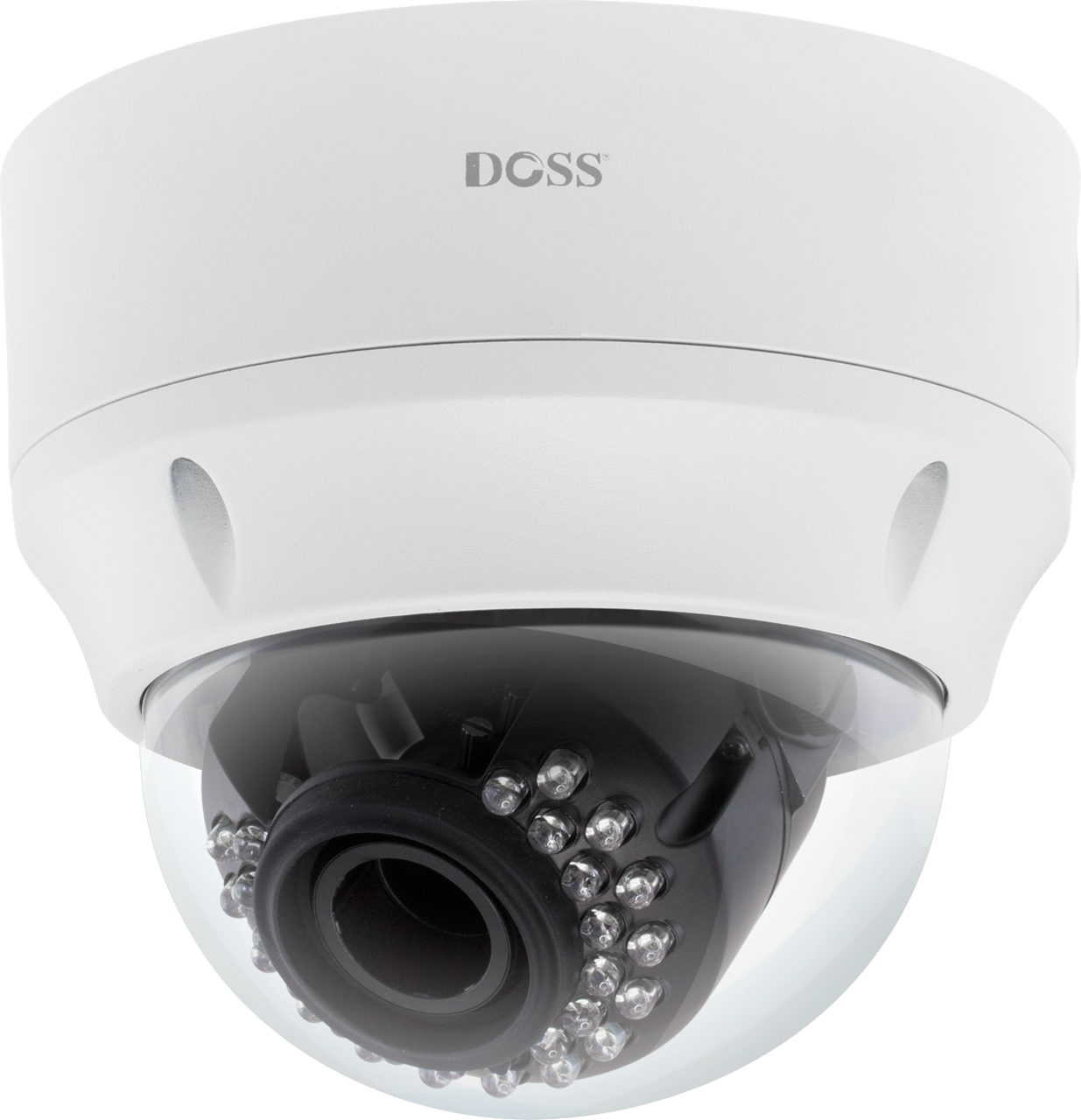

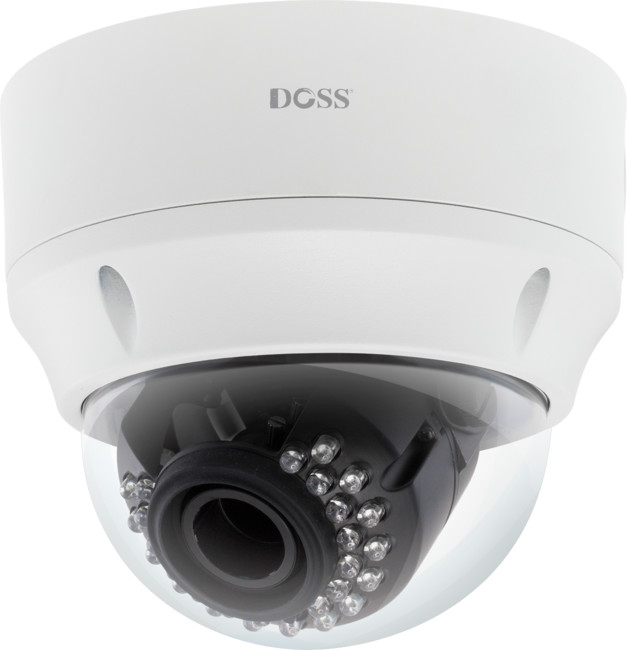

The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using an conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.
- Condensation may appear the first time the camera is installed. Keep the camera powered off until the moisture has been absorbed by the desiccant.
- If you open the cover for a significant period of time (such as 1 hour), the supplied desiccant might become ineffective and you may have to replace it.
- 1/2.8" Sony 2.43 Mega Pixels low illumination CMOS Sensor
- Hi3516C DSP
- H.264 encoding
- 1080P (Full HD) real time recording
- Conforms to ONVIF (Open Network Video Interface Forum) protocols, Profile-S/G
- Supports Power Over Ethernet (PoE)
- Analog BNC output for installers
- 2.8-12mm 3MP Vari-focal (Manual) lens
- 20-30m IR distance / 28x Ø5mm IR Leds
- Dual stream
- Privacy zone
- Vandal-proof
- IP65
- DC12V with PoE
Specifications
|
CAMERA
|
|
| Sensor | 1/2.8" SONY 2.43 Mega-pixel low inllumination CMOS |
| Min. illumination | 0 Lux / F1.4 (IR ON) |
|
Electronic shutter
|
Auto / Manual (1/25 ~ 1/10000) |
| Day / Night | Auto / B / W / Colour / EXT ICR switching |
| Video Parameter | DWDR, Mirror, 3D Noise reduction, Sharpness / Lightness adjustable |
| IR Distance | 20-30m (28x Ø5mm) |
| Adjustable IR Brightness | No |
| Lens | 2.8~12mm Lens / 3MP |
|
AUDIO / VIDEO COMPRESSION
|
|
| Video compression | H.264 |
| Encoding |
Dual-stream, Main stream
PAL: 1920×1080 25fps; NTSC:1920×1080 30fps |
| Effective pixels | 1920×1080 |
| Encoding System | Constant bit rate, Variable bit rate optional |
| Video Bit rate | 16kbps – 8000kbps |
| Stream Type | Complex stream / Video stream |
| Audio Compression | G.711A |
| Audio Bit rate | 64kbps |
|
NETWORK FUNCTION
|
|
| Motion detection | Can be set to a single detection zone, Multi-level sensitivity can be set |
| Privacy zones | 4 zones |
|
Snapshot |
Support JPEG format, max. resolution based on encoding resolution |
| Password protection | Support |
| Character display | Support (Channel & Date) |
| Alarm function | Video loss, Network disconnect, Tampering alarm, Storage exception |
| Mobile surveillance | Apple, Android |
| Protocol | TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPNP, SMTP |
| Port protocol | I8, ONVIF |
| ONVIF | Profile S/G, version 2.2 |
|
INTERFACE
|
|
|
Network Interface |
RJ45 10M / 100M adaptive |
|
Analog video output |
1CH CVBS analog video output |
|
GENERAL
|
|
|
Operating Conditions
|
-10°C ~ 55°C |
| Protection Level | IP66 |
| Power Supply | DC12V / PoE |
| Power Consumption | <7W |
| Dimensions | Ø157 x 131mm |
|
Weight
|
1.1Kg |
FAQs
- Can I use a DOSS IP camera with my NAS?
-
If your NAS has NVR functionality that is compatible with the ONVIF protocol then yes. Our DOSS IP cameras have been tested fine with Synology Surveillance Station and QNAP VioStor NVR. By default, you can find the ONVIF protocol is accessed on port 8000 for all DOSS IP cameras.
"Complete Setup" for adding a camera to Synology NVR App
