Features

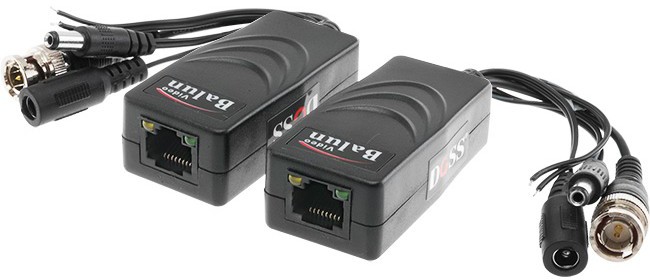

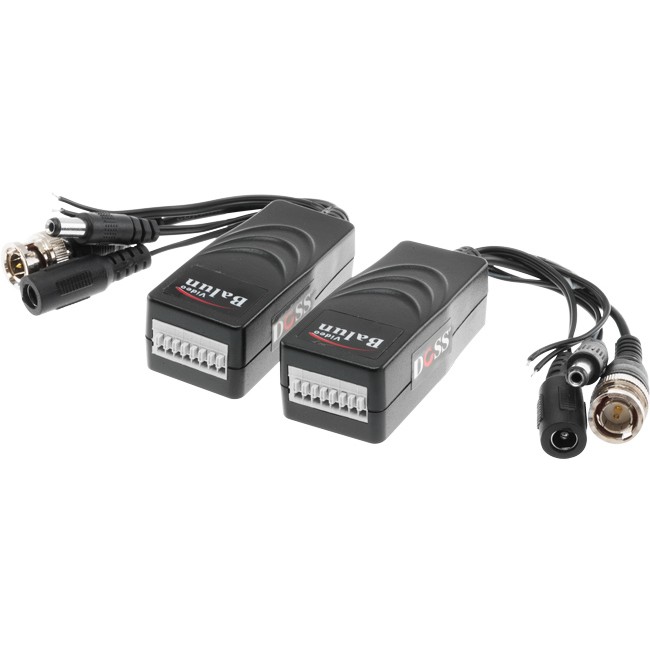

The Doss VPB45HD is video & power transmitter and receiver that allows the transmission of real-time CCTV HD video and power signal via cost-effecitve UTP unshielded Twisted Paried cable.
The Doss VPB45HD is compatible with all HD-TVI, HD-CVI and AHD analogue cameras. Used in pairs which eliminates costly and bulky coxial cable.
The superior interference rejection and low emissions of the balun allow video & power signals to coexist in the samewire bundle as telephone, datacom or low-voltage power circuits. Also it has built in surge suppressor to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quanlity video signals.
We recommend to use it with Unshielded Twisted Paired (UTP) wiring from 24AWG through 22AWG. Individually shielded pairsshould be avoided as they reduce the operating range of the systems drastically.
- Single Channel HD Video, Power & Data Transmitter & Receiver
- Real-time transmission over UTP cat5e/6
- NTSC, PAL & SECAM video format compatible
- Compatible with all HD-TVI, HD-CVI, AHD & CVBS analog cameras
- Colour video max. distance up to 440m for HD-CVI camera
- Colour video max up to 190m for Hikvision TVI camera
- Colour video max up to 230m for TVT HD-TVI camera
- Colour video max up to 300m for AHD camera
- Data signal transfer up to 300m
- BNC plug with extended 150mm mini-coax pigtail
- RJ45 Jack for UTP cable
- Built-in TVS (Transient Voltage Suppressor) for surge protection
- Wave Filter Design, Anti-Static Design
- Lightning protection design Grade: III
- 60 dB crosstalk and noise immunity
- Exceptional interference rejection
- ABS engineering plastic housing
Applications
- Security Monitoring System
- Multimedia Network Teaching System
- Medical Monitoring Display System
- Industrial Automation Control System
- Banking, securities, financial information display system
- Remote Network Server Monitoring
- Department Store Security
- Casino Security
- Hospitals, Airports and banks
- School Campuses
Example scenarios
Basic application: Direct connection with monitor
Simple application: Four cameras connected to DVR

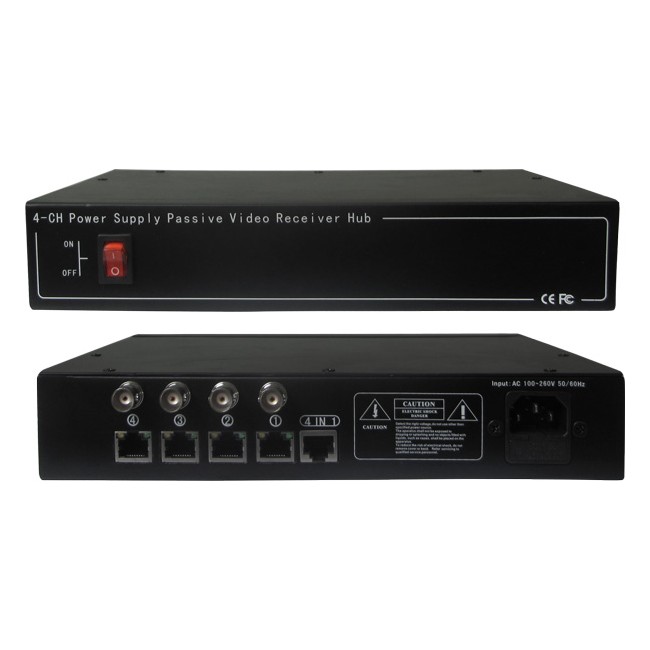

Full CCTV application: Many cameras to DVR via powered hub.
Specifications
Specifications
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | ||||||
| Video | Video Format | PAL, NTSC, SECAM | |||||
| Operating Frequency | DC to 42MHz | ||||||
| Max Distance | HD-TVI 720P: 190m | HD-CVI 720P: 440m | AHD 720P: 300m | ||||
| HD-TVI 1080P:190m | HD-CVI 1080P: 220m |
AHD 960P: 240m AHD 1080P: 220m |
|||||
| Common-mode/Differential-mode rejection | 15KHz to 42MHz 60 dB type | ||||||
| Impedance | Coax, BNC plug 75Ω unbalanced | ||||||
| UTP, RJ45 100Ω balanced | |||||||
| Attenuation | 1.5 dB typ Max | ||||||
| Wire Type | Network Wiring | One UnshieldedTwisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm) | |||||
| Category Type | 2 or better | ||||||
| Impedance | 100 ± 20 ohms | ||||||
| DC Loop Resistance | 52 ohms per 1,000ft (18 ohms per 100m) | ||||||
| Differential Capacitance | 19 pF/ft max (62 pF/m max) | ||||||
| Data Signal | Transmission distance | Up to 300m via UTP cat5e/6 | |||||
| Power | No external power required | ||||||
| Connector | Video input / output | BNC plug connector | |||||
| Video input / output | RJ45 Jack | ||||||
| Protection | Surge Protection | renewable solid state surge protection | |||||
| Video Input | 2KV (common mode), 10/700us IEC6100-4-5/1955 (GB/T 1726, 5-1999) | ||||||
| Video Output | 2KV (different mode), 10/700us IEC6100-4-5/1955 (GB/T 1726, 5-1999) | ||||||
| Mechanical | Housing | ABS engineering plastic | |||||
| Body Color | Black | ||||||
| Dimensions (L*W*H) | 60.4*29*20.4mm (BNC connector excluded) | ||||||
| Net Weight | 65g | ||||||
| Environmental | Operating Temperature | −20°C ~ 70° C | |||||
| Relative Humidity | 0~95% (non-condensing) | ||||||
| Storage Temperature | −40°C ~ 150°C | ||||||
Reference
Balun LEDs
|
|
| Power indicator—power is being transmitted/received | |
| Over-current—maximum current (1.5A) has been exceeded |
Video and Power Balun wiring
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 | |
|---|---|---|---|---|---|---|---|---|
| T568A |
White/
Green |
Green |
White/
Orange |
Blue |
White/
Blue |
Orange |
White/
Brown |
Brown |
| T568B |
White/
Orange |
Orange |
White/
Green |
Blue |
White/
Blue |
Green |
White/
Brown |
Brown |
|
DOSS Video+
Power Balun |
Video | Video | Power – | Power – | Power – | Power + | Power + | Power + |
