Discontinued

Features

The DOSS Range of UTP Video+Power Baluns allow you to connect your CCTV system using cheaper, thinner, lighter andmore readily available CAT5E cable rather than expensive andbulky RG59U cable.

The passive (non-amplified) baluns allow transmission of realtime CCTV video signals and power over cost-effective Unsheilded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the needfor extra power supplied to be installed. Sending camera power over the same twisted pair as video means less cabling, and no power supply required to be installed near to the camera. Baseband (composite) signals of any type are supported.

Applications

  • Security Monitoring System
  • Multimedia Network Teaching System
  • Medical Monitoring Display System
  • Industrial Automation Control System
  • Banking, securities, financial information display system
  • Remote Network Server Monitoring
  • Department Store Security
  • Casino Security
  • Hospitals, Airports and banks
  • School Campuses

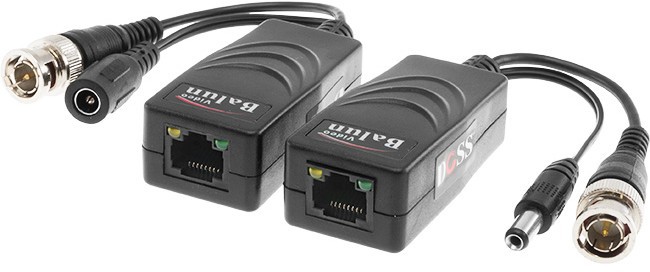

VPB45PCD PASSIVE VIDEO & POWER BALUN WITH DC-DC CONVERTER (RJ45 JACK)

The main feature of the VPB45PCD is its ability to convert 24-28VDC to regulated 12VDC at the camera, allowing the system to be highly tolerant of voltage drop in the cable. The VPB45PCD has a mini-coax pigtail lead which allows quick mounting onto fixed cameras and allows in-camera mounting in most dome cameras. 8P8C (RJ45) Jack connectionfor UTP cable enabling quick and simple installation. Working in pairs, the VPB45PCD eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 400m (1300ft).

The superior interference rejection and low emissions ofthe VPB45PCD allow signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable infrastructure. The VPB45PCD has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.

Example scenarios

Basic application: Direct connection with monitor

Simple application: Four cameras connected to DVR

Full CCTV application: Many cameras to DVR via powered hub.

  • Single Channel Passive Video & Power Transceiver
    • Down-converts 24-28VDC to regulated 12VDC
      (voltage conversion at video transmitter end only)
  • Transmit power signal up to 250m (750ft)
  • Full-motion colour signal up to 400m (1300ft) and
    monochrome (B&W) up to 600m (1950ft) via UTP CAT5e/​6
  • NTSC, PAL & SECAM video format compatible
  • Real-time transmission
  • Male BNC with extended mini-coax pigtail
  • RJ45 Jack
  • No power required
  • Exceptional interference rejection
  • Built-in TVS (Transient Voltage Suppressors) for surgeprotection
  • Lightning protection design Grade III
  • 50dB crosstalk and noise immunity
  • Wave Filter Design, Anti-Static Design
  • Compact size and easy installation
  • ABS engineering plastic housing

Specifications

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left }
Applied Devices CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
Video Video Format PAL, NTSC, SECAM
Operating Frequency DC to 5MHz
Max Distance UTP Category 5e (24AWG)
Color: 400m (1300ft)
B&W: 600m (1950ft)
Common-mode /
Differential-mode rejection 		15kHz to 5MHz 60dB typical
Impedance Coax, Male BNC 75Ω unbalanced
UTP, two coax pigtail 100Ω balanced
Attenuation 1.5dB Max typical
Wire Type Network Wiring One Unshielded Twisted Pair (for each video signal)
24-16 AWG (0.5-1.31mm)
Category Type 2 or better
Impedance 100 ±20Ω
DC Loop Resistance 18Ω per 100m (52Ω per 1,000ft)
Differential Capacitance 62 pF/​m max (19 pF/​ft max)
Power No external power required to operate
Power input/​output Input: 24-28VDC / 1.5A max (At Receiver)
Output: Regulated 12VDC (At Video Transmitter)
Connector Video input/​output Male BNC connector
Video input/​output 8P8C (RJ45) Jack
Protection Surge Protection Renewable solid state surge protection
Video Input 2KV (common mode),
10/​700µs IEC6100-4-5/​1955 (GB/​T 1726, 5-1999)
Video Output 2KV (different mode),
10/​700µs IEC6100-4-5/​1955 (GB/​T 1726, 5-1999)
Mechanical Housing ABS engineering plastic
Body Color Black
Dimensions (L*W*H) 65*36*25mm (BNC connector & cable excluded)
Net Weight 65g
Environmental Operating Temperature -20°~ 70° C
Relative Humidity 0~95% (non-condensing)
Storage Temperature -40°~ 150° C

Reference

Balun LEDs

.rpg_table4 { border-collapse: collapse } .rpg_table4 th, .rpg_table4 td { padding: 0px 4px !important; } .rpg_table4 td, .rpg_table4 th { text-align: left; vertical-align: middle; border-top: none 0px !important; border-bottom: none 0px !important; }
Power indicator—power is being transmitted/​received
Over-current—maximum current (1.5A) has been exceeded

Video and Power Balun wiring

.rpg_table3 { border-collapse: collapse } .rpg_table3 th, .rpg_table3 td { padding: 5px; } .rpg_table3 td { width: 80px; } .rpg_table3 td, .rpg_table3 th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table3 th, .rpg_table3 .header { font-weight: bold; text-align: left }
Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8
T568A White/
Green 		Green White/
Orange 		Blue White/
Blue 		Orange White/
Brown 		Brown
T568B White/
Orange 		Orange White/
Green 		Blue White/
Blue 		Green White/
Brown 		Brown
DOSS Video+
Power Balun 		Video Video Power – Power – Power – Power + Power + Power +

Power over Twisted Pair: Voltage Drop Reference

.rpg_table2 { border-collapse: collapse } .rpg_table2 th, .rpg_table2 td { padding: 5px; } /*.rpg_table2 td { width: 80px; }*/ .rpg_table2 td, .rpg_table2 th { text-align: center; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table2 th, .rpg_table2 .header { font-weight: bold; text-align: left }
Transmission
Distance 		Transmission Voltage (Voltage Drop)
12VDC/​0.5A
camera requirement 		12VDC/​1A
camera requirement 		12VDC/​1.5A
camera requirement
50m / 160ft 13.5V (1.5V) 15.5V (3.5V) 17.0V (5.0V)
100m / 320ft 15.5V (3.5V) 18.5V (6.5V)

22.0V (10.0V)
150m / 500ft 17.0V (5.0V) 22.0V (10.0V) 27.0V (15.0V)
200m / 650ft 18.5V (6.5V) 25.5V (13.5V) 32.0V (20.0V)
300m / 1000ft 22.0V (10.0V) 32.0V (20.0V) 42.0V (30.0V)
eg: to supply a camera that requires 12VDC/​0.5A, over a run of 150m cable, you require an initial transmission voltage supply of 17.0VDC (to account for 5V voltage drop over cable)
Note: based on typical CAT5e cable (will vary on make and quality of cable)
