Features
The DOSS Range of UTP Video+Power Baluns allow you to connect your CCTV system using cheaper, thinner, lighter andmore readily available CAT5E cable rather than expensive andbulky RG59U cable.
The passive (non-amplified) baluns allow transmission of realtime CCTV video signals and power over cost-effective Unsheilded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the needfor extra power supplied to be installed. Sending camera power over the same twisted pair as video means less cabling, and no power supply required to be installed near to the camera. Baseband (composite) signals of any type are supported.
Applications
- Security Monitoring System
- Multimedia Network Teaching System
- Medical Monitoring Display System
- Industrial Automation Control System
- Banking, securities, financial information display system
- Remote Network Server Monitoring
- Department Store Security
- Casino Security
- Hospitals, Airports and banks
- School Campuses

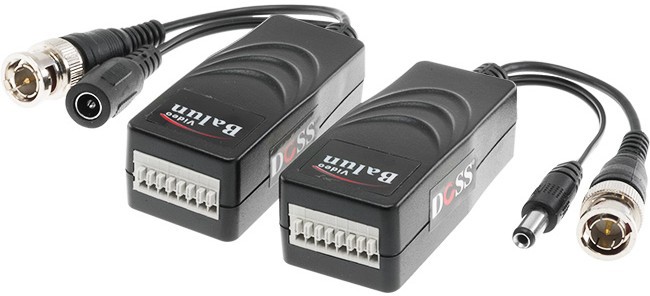

VPBPP PASSIVE VIDEO & POWER BALUN (8-WAY PUSH PIN)
The VPBPP has a mini-coax pigtail lead which allows quickmounting onto fixed cameras and allows in-camera mounting in most dome cameras. The 8-Way Push Pin terminals for UTP cable enable quick and simple installation. Working in pairs, the VPBPP eliminates costly and bulky coaxial cable, allowing live CCTV color video signal up to 400m (1300ft).
The superior interference rejection and low emissions ofthe VPBPP allow signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits. This allows the use of a shared or existing cable infrastructure. The VPBPP has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
Example scenarios
Basic application: Direct connection with monitor
Simple application: Four cameras connected to DVR
Full CCTV application: Many cameras to DVR via powered hub.
-
Single Channel Passive Video & Power Transceiver
- 12V or 24V; DC or AC (does not convert voltage or DC↔AC)
- Transmit power signal up to 250m (750ft)
-
Full-motion colour signal up to 400m (1300ft) and
monochrome (B&W) up to 600m (1950ft) via UTP CAT5e/6 -
NTSC, PAL & SECAM video format compatible
- Real-time transmission
- Male BNC with extended mini-coax pigtail
- 8-Way Push Pin terminals
- No power required
- Exceptional interference rejection
- Built-in TVS (Transient Voltage Suppressors) for surgeprotection
- Lightning protection design Grade III
- 50dB crosstalk and noise immunity
- Wave Filter Design, Anti-Static Design
- Compact size and easy installation
- ABS engineering plastic housing
Specifications
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | |
| Video | Video Format | PAL, NTSC, SECAM |
| Operating Frequency | DC to 5MHz | |
| Max Distance |
UTP Category 5e (24AWG)
Color: 400m (1300ft) B&W: 600m (1950ft) |
|
|
Common-mode /
Differential-mode rejection |
15kHz to 5MHz 60dB typical | |
| Impedance | Coax, Male BNC 75Ω unbalanced | |
| UTP, two coax pigtail 100Ω balanced | ||
| Attenuation | 1.5dB Max typical | |
| Wire Type | Network Wiring |
One Unshielded Twisted Pair (for each video signal)
24-16 AWG (0.5-1.31mm) |
| Category Type | 2 or better | |
| Impedance | 100 ±20 ohms | |
| DC Loop Resistance | 18Ω per 100m (52Ω per 1,000ft) | |
| Differential Capacitance | 62 pF/m max (19 pF/ft max) | |
| Power | No external power required to operate | |
| Power input/output |
12 or 24V / 1.5A max;
DC or AC Note: Does not convert voltage or DC/AC |
|
| Connector | Video input/output | Male BNC connector |
| Video input/output | 8-Way Push Pin terminals | |
| Protection | Surge Protection |
Renewable solid state surge protection
Built-in Transient Voltage Suppressor (TVS) |
| Antistatic | Yes | |
| Mechanical | Housing | ABS engineering plastic |
| Body Color | Black | |
| Dimensions (L*W*H) | 65*36*25mm (BNC connector & cable excluded) | |
| Net Weight | 60g | |
| Environmental | Operating Temperature | -20º~ 70º C |
| Relative Humidity | 0~95% (non-condensing) | |
| Storage Temperature | -40º~ 150º C | |
Reference
Balun LEDs
|
|
| Power indicator—power is being transmitted/received | |
| Over-current—maximum current (1.5A) has been exceeded |
Video and Power Balun wiring
| Pin 1 | Pin 2 | Pin 3 | Pin 4 | Pin 5 | Pin 6 | Pin 7 | Pin 8 | |
|---|---|---|---|---|---|---|---|---|
| T568A |
White/
Green |
Green |
White/
Orange |
Blue |
White/
Blue |
Orange |
White/
Brown |
Brown |
| T568B |
White/
Orange |
Orange |
White/
Green |
Blue |
White/
Blue |
Green |
White/
Brown |
Brown |
|
DOSS Video+
Power Balun |
Video | Video | Power – | Power – | Power – | Power + | Power + | Power + |
Power over Twisted Pair: Voltage Drop Reference
|
Transmission
Distance |
Transmission Voltage (Voltage Drop) | ||
|---|---|---|---|
|
12VDC/0.5A
camera requirement |
12VDC/1A
camera requirement |
12VDC/1.5A
camera requirement |
|
| 50m / 160ft | 13.5V (1.5V) | 15.5V (3.5V) | 17.0V (5.0V) |
| 100m / 320ft | 15.5V (3.5V) | 18.5V (6.5V) |
22.0V (10.0V) |
| 150m / 500ft | 17.0V (5.0V) | 22.0V (10.0V) | 27.0V (15.0V) |
| 200m / 650ft | 18.5V (6.5V) | 25.5V (13.5V) | 32.0V (20.0V) |
| 300m / 1000ft | 22.0V (10.0V) | 32.0V (20.0V) | 42.0V (30.0V) |
|
eg: to supply a camera that requires 12VDC/0.5A, over a run of 150m cable, you require an initial transmission voltage supply of 17.0VDC (to account for 5V voltage drop over cable)
Note: based on typical CAT5e cable (will vary on make and quality of cable) |
|||
