Overview

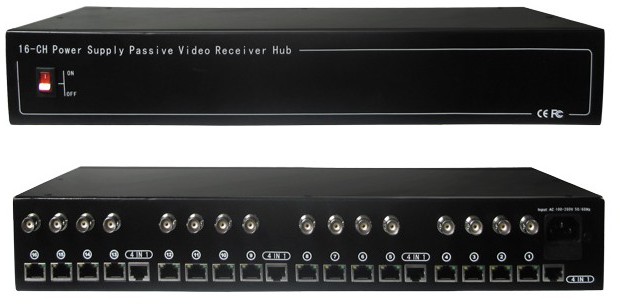

BP16CH12V16A 16CH BALUN HUB W / BUILT IN 12VDC / 16.5A POWER SUPPLY AND 16x VPB45 BALUNS
With the same features and abilities as the DOSS Video+Power baluns, and the convenience of a single box withbuilt-in power supply, the BP16CH12V16A is able to supply 16x CCTV cameras with 12VDC, up to 1A each. Video received from the transmitting baluns is output via 16x Female BNC connections straight into your DVR or other recording device.
Features 16x 8P8C (RJ45) connections for UTP cable, enabling quick and simple installation. Working with the DOSS Passive Video+Power Baluns (included), the BP16CH12V16Aeliminates costly and bulky coaxial cable, allowing live CCTV colour video signal transmission up to 400m (1300ft).
The superior interference rejection and low emissions ofthe BP16CH12V16A allow signals to coexist in the same wire bundle as telephone, datacom, or low-voltage power circuits.This allows the use of a shared or existing cable infrastructure. The BP16CH12V16A has built-in surge suppression to protect video equipment against damaging voltage spikes. Its crosstalk and noise immunity ensure quality video signals.
Example scenarios
16 cameras connected to DVR via powered hub
Many cameras to DVR via powered hub w / long runs.
The DOSS Range of UTP Video+Power Baluns allow you to connect your CCTV system using cheaper, thinner, lighter andmore readily available CAT5E cable rather than expensive andbulky RG59U cable.
The passive (non-amplified) baluns allow transmission of realtime CCTV video signals and power over cost-effective Unshielded Twisted Pair (UTP) cable, without any compression, loss or signal degradation and without the needfor extra power supplied to be installed. Sending camera power over the same twisted pair as video means less cabling, and no power supply required to be installed near to the camera. Baseband (composite) signals of any type are supported.
Features
- 8-Channel Video & Power Server (required to use with VPB45 Tx or VPBPP Tx)
-
Receive colour video signals from up to 400m (1200ft) and
full motion monochrome (B&W) video signals from up to 600m (1800ft)
via Unshielded Twisted Paired (UTP) wires -
Don’t need extra power supply for camera;
- 12VDC/16.5A supply built-in
-
Input Power:
- 176~264VAC 50Hz
- 90~130VAC 60Hz
- Transmit 12VDC Power up to 250m (750ft)
- BNC male and RJ45 Jack;
-
4x 4-in-1 Video outputs via RJ45 (single UTP cable)
- for use with DOSS VB8CH 8CH Passive Video Balun (see example above)
- NTSC, PAL & SECAM video format compatible
- Real-time transmission;
- Exceptional interference rejection;
- Built-in TVS (Transient Voltage Suppressors) for surgeprotection;
- Lightning protection design Grade: III
-
Wave Filter Design, Anti-Static Design,
- Confirm to IEC 61000-4-2:1995 Standard
- Metal housing: Black
- Rack Mount With Wall Mount Capability
Specifications
| Applied Devices | CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment | |
| Video | Video Format | PAL, NTSC, SECAM |
| Operating Frequency | DC to 5MHz | |
| Max Distance |
UTP Category 5e (24AWG)
Colour: 400m (1300ft) B&W: 600m (1950ft) |
|
|
Common-mode /
Differential-mode rejection |
15kHz to 5MHz 60dB typical | |
| Impedance | Coax, Male BNC 75O unbalanced | |
| UTP, two coax pigtail 100O balanced | ||
| Attenuation | 1.5dB Max typical | |
| Wire Type | Network Wiring |
One Unshielded Twisted Pair (for eachvideo signal)
24-16 AWG (0.5-1.31mm) |
| Category Type | 2 or better | |
| Impedance | 100 ±20 ohms | |
| DC Loop Resistance | 18O per 100m (52O per 1,000ft) | |
| Differential Capacitance | 62 pF/m max (19 pF/ft max) | |
| Power | No external power required to operate | |
| Power input/output |
Input: 176~264VAC 50Hz / 90~130VAC60Hz
|
|
| Connector | Video input/output | 16x Female BNC connector |
| Video input/output | 4x 8P8C (RJ45) Video (4-in-1) | |
| Balun input | 16x 8P8C (RJ45) Video+Power | |
| Protection | Surge Protection | Built-in Transient Voltage Suppressor (TVS) |
| Antistatic | Yes | |
| Mechanical | Housing | Metal |
| Body Colour | Black | |
| Dimensions (L*W*H) | mm | |
| Net Weight | ||
| Environmental | Operating Temperature | -20°~ 70°C |
| Relative Humidity | 0~95% (non-condensing) | |
| Storage Temperature | -40°~ 150°C | |
Reference
Balun LEDs
.rpg_table4 { border-collapse: collapse } .rpg_table4 th, .rpg_table4 td { padding: 0px 4px !important; } .rpg_table4 td, .rpg_table4 th { text-align: left; vertical-align: middle; border-top: none 0px !important; border-bottom: none 0px !important; }
|
|
| Power indicator—power is being transmitted/received | |
| Over-current—maximum current (1.5A) has been exceeded |
Video and Power Balun wiring
|
DOSS Video &
Power Baluns |
T568A | T568B | |
|---|---|---|---|
| Pin 1 | Video | White/Green | White/Orange |
| Pin 2 | Video | Green | Orange |
| Pin 3 | Power – | White/Orange | White/Green |
| Pin 4 | Power – | Blue | Blue |
| Pin 5 | Power – | White/Blue | White/Blue |
| Pin 6 | Power + | Orange | Green |
| Pin 7 | Power + | White/Brown | White/Brown |
| Pin 8 | Power + | Brown | Brown |
Power over Twisted Pair: Voltage Drop Reference
.rpg_table2 { border-collapse: collapse } .rpg_table2 th, .rpg_table2 td { padding: 5px; } /*.rpg_table2td { width: 80px; }*/ .rpg_table2 td, .rpg_table2 th { text-align: center; vertical-align:top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table2 th, .rpg_table2 .header { font-weight: bold; text-align: left }|
Transmission
Distance |
Transmission Voltage (Voltage Drop) | ||
|---|---|---|---|
|
12VDC/0.5A
camera requirement |
12VDC/1A
camera requirement |
12VDC/1.5A
camera requirement |
|
| 50m / 160ft | 13.5V (1.5V) | 15.5V (3.5V) | 17.0V (5.0V) |
| 100m / 320ft | 15.5V (3.5V) | 18.5V (6.5V) |
22.0V (10.0V) |
| 150m / 500ft | 17.0V (5.0V) | 22.0V (10.0V) | 27.0V (15.0V) |
| 200m / 650ft | 18.5V (6.5V) | 25.5V (13.5V) | 32.0V (20.0V) |
| 300m / 1000ft | 22.0V (10.0V) | 32.0V (20.0V) | 42.0V (30.0V) |
|
eg: to supply a camera that requires 12VDC/0.5A, over a run of 150m cable, you require an initial transmission voltage supply of 17.0VDC (to account for 5V voltage drop over cable)
Note: based on typical CAT5e cable (will vary onmake and quality of cable) |
|||
Applications
- Security Monitoring System
- Multimedia Network Teaching System
- Medical Monitoring Display System
- Industrial Automation Control System
- Banking, securities, financial information display system
- Remote Network Server Monitoring
- Department Store Security
- Casino Security
- Hospitals, Airports and banks
- School Campuses
Contents
- 1x BP16CH12V16A 16CH Balun Hub with Power
- 16x VPB45 Passive Video+Power Balun (Transmitters only)
- 16x BNC Plug to BNC Plug patch leads (60cm)
-
2x Mounting brackets
- incl 8x screws
- 4x Self-adhesive rubber feet
- 1x AU IEC power cord
- Instruction manual
