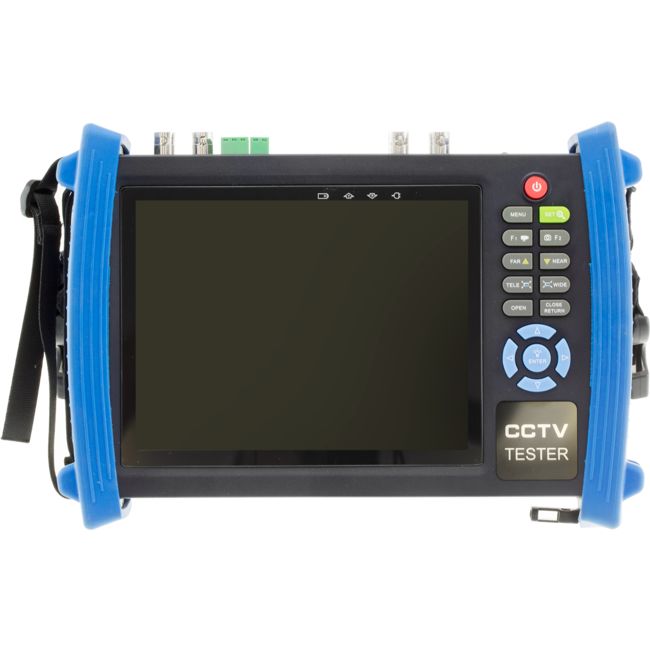

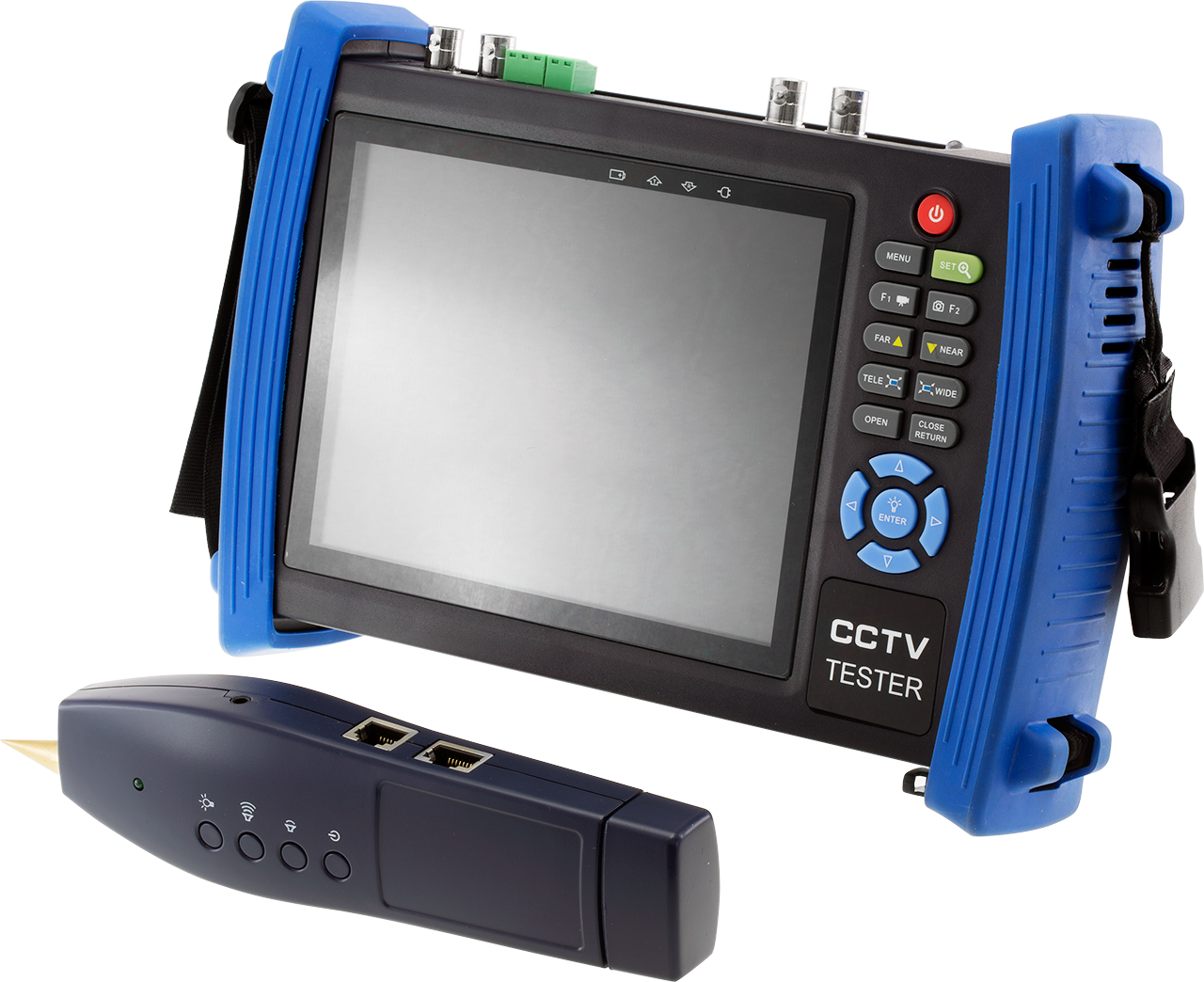

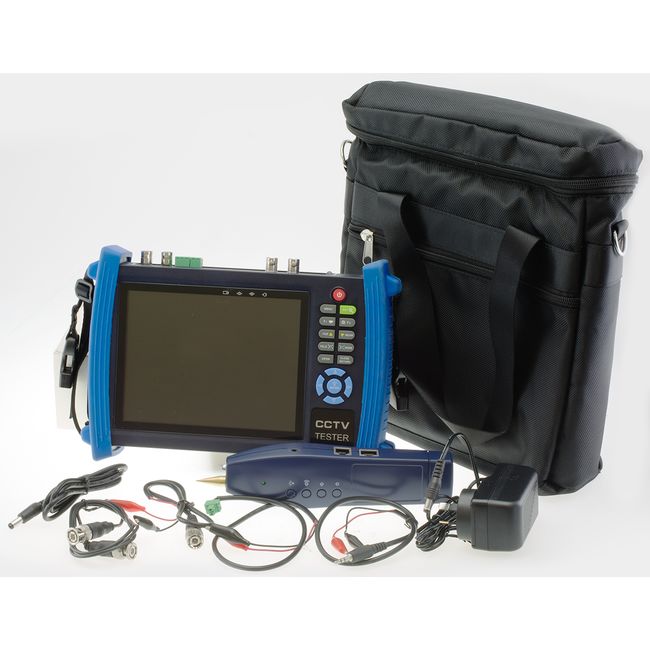

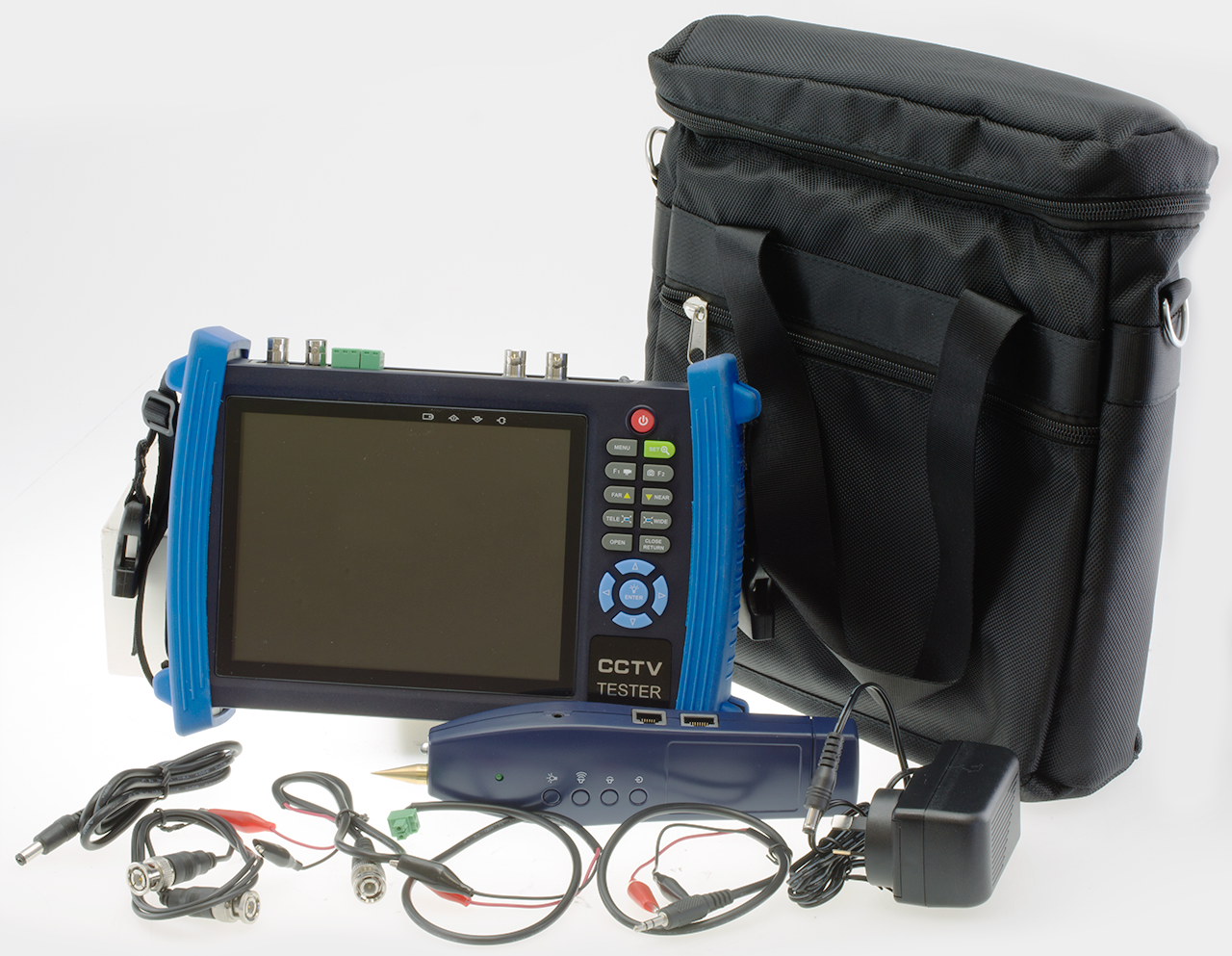

M700SDI
43150580
Features

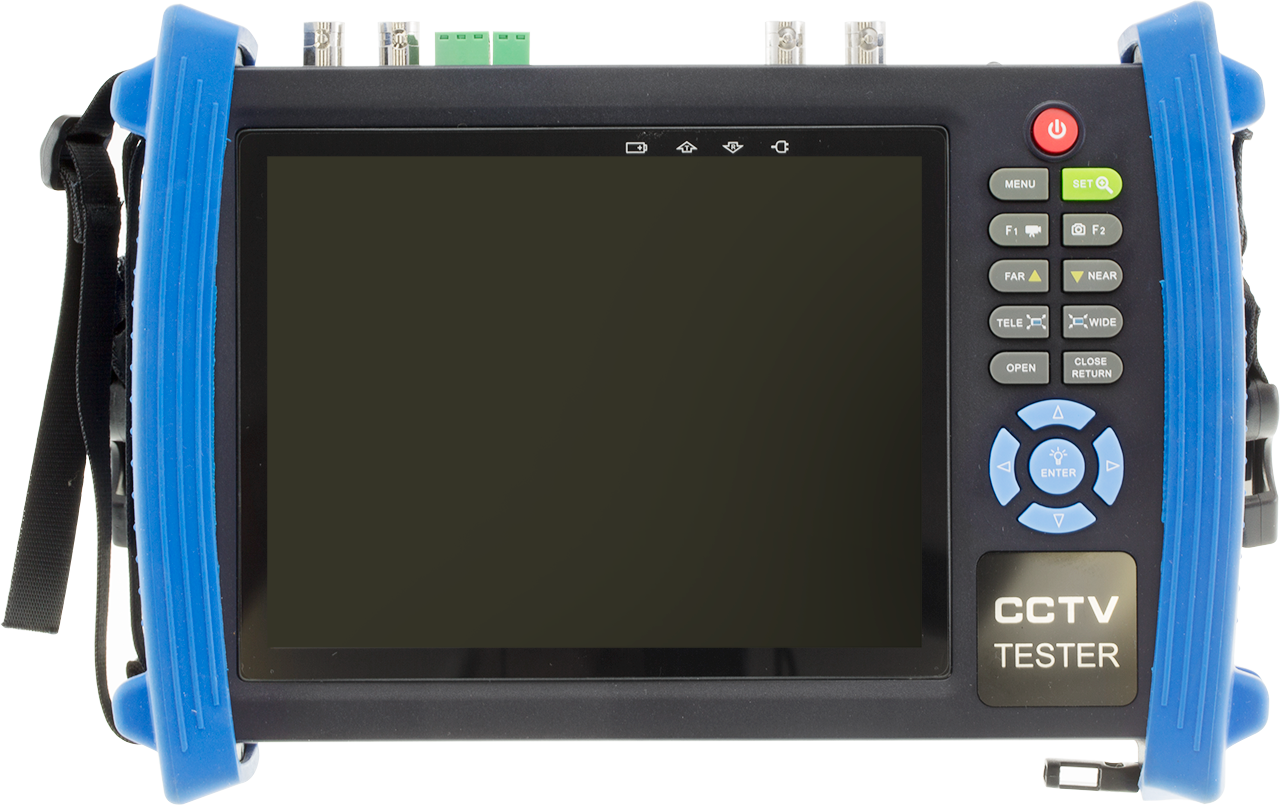

M700SDI offers a wide range of features to simplify CCTV camera installations. It is capable to test power, focus andaim your cameras locally without a trip back to the control room. The unit´s bright screen and easy to use menu are ideal for outdoor use.
The CCTV HD-SDI Tester is designed for the installation and maintenance of the video monitoring system. It is an ideal tool for CCTV security system of SDI digital camera and analog camera. It is easy to operate and can be used for analog camera, SDI HD digital camera, camera with PTZ control and video in and video out.

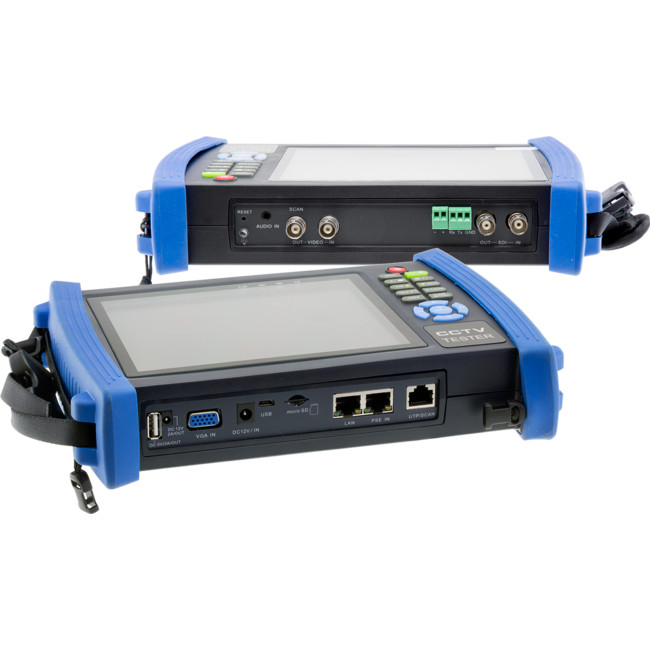

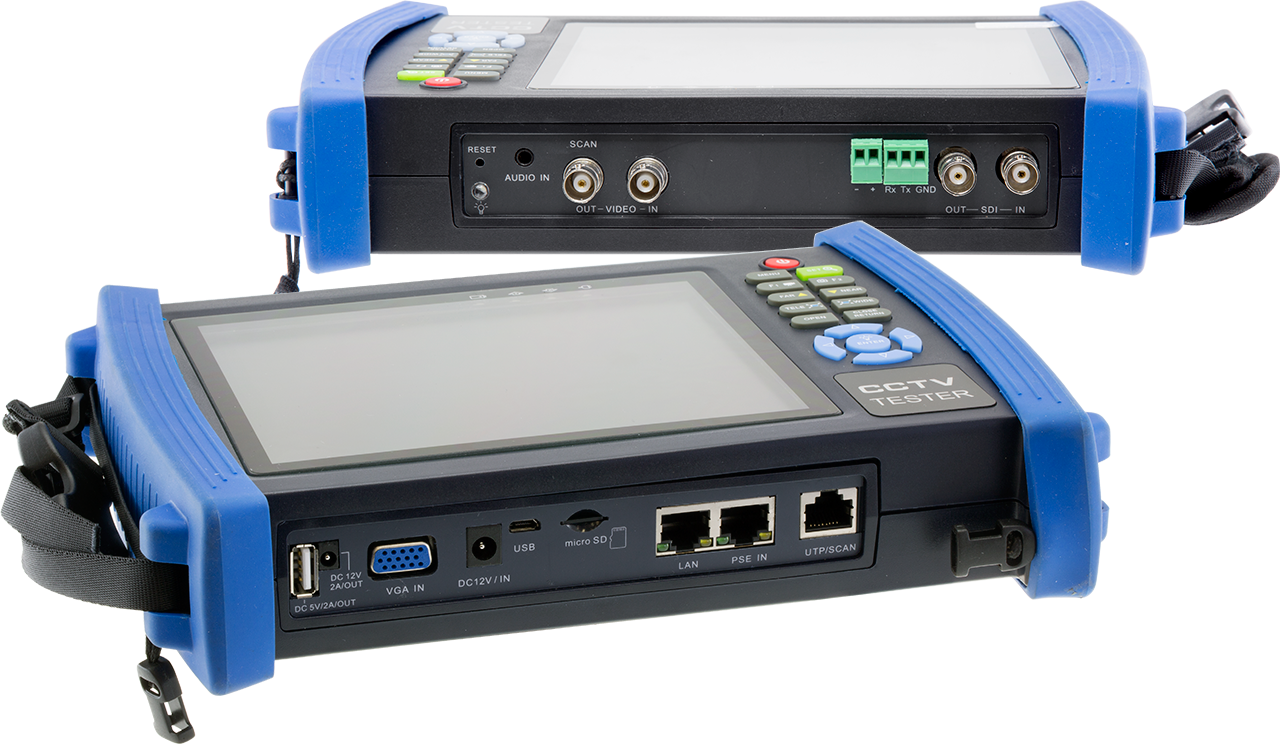

- 7 Inch LCD display screen with 800×600 resolution (supports 1080×720 and 1920×1080 inputs)
- HD-SDI Video in & out
- VGA/BNC connect in
- Display analog camera image and PTZ Control
- Detect video peak level, SYNC level, Colour Burst etc
- LAN tests: IP address search, PING, Port scan testing etc.
Please note:
The SDI and HD-SDI input is for progressive scan inputs only (NOT interlaced).
Specifications
| Display | 7 inch TFT-LCD, 800×600 resolution |
|---|---|
| HD-SDI signal |
SDI video in (BNC) x1,
SDI video out (BNC) x1 |
| Analog video signal |
BNC video in x1,
BNC video out x1 PAL/NTSC auto-change |
| VGA signal | VGA in x 1 |
| Video level meter | video Peak level, SYNC level, Colour Burst measurement |
| Audio input | Test if the audio of other equipment works normally |
| PTZ Protocol |
support more than 30 protocols, such as RS232/RS485, PELCO D/P, Samsung, Panasonic, Lilin, Yaan, etc.
Baudrate: 600-115200 bps |
| Color bar generator | Output one channel PAL/NTSC color bar video signalfor testing monitor or video cable (red, green, blue, white and black color) |
| UTP cable tester | Test and identify twisted pair wires |
| Data Monitor | Capture and display the command data of RS485/RS232 from controlling device. |
| Photograph, Video record and playback |
Snapshot, Video record, Playback
SD card storage |
| Communication port | 10/100M adjustable, RJ45 |
| Network testing | IP address scan, Link monitor, PING test, Scan theID of the PTZ camera quickly |
| PoE tester | Display the power supply voltage and the cable connection status |
| Cable scan | Trace cables by audio probe |
| Power out-1 | DC 12V output, Max.2A |
| Power out-2 | DC 5V output, Max.2A |
| Power adapter | DC12V 2A |
| Battery | Built-in 7.4 V polymer li-ion battery, capacity of6500mAh |
| Rechargeable | working time lasts 16 hours after 8-10 hours charge |
| Operation setting | English/Chinese OSD menu optional |
| Auto off | 5-60 mins |
| Working temperature | -10 to 50°C |
| Working humidity | 30%~90% |
| Dimension / Weight | 231 x 172 x 52 mm / 1.3 kg |
Downloads
M700SDI CCTV Tester User Manual pdf; 2.41MB
