D305
43150571
Features
- The perfect tool for any security/surveillance installer
- Lets you test any camera or monitor remotely in both IP and analog installations
- Significantly reduce installation time and save hours of labour field focusing analog cameras, testing IP network connections, setting up and testing PTZ protocols and settings, troubleshooting signal problems, and testing of CAT5 cable connections with one, easy to use tester

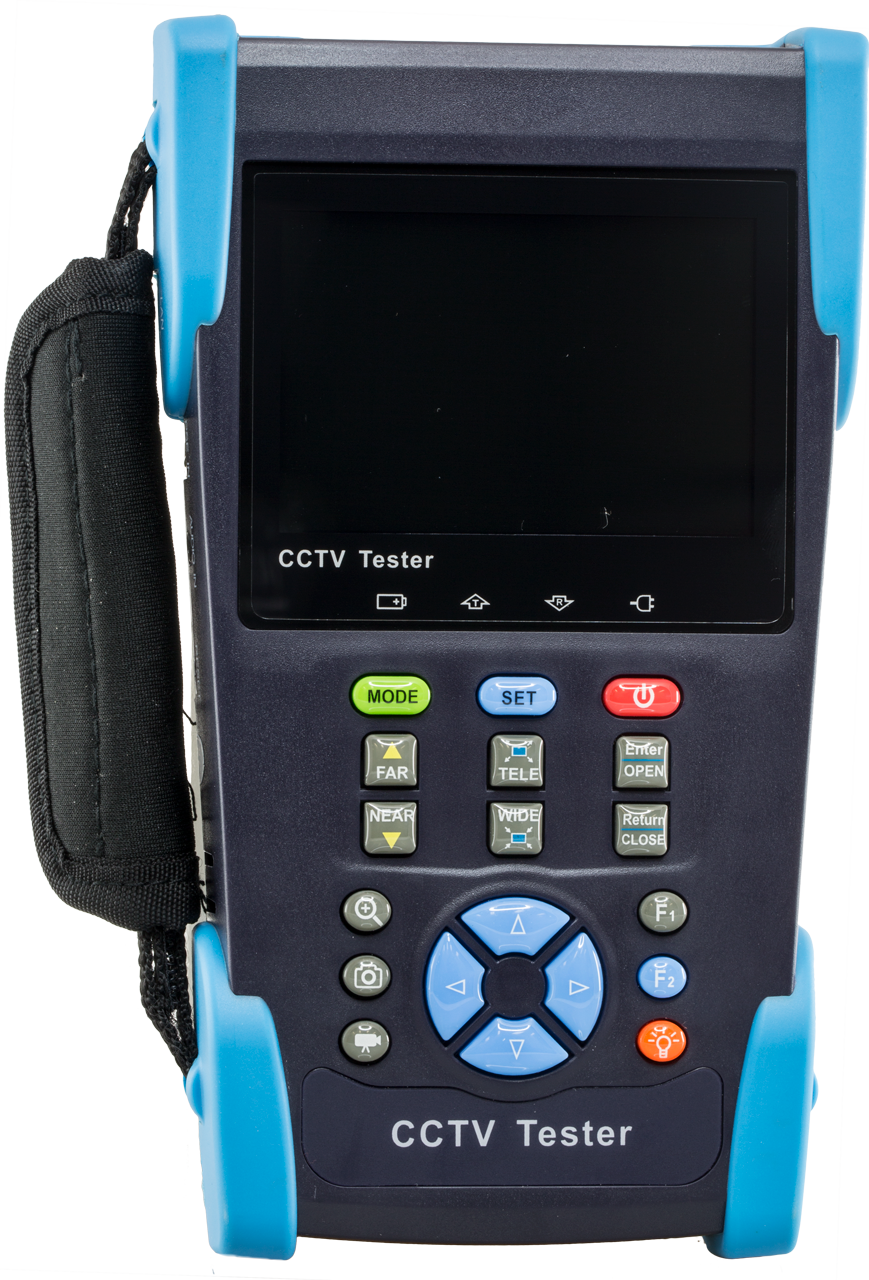

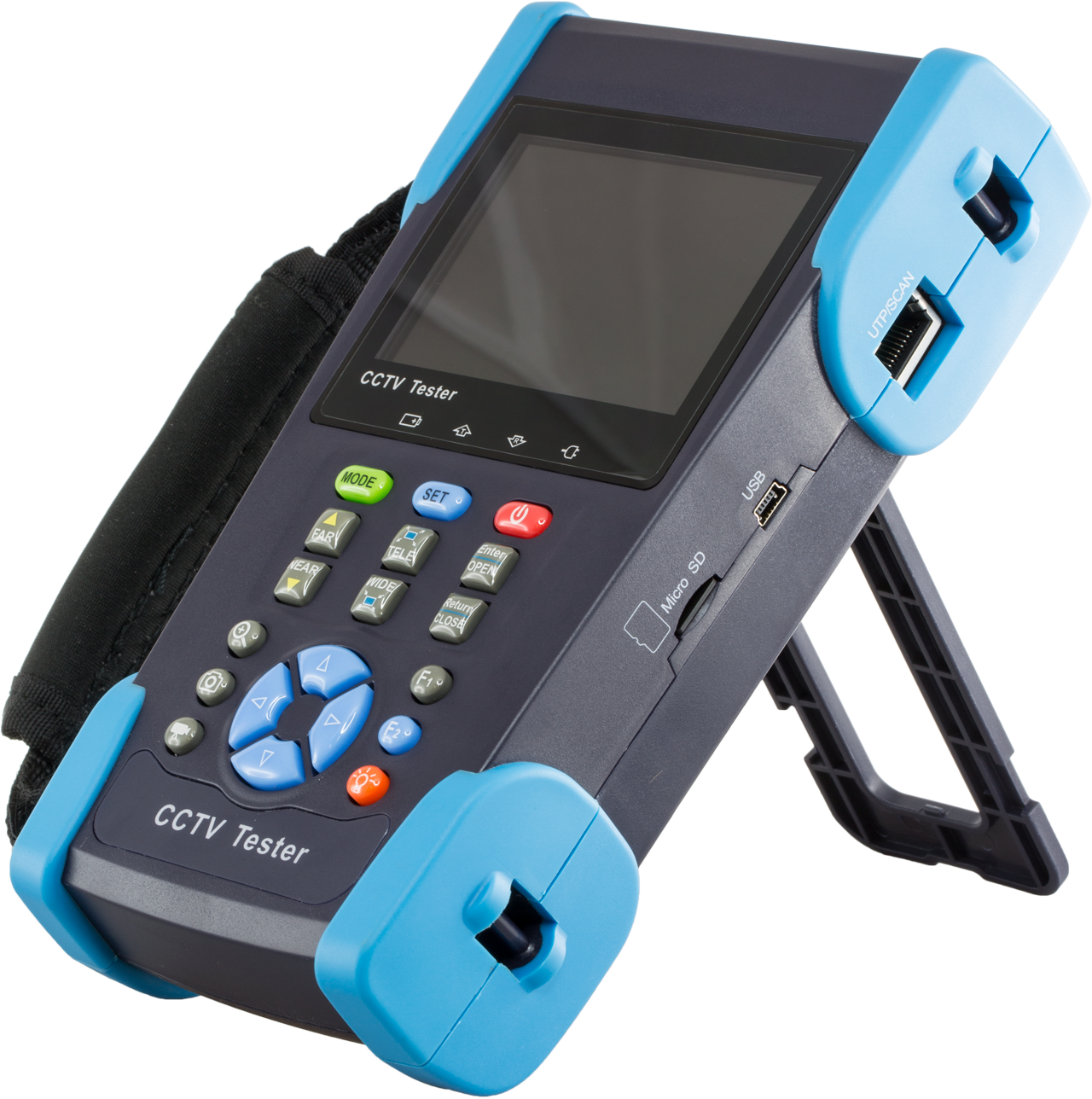

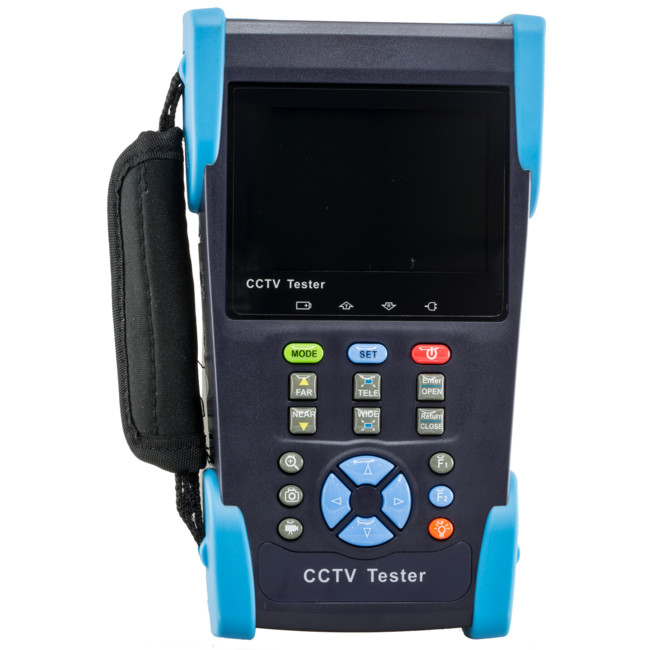

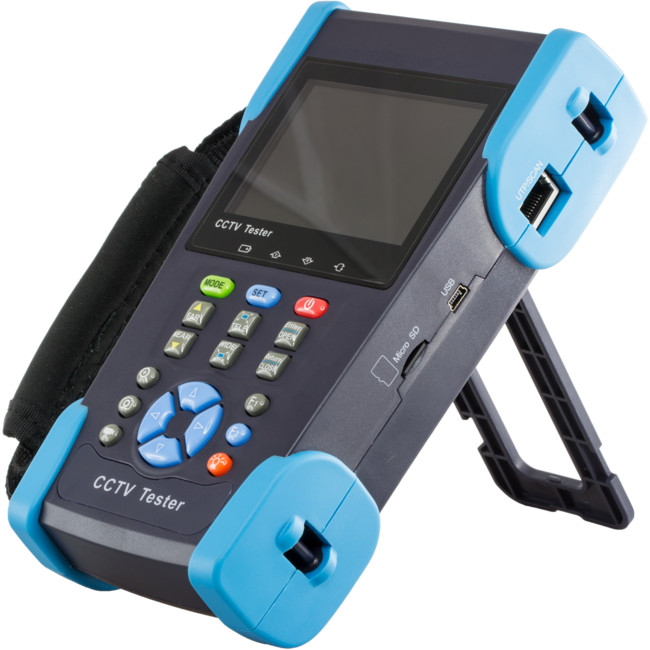

The new Doss D305 CCTV tester is designed for on-site installation and maintenance of IP cameras, analog cameras and network devices and features video display, PTZ control, DC 12V output power, audio test, colour bar generator, RS485 data searching and cable testing.
The newly upgraded functions include POE power supply testing, Ping testing, IP address scan, video snapshot, video record, image magnification, port flickerand much more.
This new tester was designed for easy operation and great portability. It is an extremely handy tool for technicians and installers to install and maintain CCTV systems and greatly improves work efficiency.
- 3.5" LCD Screen
- Designed for IP or analog cameras
- 10x zoom in function on tester for perfect focus and setup
- Compatible with more than 30 protocols including PELCO-D/P, Samsung, Panasonic and more
- Video playback, snapshot, video record and playback

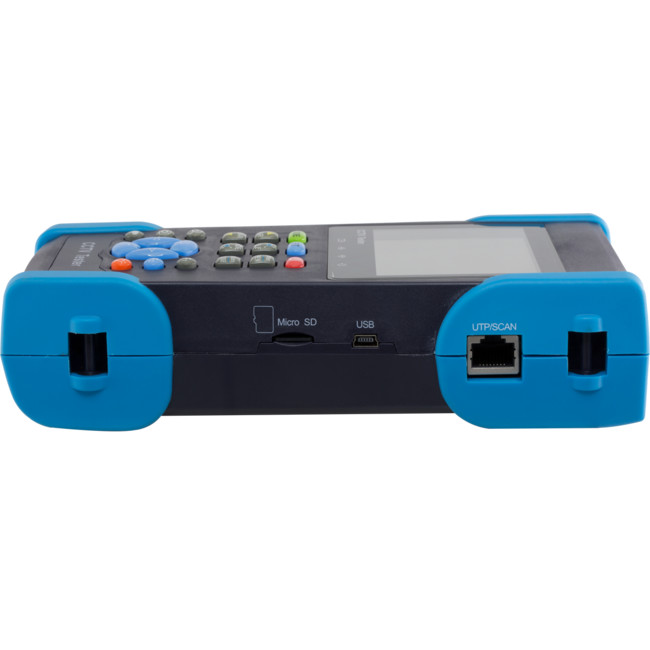

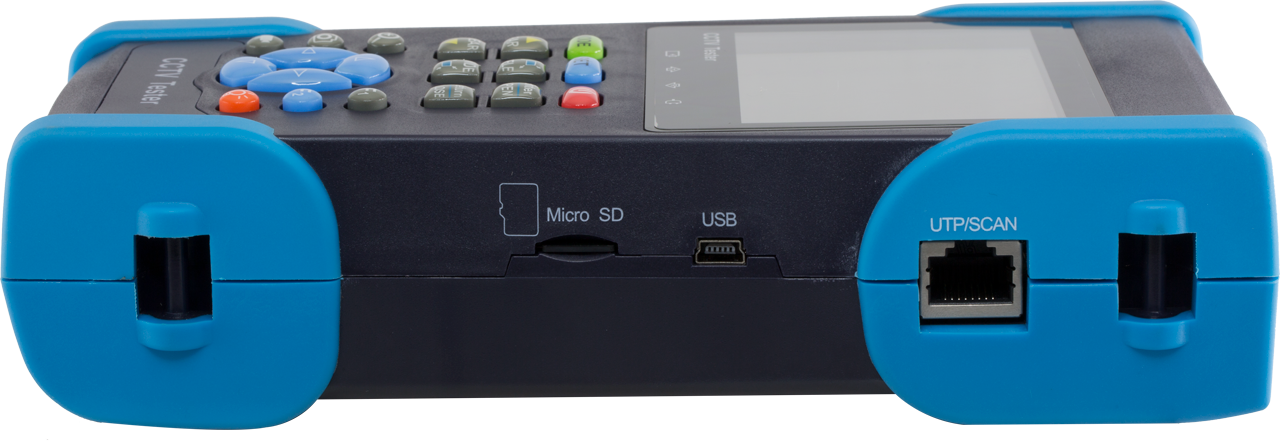

- MicroSD card slot to storing snapshots and recordings
- Send colour bar image through analog video output port to video transmission test channel to determine brightand black spots
- Video signal strength level
- Analog camera display and PTZ control
- IP address search & PING testing for IP conflicts
- Capture and analyze command data from controlling device
- POE voltage measuring
Functions
- Video signal testing
- Video signal level testing
- PTZ controller setup and testing
- Enhanced colour bar generator
-
12V/1A direct power output
– ideal for directly powering a camera during the setup and testing phase -

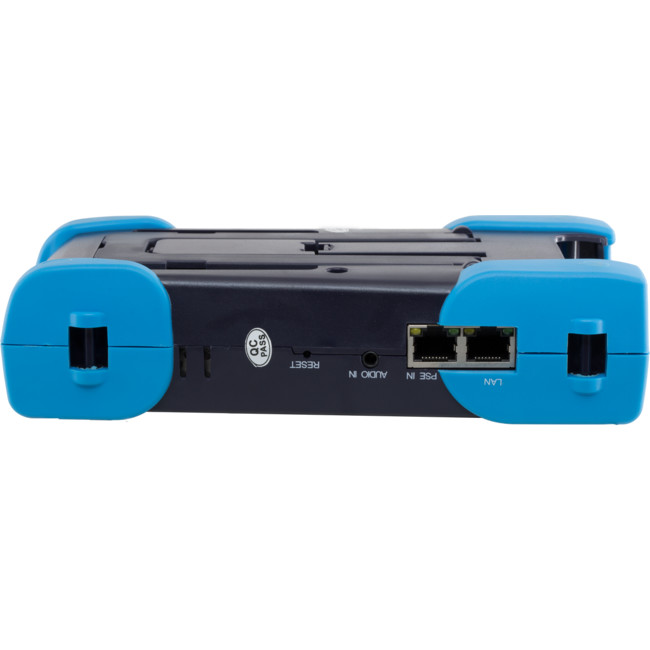

Audio testing
– connect any audio pickup device to the - Cable tester
- Image magnification (10x zoom)
- Video snapshot
- Video recording
- Video playback
-
Port flicker
– Sends a special signal that will make that allows for easy identification of active POE port -
IP address scan
– scan and identify all connected IP devices in the network -
Link monitor
– checks whether the chosen IP address is valid within the network or not - Ping test
- POE tester

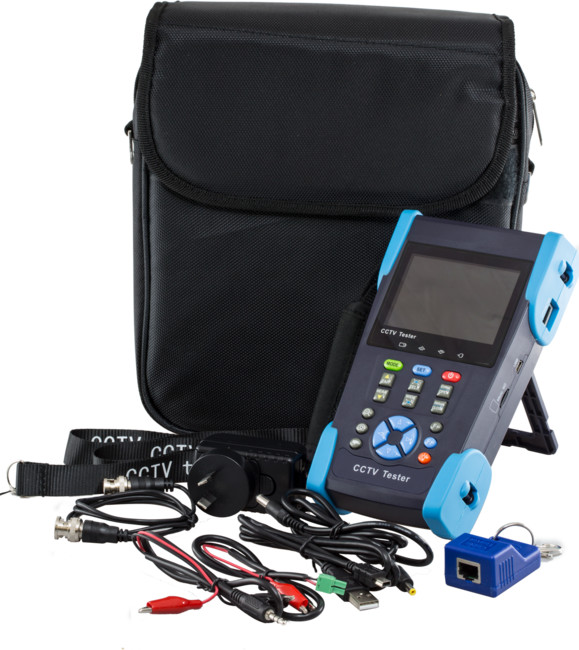

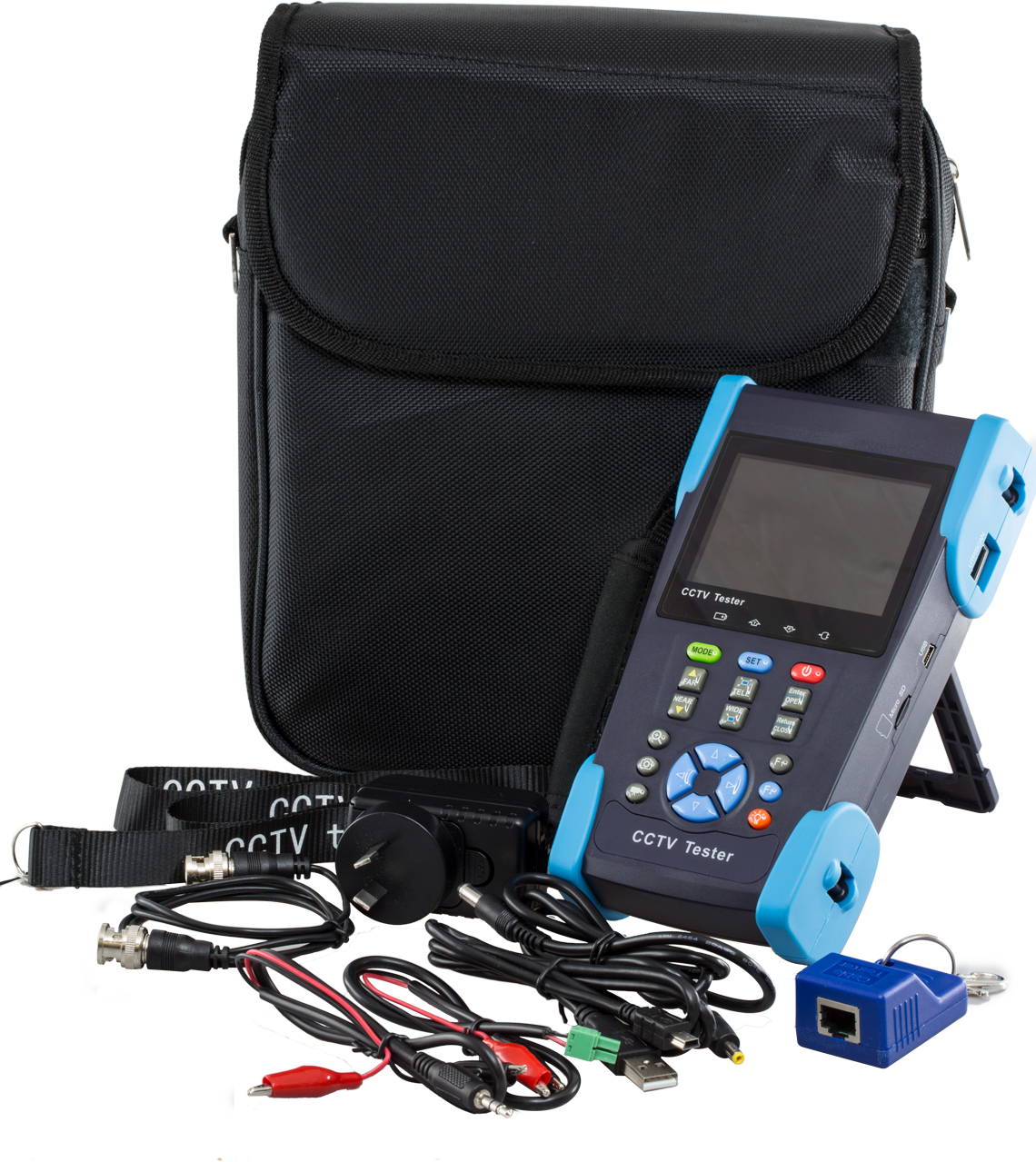

What’s in the Box
- CCTV Tester
- Carry bag + strap
- Lanyard
- 5V 2A USB DC power supply
- USB-A to mini-B lead
- DC power lead
- BNC lead
- 2x alligator clips to 3.5mm lead
- 2x Alligator clips to terminal plug lead
- Keychain cable tester
- User manual
Specifications
Display | 3.5 inch Digital TFT-LCD,480X320 resolution |
LCD Adjustment | Brightness, Contrast, Saturation adjustable |

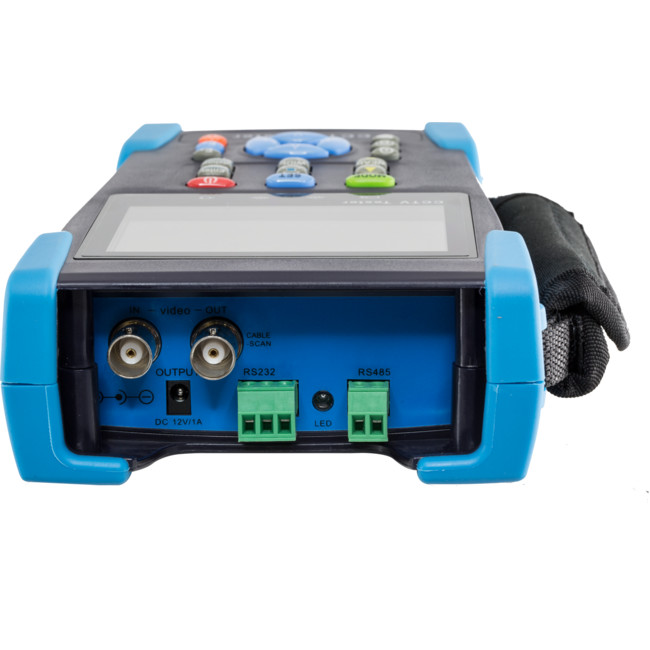

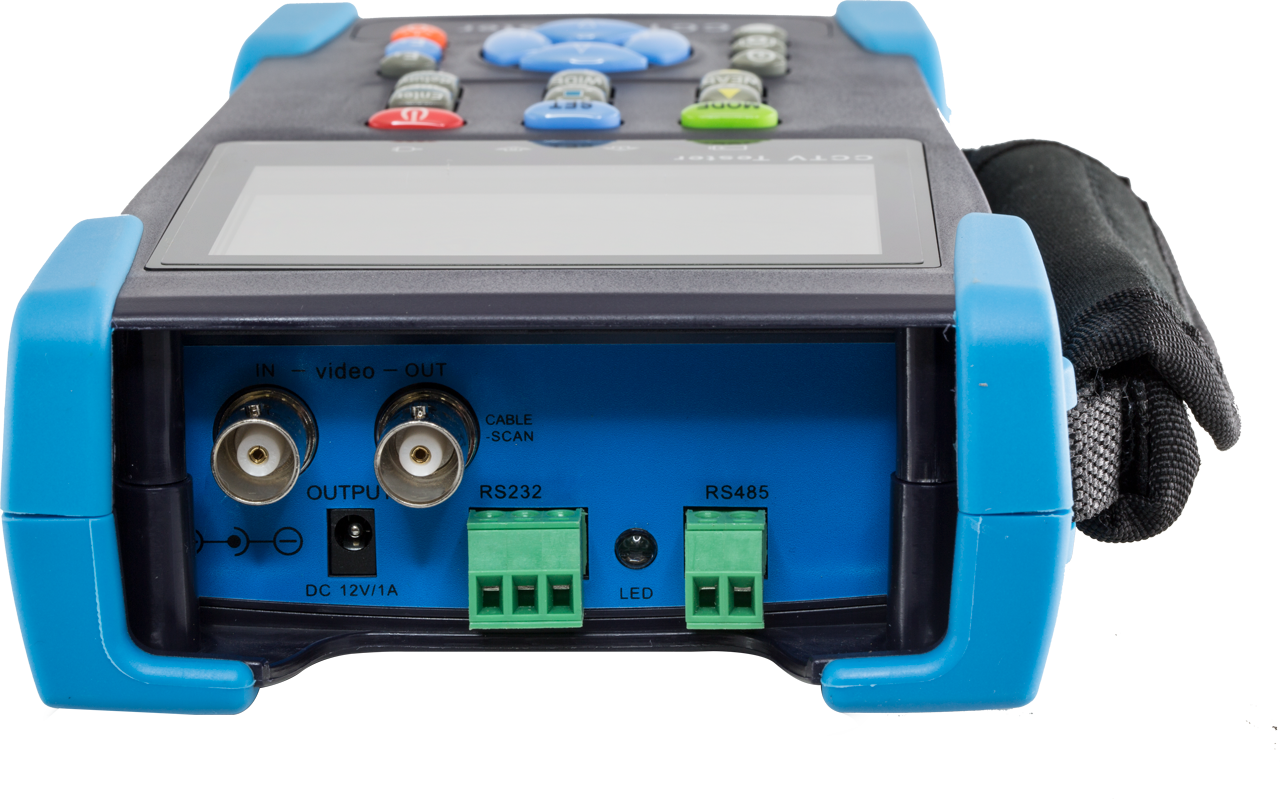

Analog Video Signal | 1*BNC video in, 1*BNC video out Pal/NTSC auto-change |
Video Output Mode | 1.0 Vp-p |
Video Level Test | Video signals measured in IRE or mV |
Audio Input Test | Equipment audio test |
PTZ Controller | Supports RS232/RS485, |
Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. | |
Baudrate:600,1200,2400,4800,9600,19200,57600,115200b ps | |
Colour Bar Generator | For monitor or cable testing. (red, green, blue, white and black color) |
UTP Cable Test | Testing of connected cable sequence and identifier No. |
Data Monitoring | Store and analyze command data from controlling device |
Photograph, Video Record and Playback | Snapshot, Video record (only for BNC signal), viewthe storage file in the SD card (supports up to 32 G) |
10x Zoom | 10x zooming and video out |
Network Test | Identifying IP address of the connected IP camera or other network equipments |
PING Test | Test if the IP address occupied |
POE Tester | Display power supply voltage and the cable connection status |
Port Flicker | Identifying connected POE port |
Power Out | DC 12V output, Max.1A for camera |
Power Adaptor | DC12V 1.5A |
Battery | Built-in 3.7 V polymer li-ion battery, capacity of 3000mAh |
Recharge Time | Working time lasts 11 hours after 3-4 hours charged. |
Operation Setting | English/Chinese and other languages OSD menu optional |
Auto Off | 5-60 mins |
Working Temperature | -10°C-50°C |
Working Humidity | 30%-90% |
Demension |
194*112*48 mm |
Weight | 600g |
