Features

CCTV Calculator Calculate everything!
  • 1/​3" Sony Super HAD II CCD
  • NEXTCHIP 2040 DSP Chipset
  • 700TVL Resolution
  • Super wide 120° angle of view!
  • 5-10m IR Range


DOSS DVR Training Videos

Click here to watch the DOSS Security Camera Training 2013 series

Sell sheet download

Download the latest DOSS CCTV Cameras Sellsheet

Specifications

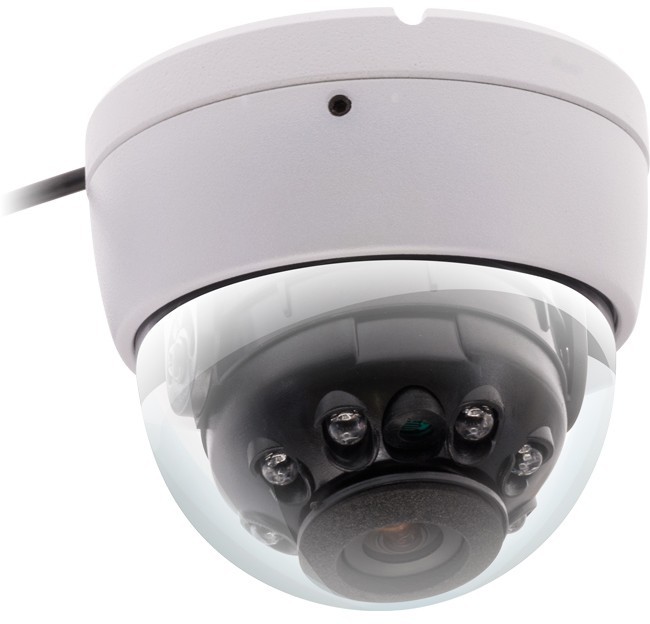

Model WIDEDOME

Sensor

 1/​3" Sony Super HAD II CCD
DSP NEXTCHIP 2040
Resolution 700TVL
Effective Pixels NTSC: 768 x 494
PAL: 752 x 582
Lens 2.8mm
Lens Type Fixed
Lens Origin China
Approx View Angle (H) 120°
IP Rating IP65
IR LEDs 6x Ø5mm
IR Range 5m – 10m
Adjustable IR Brightness yes
WDR (Wide Dynamic Range) no
Sens-up no
OSD no
Inline Controller no
Noise Reduction no
Backlight Compensation no
Image Colour Adjustment?
(ie brightness/​contrast / tone/​saturation/​sharpness) 		no
Mirror function
(Horiz / Vert / Rotate) 		no
Privacy Zones no
Motion Detection Zones no
RS-485 no
Power
(with IR on where applicable) 		12VDC / 400mA
Dimensions 72Øx64H

About Sony CCD Sensors

Sony’s Super HAD CCD II offers improved characteristics over the Super HAD CCD Sensor and other CCD Sensors.

  • Less space between On-chip microlenses and lightsensors
  • Improved and longer life colour filters
    • Up to 100 times the life of previous colour filter
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • Increased sensitivity to near IR range
    • Lower noise
Microlens
Structure
Other CCD Sensors Sony Super HAD II CCD
