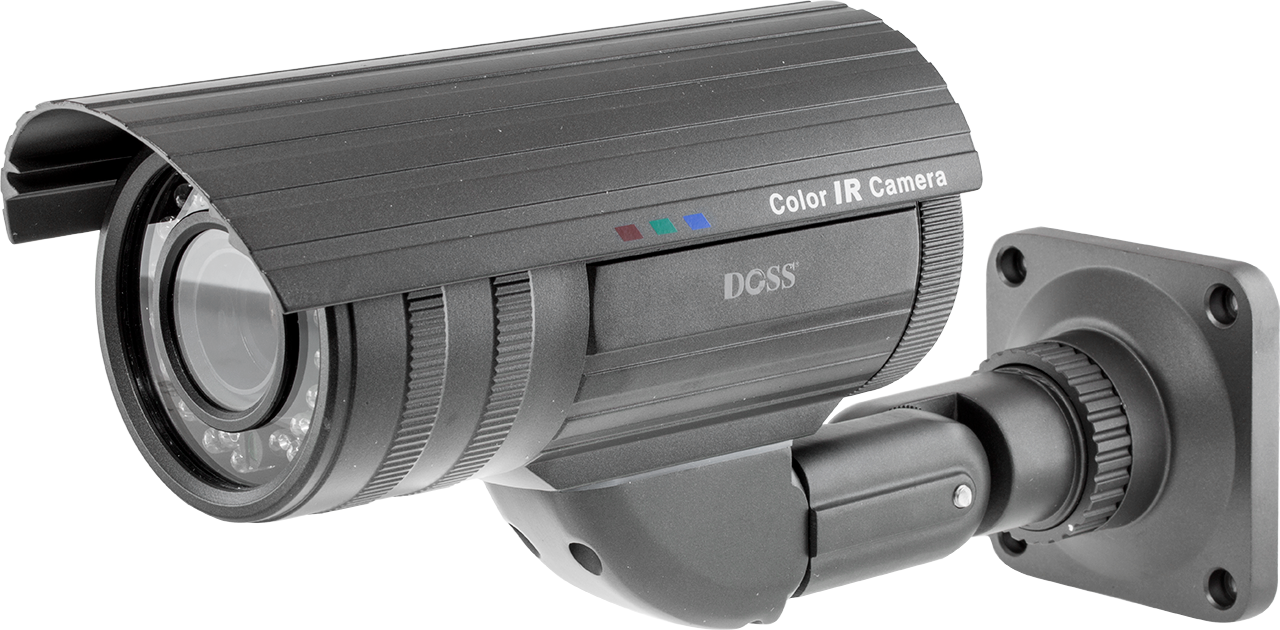

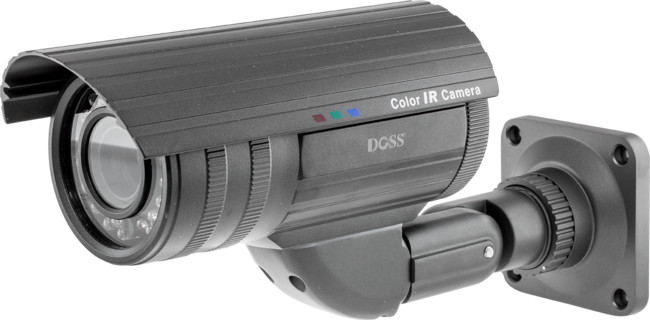

IN30PRO – 700TVL SECURITY CAMERA 30M IR

The IN30PRO has had an upgrade, sporting the Sony Super HAD II CCD and the Sony Effio-V DSP Chipset, means picture quality and feature list have improved!

Sony Super HAD II CCD
Sony Effio-V DSP Chipset
700TVL Resolution
31° to 124° range of view (manually adjustable)
20m – 30m IR Range

Click here to watch the DOSS Security Camera Training 2013 series

Model	IN30PRO
Sensor	1/3" Sony Super HAD II CCD
DSP	Sony EFFIO-V
Resolution	700 TVL
Effective Pixels	NTSC: 976 x 494 PAL: 976 x 582
Lens	2.8mm – 11mm
Lens Type	Manual
Lens Origin	Korea
Approx View Angle (H)	124.3° – 30.2°
IP Rating	IP66
IR LEDs	36x Ø5mm
IR Range	20m – 30m
Adjustable IR Brightness	yes (manual)
WDR (Wide Dynamic Range)	Super WDR
Sens-up	yes
OSD	yes
Inline Controller	no
Noise Reduction	3D-NR
Backlight Compensation	HLC/BLC/OFF
Image Colour Adjustment? (ie brightness/contrast / tone/saturation/sharpness)	yes
Mirror function (Horiz / Vert / Rotate)	H / V / R
Privacy Zones	15
Motion Detection Zones	4
RS-485	no
Power (with IR on where applicable)	12VDC / 450mA
Dimensions (excluding mount)	173Lx78Wx77H

Download the latest DOSS CCTV Cameras Sellsheet pdf

Sony’s Super HAD CCD II offers improved characteristics over the Super HAD CCD Sensor and other CCD Sensors.

Less space between On-chip microlenses and lightsensors
Improved and longer life colour filters
- Up to 100 times the life of previous colour filter
Larger light sensors and larger sensor apertures
- Higher light sensitivity and improved spectral sensitivity
- Increased sensitivity to near IR range
- Lower noise

Microlens
Structure

Other CCD Sensors

Sony Super HAD II CCD

New in 2013, the DOSS range of cameras are being upgraded with Sony Effio DSP (Digital Signal Processor) chipsets for superior images and features—first and foremost, introducing 700TVL resolution across our range!

Sony’s Effio-V DSP Chipset supports the following features*:
