SM568W
33774605
Features

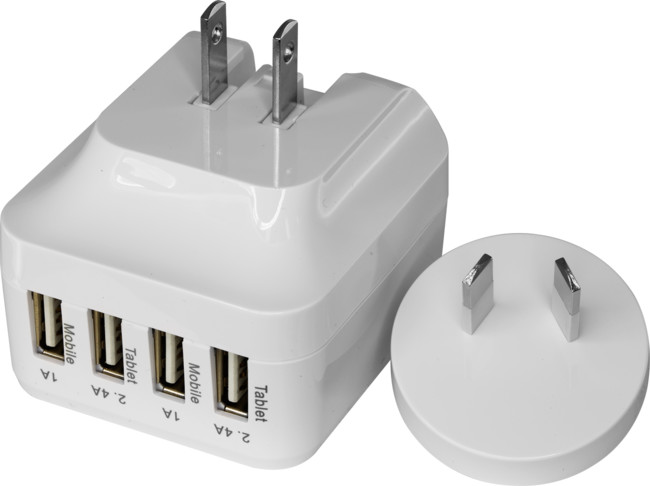

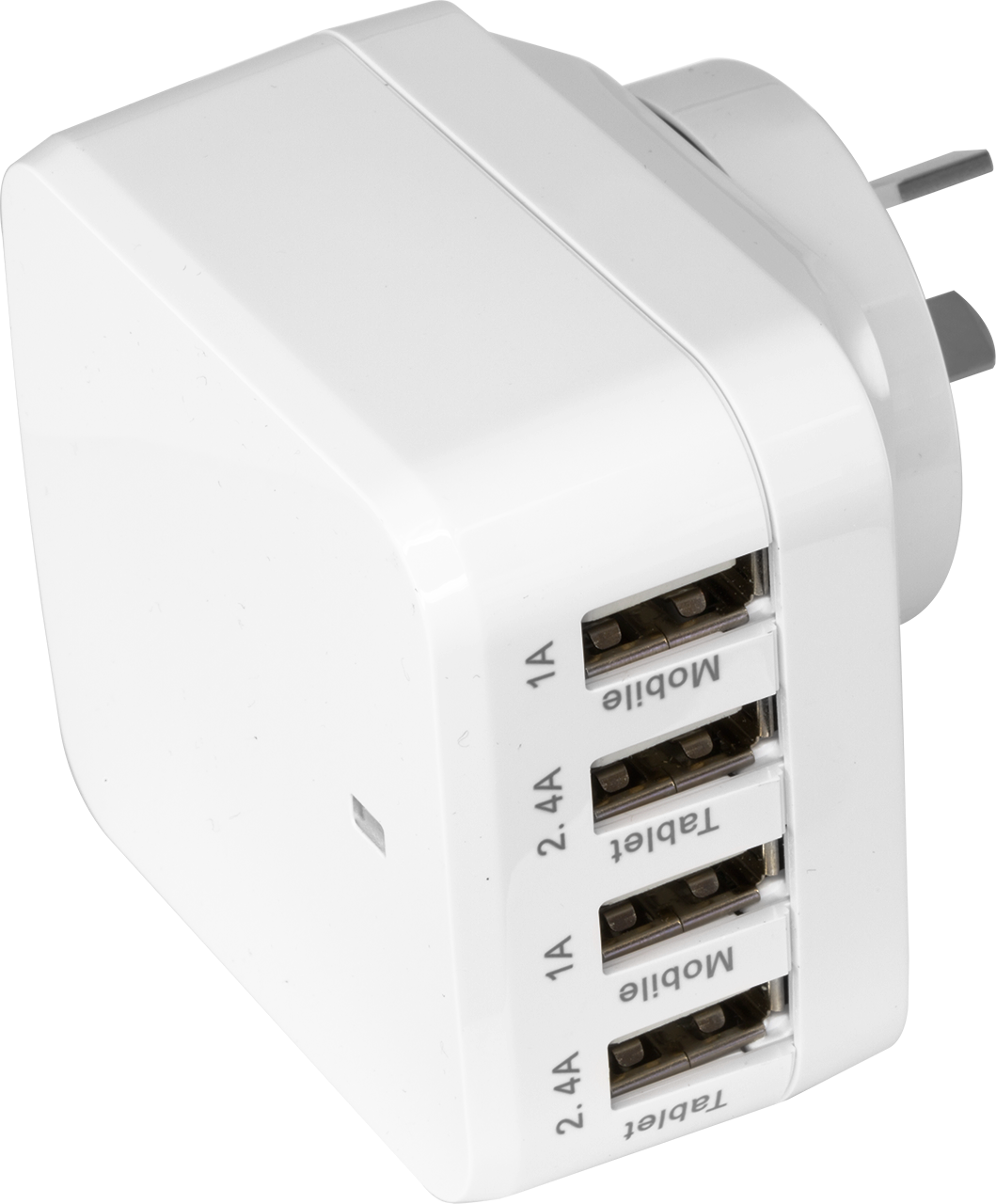

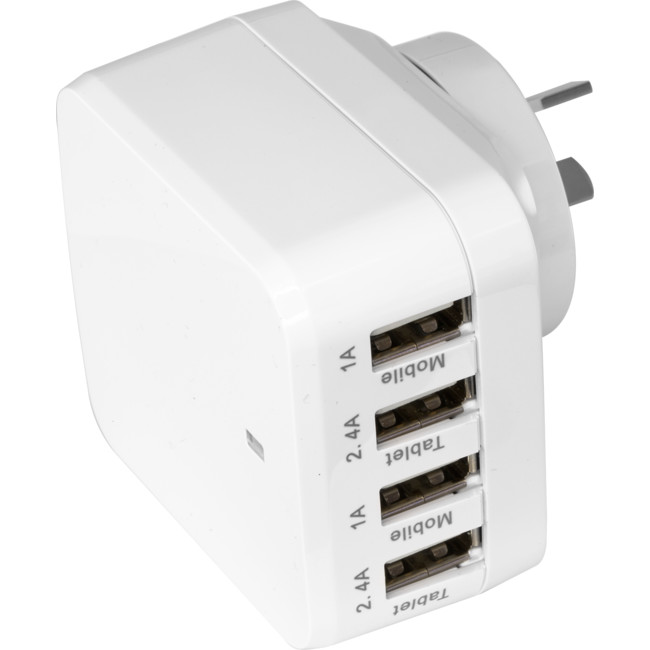

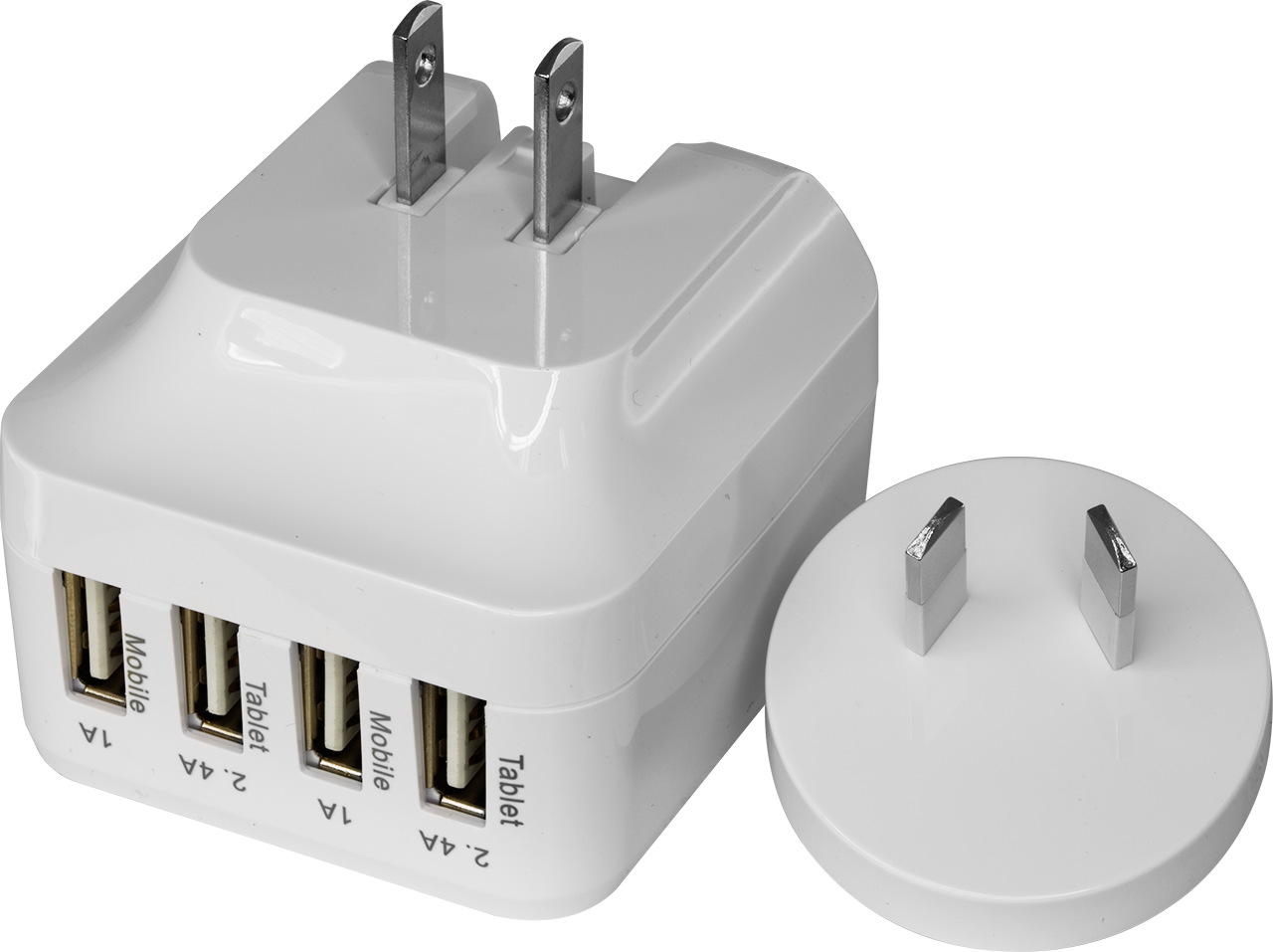

Charge everything you need in one place. The SM568 4-PortUSB Charger for Mobile Devices charges up to four of your mobile devices, including mobile & smartphones, iPod, PDAs and more, at the same time from just one wall outlet. Interchangable adaptors can suit worldwide powerpoints. It is a must thing you need to carry when travelling.
- 4x USB Outputs
- Universal AC Voltage input: 100~240VAC
- Worldwide Adaptors
- 6.8A High-Power Output for high capacity devices
- AU and USA Adaptors included
- UK and EU plugs available separately
- Colour: White
Specifications
| Output | Voltage | DC 5-6V |
|---|---|---|
| Output Regulation | ±5% Constant Voltage Mode | |
| Current Regulation | ±5% Constant Current Mode | |
| Current limit | 6.8A max @ 5-6V, 34W max | |
| Ripple and Noise | 100mVp-p max @ 20MHz | |
| Maximum Power | 34W max @ DC 5-6V | |
| Hold-up Time | 10ms Typical At Full Load @ 115V | |
| Protection |
|
|
| USB | 4 x USB | |
| Input | Rated Input Voltage | 100Vac ~ 240Vac |
| Input Voltage Range | 90Vac ~ 264Vac | |
| Input Current | 500mA max. @ 100~240Vac Input | |
| Rated Input Frequence | 50/60Hz | |
| Inrush Current | 20A Max. @ 100-240Vac Input | |
| Leakage Current | 0.25mA Max | |
| Efficiency | Average efficiency achieves ES Level V and Euro COCV4.0 | |
| Environmental | Operation Temperature | 0°C to 40°C |
| Storage Temperature | –10°C to 70°C | |
| MTBF | >80,000 Hours At Full Load And 25°C Ambient Temperature |
