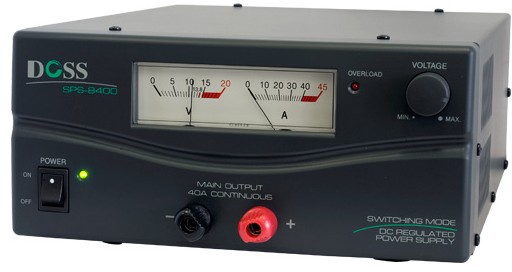

Provides high current 40 Amps output in a lightweight and compact size case. Suitable for a wide range of uses, such as radio equipment, and are ideal for high power carstereo work. In addition to variable output from 3 to 15VDC, a fixed 13.8VDC can be selected. Overload, Over temperature, and Over voltage protection are standard.
- 40A current output
- High efficiency
- Floating Ground Design
- Adjustable output voltages 3V to 15V
- Fixed voltage mode at 13.8V
- Light weight and small size
- Overload temperature protection
- Constant Current Protection
- Over voltage protection at 16.5V
- Variable speed thermally controlled fan
- High RFI stability
- Power factor correction >0.95
|
Specifications |
|
|
SPS – 8400 |
|
|
Variable Output Voltage |
3 – 15Vdc |
|
Fixed Output Voltage Mode |
13.8Vdc |
|
Rated Output Current |
40A |
|
Ripple & Noise (Peak-Peak) |
50mV |
|
Load Regulation |
200mV |
|
Line Regulation |
50mV |
|
Input Voltage |
230Vac, 50Hz~ |
|
Efficiency |
>78% |
|
Meter Type |
Analog Meter |
|
Voltmeter Range |
0 – 20V |
|
Ammeter Range |
0 – 45A |
|
Meter’s Accuracy |
7% fsd |
|
Cooling System |
Variable speed thermally controlled fan |
|
Protection Devices |
Overload, Over Temperature, ShortCircuit, OVP protections |
|
Approvals |
CE EMC: EN55011 EN55022, LVD: EN 60950 EN61558 |
|
Dimensions (WxHxD) |
220 x 110 x 300 mm ( 8.7 x 4.3 x 11.8 in.) |
|
Weight |
3.5kgs (7.7lbs) |
|
Remarks |
Power factor correction >0.95 at optimal load |
