K19-2MB15A
27752620

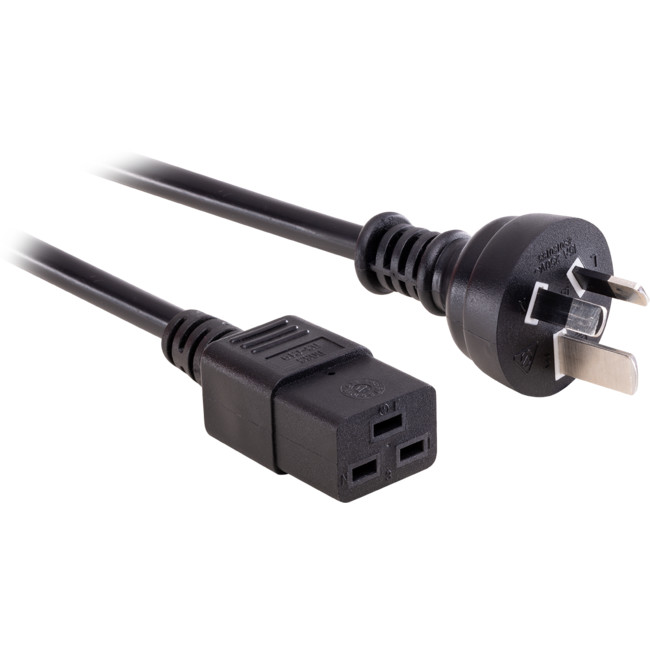

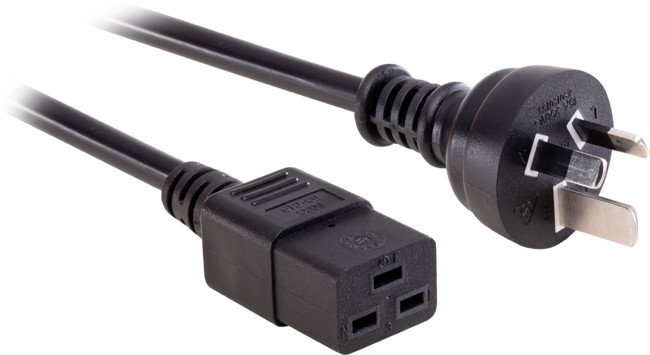

IEC-C19 15 Amp Power Cord
As used on rack mounted power boards. Fitted with a female IEC-C19 connector and an Australian 15 Amp 3-pin mains plug with insulated pins compliant with AS/NZS3112.
Specifications:
- Type: IEC socket to IEC plug
- Colour: Black
- Application: Residential/General purpose
- Rated voltage: 250V
- Rated Current: 15A
- Insulation: 3.0 ±0.05mm 45P PVC
- Sheath: 8.2 ±0.1mm Black 55P PVC
- Conductor: 48/0.2BC
- 3G1.5mm2 power cord
- ROHS Compliant
- Available in 1M(K19-1MB15A),2M (K19-2MB15A), 3M (K19-3MB15A) and 5M (K19-5MB15A) lengths.
- AS/NZS3112 compliant
- Approval numbers: Q050981 (ES0120718), Q11027, Q080451 (ES0130530)
