Features

Overview

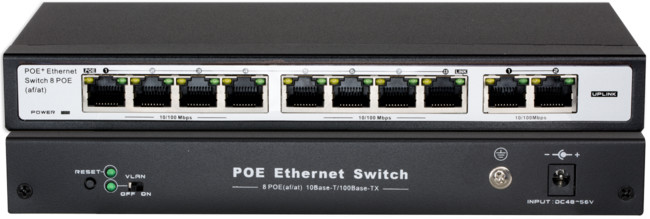

DOSS POE08260 is a 8 port unmanaged POE switch designed for video surveillance and network project sytem. It has 8x100Mbps Ethernet ports and 2x 100Mbps uplink ports. It supports VLAN function to make data transfer safer.

  • Provide 8×100 Mbps Ethernet ports, 2×100 Mbps up-linkports
  • Support End-Span method, complies with IEEE802.3 af/​atstandards, can supply max 30W power which is efficient for high-power infrared cameras
  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3 af/​at standards
  • Supports IEEE802.3x full-duplex flow control, supportsAuto MDI/​MDIX
  • Supoorts port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe
  • Restart function helps entire master IC reset. Easy for users to restart network, maintain system and fast recovery of monitoring images
  • Various LED display shows real-time working status
  • Excellent lightning protection, lightning capacity up to 4KV
  • Easy to install on all surfaces

Specification

Power Supply Power Consumption Device<8W POE power supply<260W
Network Port Parameter Network Ports
  • 1-8 Ethernet Port: 10/​100Mbps
  • 2 Uplink Port: 10/​100Mbps
Transmission Distance
  • 1-8 Ethernet Port: 100m
  • Uplink Port: 100m
Transmission Media Cat5e/​6 Standard UTP Cable
POE Agreement IEEE802.3 af/​at Standards
POE Power Supply Mode End-Span method
POE Power Supply Wattage Each Port≤30W Whole Device<260W
Network Switch Specification Network Standard IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3z
Swap Mode Store-and-forward
Data-Catching Mechanism 1M
MAC Address List 2K
Status Indicators Power Indicator Light Red
FE Uplink Port Green/​Yellow
POE Indicator 8x Yellow
POE Network Port LED Green (Port 1-8)
Restart Indicator Restar Indication (Green)
Vlan Indicator Green
Button/​Switch Reset Button Press Down To Restart
Vlan Switch Slide Switch To On Then Press Restart Button
Protection Level Surge Immunity Level 3, IEC61000-4-5
Electrostatic Protection 1a Touch Electric Discharge: Level 2

1a Air Discharge: Level 2
Executive Standard: IEC61000-4-2
Operating Environment Working Temperature 0°C-55°C
Storage Temperature -40°C-70°C
Humidity (Non-congeal) 0-95%
Mechanical Attributes Dimensions (L*W*H) 219.6mm*2105mm*27.6mm
Color Black
Weight 612g
Reliability Mean Time Between Failures (MTBF) >50000Hrs
