Discontinued

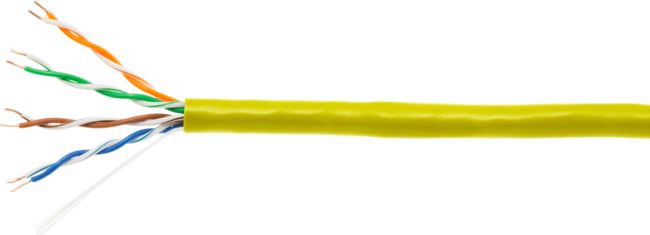

BROADBAND READY CAT-5E UTP PATCH CABLE

METRE CODE:
Please note that this product is sold in METRES.
To order the reel, put in 305m in your order quantity. Otherwise ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (305m) denotes available roll length.
  • COLOUR: YELLOW
  • High performance 100 MHz Category 5 in-building distribution cable
  • Unshielded twisted pair (UTP)
  • Compliant Standards: EIA/​TIA-568 Category 5
  • Wires per cable: 8 wires / Pairs per cable: 4 pairs
  • Flexible unshielded 24 AWG solid pairs copper
  • CMR rated
  • For high speed data applications
  • Kink resistant easy to install jacket
  • Impedance: 100 ±15 Ohms
  • Attenuation: 22.0 dB / 100 m @ 100 MHz
  • Insulation PE: 0.92 mm
  • Outside Diameter: 5.20 mm
  • Supports a variety of network systems i.e. Ethernet, Token Ring and X-DDT
  • Connector: Bare wire
  • Reel Length: 305 m
  • Available Colours: Black, Blue, Red, Green, Grey
If other suppliers don’t have an "A-Tick" and the ACA supplier code on their Cat5e, don’t buy it! It cannot be legally connected to the Australian communication network!
  • Doss Cat5e is tested and exceeds the Australian requirements as presented in the Cat5e Test Reports PDF file (Right-click and Save Link As to download the PDF file).
  • Our A-Tick supplier code is N1185.
Note: Non-approved product is available on the Australian market and is often less expensive due to the use of less copper or CCA, flammable PVC jackets or poorer production methods.
