METRE CODE:
Please note that this product is sold in METRES.
Ensure that your order quantity matches your desired length (ie. 30 for 30m).
Length in brackets- eg. (100m) denotes available roll length.

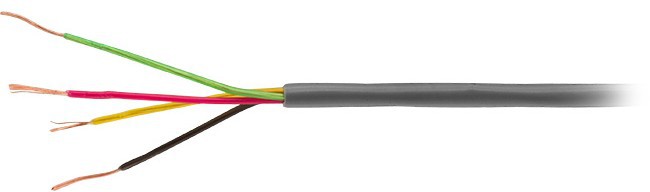

– 7 x 0.2mm stranded plain copper conductors
– Colour coded cores
– Grey PVC sheath
– Austel Approved
– Low voltage applications, like Security, Audio, etc.
– 4 core (4.8mmØ)
– Per metre

Common / Recommended Colour codes

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: center; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: center } .rpg_table th[scope~=row] { border: 1px solid white; }
PIR & other Security devices* RS485 Data Bus
+PWR (Typ 12VDC) +PWR
Common (Tamper) Data A (+)
PIR (Alarm) Data B (–)
PWR GND GND
*Resistors are supplied with NESS PIRs that will linka "tamper" socket to an "alarm" socket. Follow the above for remaining connections.
