Features

  • 27W output power brings you extraordinarily loud but clear sound
  • Built-in rechargeable battery guarantees as long as 8 hours of operation
  • User friendly – can be desk top mounted, hand-held, shoulder carried or stand mounted.
  • MP3 playback via SD/​USB
  • IR Remote Control
  • Wired microphone connection (unbalanced 6.3mm jack)
    • Microphone available separately
  • Wireless microphone receiver built-in
    • Supports UB101 Body pack (not included) or;
    • UH101 Handheld (included)
  • Carry bag provides full protection to the unit and itsaccessories
    • Case opens on one end and cut-out for microphone cord allows use of the unit while inside the case
    • Provides protection and security while in use
  • Power supply included (charges internal battery)

Images

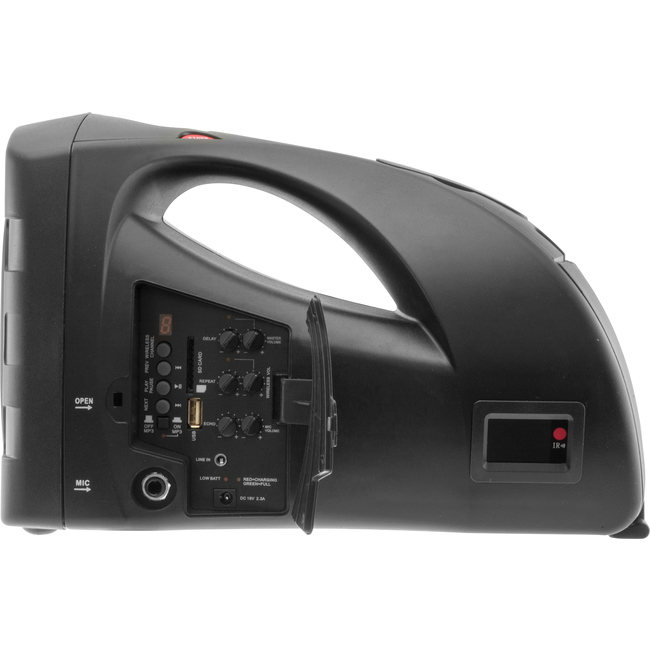

SD/​USB input for MP3 playback

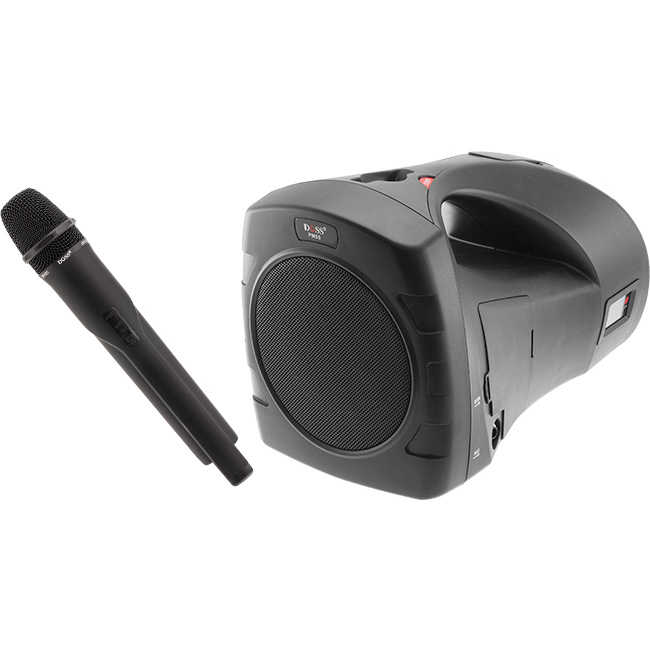

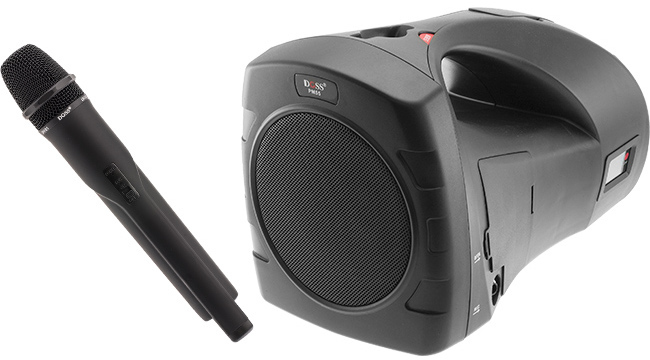

Supplied with wireless microphone

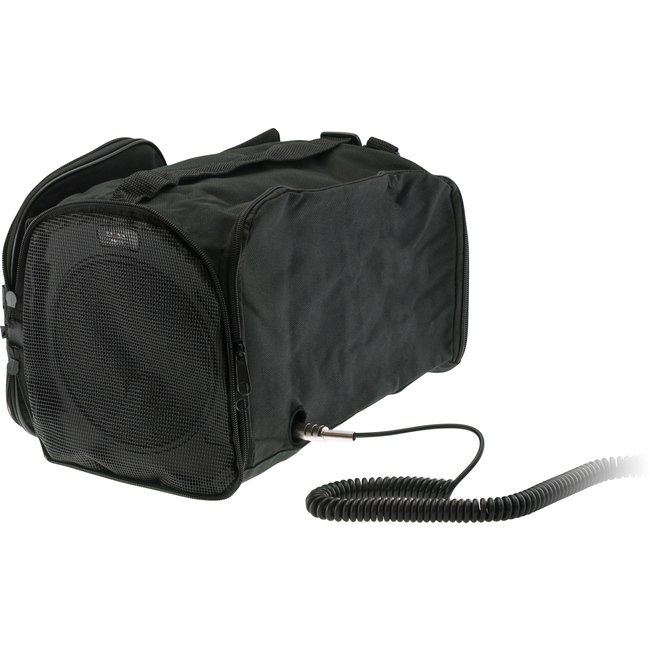

Unit can still be used while inside case

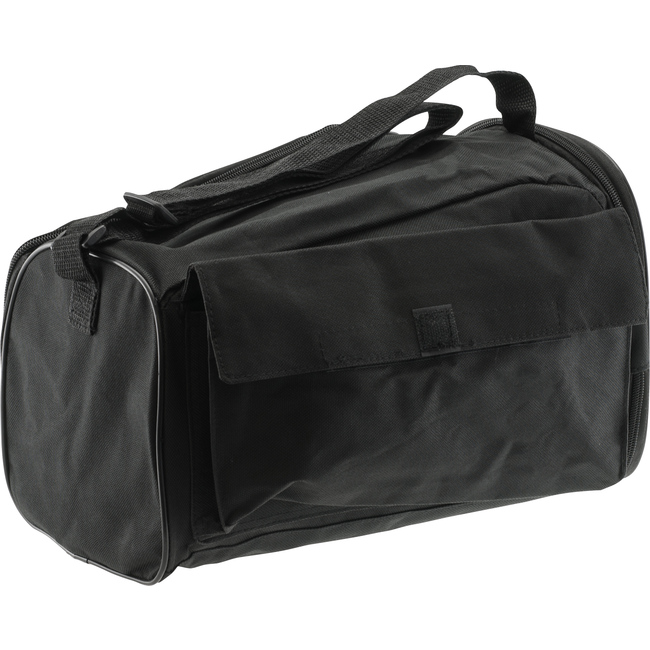

Carry case has large pocket for all accessories

Specifications

.rpg_table { border-collapse: collapse } .rpg_table th, .rpg_table td { padding: 5px; } .rpg_table td, .rpg_table th { text-align: left; vertical-align: top; border-top: solid 1px #cccccc; border-bottom: solid 1px #cccccc; } .rpg_table th, .rpg_table .header { font-weight: bold; text-align: left }
General
Rated power output 27W @ 4ohm continuous
Max SPL 102dB @ rated power output
Battery one 14.8V rechargeable, 2.5AH Lithium
Battery Life 8 hours
Wireless Receiver
Carrier frequency 654-694 MHz (UHF)
Receiving mode PPL Diversity
Sensitivity >-107dB
Image rejection Over 90dB
Microphone (UH101)
Cartridge Dynamic
Antenna Built-in
RF Output <10mW
Spurious emissions <45dBc
Battery 2x AA battery (1.5V or 1.2V rechargable)
Battery life >8hr
Inputs
Frequency response 60Hz ~ 15,000Hz
Speaker type 5.5" full range
Microphone inputs Unbalanced 1/​4" jack
Auxiliary input Hi-Z (10kOhm) unbalanced 1/​8" jack
Sensitivity for rated output
Microphone -40dBV (10mVrms)
Auxiliary -14dBV (200mVrms)
Other
AC power requirement 110-240V 50/​60Hz 50W Max
DC Power requirements 19VDC / 2.3A
Dimensions 190 x 180 x 310mm
Weight 2kg
Safety approvals FCC CE 0168
