The VD102 is designed for long range VGA distribution over cost effective CAT5 UTP cable. One or multi video input to multi output, with one VGA LOOP output (VGA cable) for localside, others are RJ45 output (CAT5 UTP cable) at remote side.  All of them built in amplifiers for long- rangeVGA signal transmission up to 300 meters when work with TTA111VGA-R  VGA receiver at remote side. Ideal for classrooms video distribution, lecture halls, retail kiosks, video information displays, overhead projector systems, PC-training systems, and tradeshows PC demo systems.

Features:

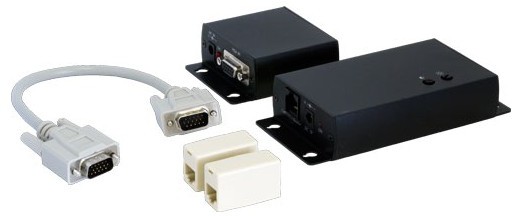

  • Each set including one piece VD102-T transmitter and onepiece TTA111VGA-R receiver.
  • Dual output: 1 VGA loop output for local, plus 1 CAT5 RJ45 output for remote side.
  • Built in contrast, brightness adjustment at Receiver.
  • Supports up to 1600×1200 @85Hz.
  • Use CAT5 cable instead of VGA cable.
  • Long range transmission up to 300 meters (Max.).
  • Power supply included.

Connection diagram
Click for a larger version

Specifications:

ITEM NO.

VD102

Support Resolution

Up to 1600 x 1200 @ 85 Hz

Transmission Distance

Up to 1000 ft. (300 m)

Video Amplifier Bandwidth

150MHz

Video Input Signals

RGB Analog (75Ω, 0.7Vp-p)

Sync Signal H/​V Separated (TTL)

Horizontal Frequency Range

30-95KHz

Vertical Frequency Range

50-180Hz

VGA Connector

15-pin Mini D-Sub (High Density)

Link Connector

1 x RJ-45

Power Supply

VD102-T, VD105-T: 5V DC 500mA,
TTA111VGA-R 5V DC 500mA (External)

Power Consumption

VD102-T 350mA (Max), VD105-T400mA (Max),
TTA111VGA-R 250mA (Max)

Temperature

Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to 95%

Dimensions W x H x Dmm

VD102-T: 67x27x73, VD105-T: 133x44x70
TTA111VGA-R: 67x27x140
