DMZ50IPW 4″ DOME 2MP 10X ZOOM 50-80M IR POE IP PTZ CAMERA – WHITE

DMZ50IPW 4″ DOME 2MP 10X ZOOM 50-80M IR POE IP PTZ CAMERA – WHITE

Additional Images

43160140431601404316014043160140

Features

DOSS DMZ50IPW camera enables you to keep an eye on your territory 24/7!!! It has 2MP camera for clear image taking or recording as well as tilt and zoom in functions. Area scan function provides routine scanning of the areas of your choice, non-stop unless you told it to. Easy set up and easy control, powered by POE means no more hassle for wiring power cable!

  • 2MP HD IR network intelligent high speed dome
  • 1/2.8″ CMOS sensor
  • Ambarella zoom module
  • Encoding system : H.264/MJPEG, dual stream output
  • F= 4.7mm ~ 47mm provides with 47° to 4.7° view
  • 10x optical zoom
  • Full HD 1080P
  • Horizontal 360° continuous rotation, 90° vertically auto rotation
  • 50-80m IR distance / 6xIR Leds t
  • MicroSD card slot
    • Accepts up to 64GB
  • Support ONVIF/ HTTP/ TCP/ DDNS/ NTP/ SMTP/ RTSP
  • 255 preset, 4 pattern, 4 cruise
  • Lightning-proof, IP66
  • DC24V or POE



Specifications

ZOOM MODULE
Image sensor 1/2.8", 2.0MP CMOS sensor(Ambarella A5S66+IMX222)
Effective pixels 2MP
Min. illumination Colour: 0.06Lux@F1.6; B/W: 0.01Lux@F1.6, 0Lux(IR ON)
IR distance 50-80m
White balance Auto/White low lamp/4000K/5000K/Sunshine/dark clouds/flash light/fluorescent lamp/high fluorescent lamp/water bottom/customized
Gain control Auto, manual
3DNR Supported
S/N Ratio 50dB
BLC Supported
WDR DWDR
Electronic shutter Max:1/15, Min: 1/5000
Day & Night B&W, colour, auto
Optical zoom 10X optical zoom
Focus mode Auto/Manual
Focal length f=4.7~47mm
Iris F1.6(W)-F3.0/(T)
FUNCTION
Horizontal 360° endless
Vertical 0°~90° auto roration
Rotation speed Manual: 0.1- 200°/sec, Preset: 240°/sec
Preset accuracy 0.1°
Proportion zoom Supported
Preset 255
Cruise 4
Pattern 4
Area scan Supported
PTZ Watch Preset/zone/cruise/pattern/OFF
Smart alarm Network disconnect, IP address conflict, Storage plena, Storage error, Access violation
Smart image enhance Not Supported
NETWORK
Max image dimensions 1920*1080
Dual stream Supported
Video compression H.264
Audio compression Not Supported
Network protocols IPv4, HTTP, FTP, SMTP, UPnP, DDNS, NTP, RTSP, TCP, UDP, DHCP
Password protection Supported
Character display Supported (channel, date)
Mobile surveillance Supported

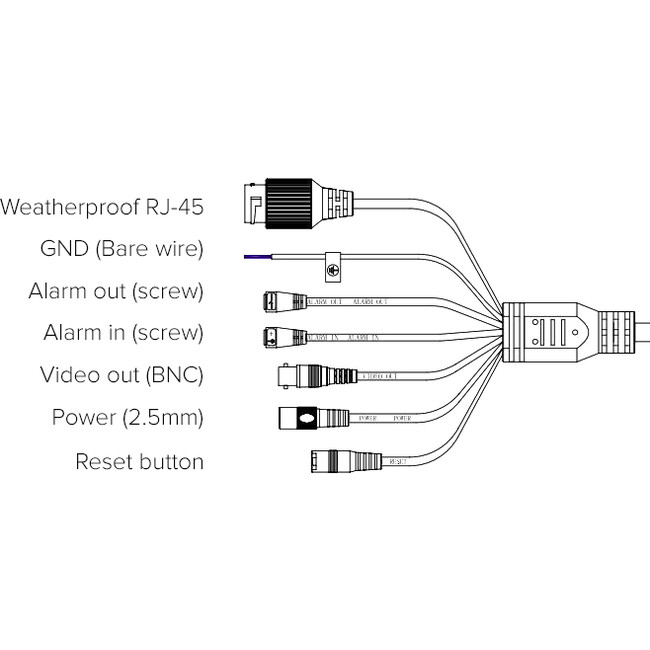

SYSTEM INTEGRATION
Alarm in 1CH
Alarm out 1CH, support alarm linkage
Alarm Linkage Email, FTP
Audio in Not Supported
Audio out Not Supported
Network interface Built in RJ45 network port,support 10M/100M network data
Analog video output Supported
RS485 port Not Supported
Browser Support IE8, IE9, IE10 and based on the IE core browsers
GENERAL
Operating temperature/ humidity -20°C ~ 55°C/0%-90% (Can enable cold start and self-heating below -20°C, and running normal after 30 minutes)
IP rating IP66
Power supply DC24V 1.5A or POE(IEEE 802.3 AF STANDARD)
Power consumption (max) 25W
Dimensions(HxD) 219x149mm
Weight/PCS(g) 2.7kg
