DMZ150IPW 6″ DOME 2MP 20X STARVIS 150M IR POE IP PTZ CAMERA – WHITE

Discontinued

Features

DOSS DMZ150IPW camera enables you to keep an eye on your territory 24/7!!! It has 2MP camera for clear image taking or recording as well as tilt and zoom in functions. Area scan function provides routine scanning of the areas of your choice, non-stop unless you told it to. Easy set up and easy control, powered by POE means no more hassle for wiring power cable!

  • 2MP HD IR network intelligent high speed dome
  • 1/2.8″ STARVIS IMX290 CMOS sensor
  • Keyboard control the speed: 0.1-150°/S, preset speed: 200°/S
  • Encoding system : H.264/MJPEG, dual stream output
  • F= 4.7~94mm provides with 47° to 4.7° view
  • 20x optical zoom
  • Full HD 1080P
  • Horizontal 360° continuous rotation, 90° vertically auto rotation
  • 150m IR distance / Intelligent IR group control
  • Support ONVIF/HTTP/TCP/DDNS/NTP/SMTP/RTSP
  • 256 preset, 4 pattern, 8 cruise
  • Lightning-proof, IP66
  • DC24V or POE, AC/DC24V, standard wall mounting bracket

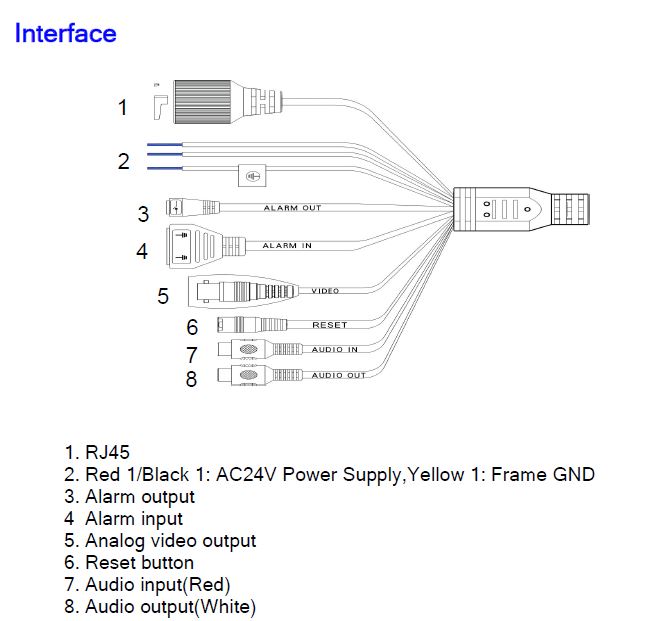

Interface



Specifications

ZOOM MODULE
Image sensor 1/2.8", 2.0MP CMOS sensor(Ambarella A5S66+IMX222)
Effective pixels 2MP
Min. illumination Colour: 0.06Lux@F1.6; B/W: 0.01Lux@F1.6, 0Lux(IR ON)
IR distance 50-80m
White balance Auto/White low lamp/4000K/5000K/Sunshine/dark clouds/flash light/fluorescent lamp/high fluorescent lamp/water bottom/customized
Gain control Auto, manual
3DNR Supported
S/N Ratio 50dB
BLC Supported
WDR DWDR
Electronic shutter Max:1/15, Min: 1/5000
Day & Night B&W, colour, auto
Optical zoom 10X optical zoom
Focus mode Auto/Manual
Focal length f=4.7~94mm
Iris F1.6(W)-F3.0/(T)
FUNCTION
Horizontal 360° continuous rotation
Vertical 0°~90° auto roration
Rotation speed Manual: 0.1- 150°/sec, Preset: 200°/sec
Preset accuracy 0.1°
Proportion zoom Supported
Preset 256
Cruise 8
Pattern 4
Area scan Supported
PTZ Watch Preset/zone/cruise/pattern/OFF
Smart alarm Network disconnect, IP address conflict, Storage plena, Storage error, Access violation
Alarm function Motion detection, network disconnect, IP address conflict, storage plena, storage error, access violation, video losing
NETWORK
Max image dimensions 1920*1080
Dual stream Supported
Video compression H.264
Audio compression Not Supported
Network protocols IPv4, HTTP, FTP, SMTP, UPnP, DDNS, NTP, RTSP, TCP, UDP, DHCP
Password protection Supported
Character display Supported (channel, date)
Mobile surveillance Supported
SYSTEM INTEGRATION
Alarm in 2CH
Alarm out 1CH, support alarm linkage
Alarm Linkage Email, FTP, preset, cruise, video
Audio 1CH bidirectional talk
Network interface Built in RJ45 network port,support 10M/100M network data
Analog video output Supported
RS485 port Not Supported
Browser Support IE8, IE9, IE10 and based on the IE core browsers
GENERAL
Operating temperature/ humidity -20°C ~ 55°C/0%-90% (Can enable cold start and self-heating below -20°C, and running normal after 30 minutes)
IP rating IP66
Power supply AC/DC24V
Power consumption (max) 36W
Dimensions(HxD) 380x216mm
Weight/PCS(g) 5.5kg
