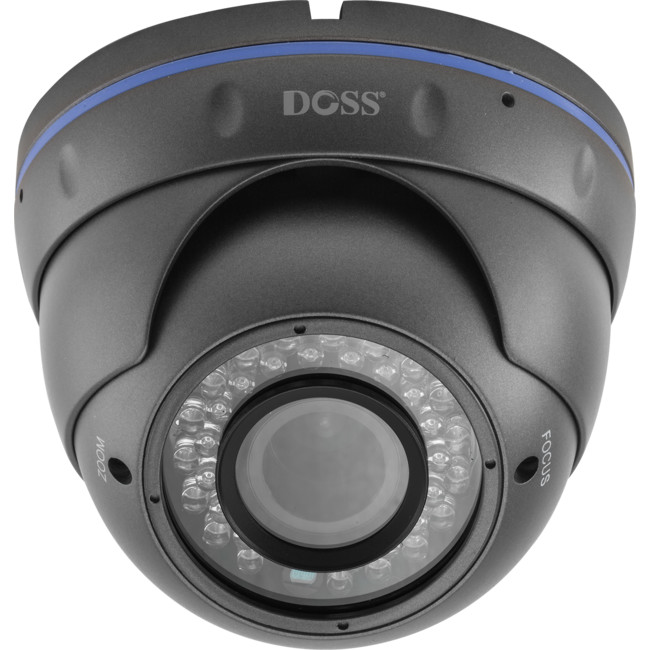

DM30IPB2 DOME 2.8-12MM LENS IP65 1080P 30M IR POE IP CAMERA – BLACK

DM30IPB2 DOME 2.8-12MM LENS IP65 1080P 30M IR POE IP CAMERA – BLACK

Additional Images

431600284316002843160028

Overview

The DOSS IP cameras are the next step in CCTV technology allowing you to install a complete system using an conventional, economical ethernet network. Features like Power over Ethernet and BNC analogue video output make it a breeze for installers. ONVIF compliance allows integration with compatible Networked Video Recorders, no matter the brand, for centralised video capture and back-up.

Features

  • 1/2.8" Sony WDR CMOS Sensor
  • Hi3516C DSP+IMX323
  • h.264/MJPEG encoding
  • Resolution: 1920×1080
  • Built-in intelligence
  • 1080P (Full HD) recording and viewing
  • Conforms to ONVIF (Open Network Video Interface Forum) protocols Profile S
  • 2.8-12mm Lens provides a view of 92° to 28°
  • 20-30m IR distance, 36xØ5mm Leds
  • 1/2.8" Sony WDR CMOS Sensor
  • IP65 weatherproof case
  • DC12V with PoE
  • NSR=50db



Specifications

CAMERA
Sensor 1/2.8" SONY 2.43 Mega-pixel low inllumination CMOS
Min. illumination 0 Lux/F1.4 (IR ON)
Electronic shutter
Auto/Manual (1/25 ~ 1/10000)
Day/Night Auto/B&W/Colour/EXT ICR switching
Video Parameter DWDR, Mirror, 3D Noise reduction, Sharpness/Lightness adjustable
IR Distance 20-30m (36x Ø5mm)
Adjustable IR Brightness No
Lens 2.8~12mm Lens
AUDIO / VIDEO COMPRESSION
Video compression H.264
Encoding Dual-stream, Main stream
PAL: 1920×1080 25fps; NTSC:1920×1080 30fps
Effective pixels 1920×1080
Encoding System Constant bit rate, Variable bit rate optional
Video Bit rate 16kbps – 8000kbps
Stream Type Complex stream / Video stream
Audio Compression G.711A
Audio Bit rate 64kbps
NETWORK FUNCTION
Motion detection Can be set to a single detection zone, Multi-level sensitivity can be set
Privacy zones 4 zones
Snapshot Support JPEG format, max. resolution based on encoding resolution
Password protection Support
Character display Support (Channel & Date)
Alarm function Video loss, Network disconnect, Tampering alarm, Storage exception
Mobile surveillance Apple, Android
Protocol TCP/IP, UDP, HTTP, DHCP, RTP/RTSP, DNS, DDNS, NTP, PPPoE, UPNP, SMTP
Port protocol I8, ONVIF
ONVIF Profile S/G, version 2.2
INTERFACE
Network Interface RJ45 10M / 100M adaptive

Analog video output

1CH CVBS analog video output
GENERAL
Operating Conditions
-10°C ~ 55°C
Protection Level IP65
Power Supply DC12V/ PoE
Power Consumption <7W
Dimensions Ø110x100mm
Weight
0.8Kg
