COMBO20 COMBINATION 20DB AMPLIFIED CARAVAN ANTENNA UHF/VHF

COMBO20 COMBINATION 20DB AMPLIFIED CARAVAN ANTENNA UHF/VHF

Additional Images

0062001000620010

Downloads


User Manual (1.1MB)

Discontinued

The DOSS Combo20 high gain aerial gives outstanding performance on analogue, digital and FM radio and is the ideal solution for any mobile setup, caravans, motor homes, and boats!

  • The COMBO20 contains a built in amplifier that strengthens weak signals for clearer picture
  • Power supply has a built in splitter for a second TV outlet
  • The DOSS Combo20 aerial is especially good in poor reception areas
  • Ideal for your caravan, motor home, boat and even as a loft aerial at home
  • It comes complete with power supply, cables, connectors and fitting instructions
  • Easy to assemble and suitable for use throughout Australia
  • Please note: The included Power Supply Distributor requires a 12V 100mA power supply.

Specifications

Channels 0 ~ 69
Frequency VHF 40 ~230MHz, UHF 470 ~ 862 MHz
Gain VHF20dB, UHF 19dB
Front Back Ratio UHF16° ~ 6°, VHF 0°
Half Power Angle UHF 55° ~ 65°, VHF 60°~80°
Output Impedance 75Ω, F-Connector (Female)
Voltage Standing Wave Ratio 2~3
Noise Figure Max. 4.5db
Max. Output Level 100dBµV (IMA -69dB)
Applicable Temperature -20°C ~ 50°C
Wind Surface 0.181m2
Wind Load 12.67KPA
Fixed Mast Diameter 15~56mm
Power Source 12VDC / 100mA
(Power supply not included)
Dimension 400 x 350 x 105 mm
Weight 2200 g

*Please note: Mounting pole not included

Images



In the Box

  • Combo20 Antenna

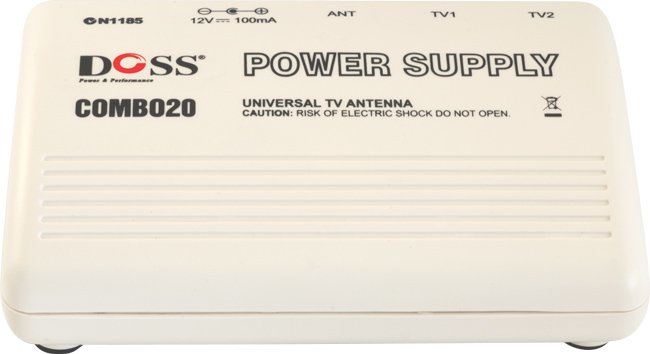

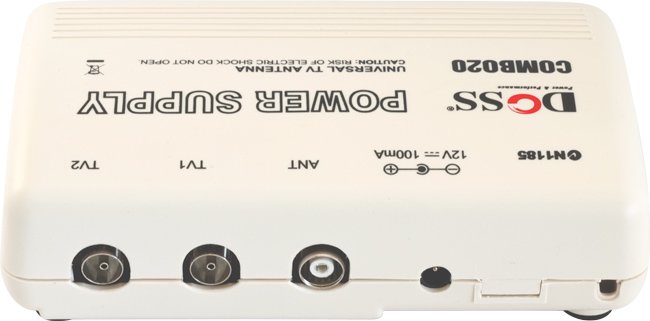

  • Power supply distributor box
  • 6m sealed ‘F-Type’ to PAL lead
  • Mounting hardware

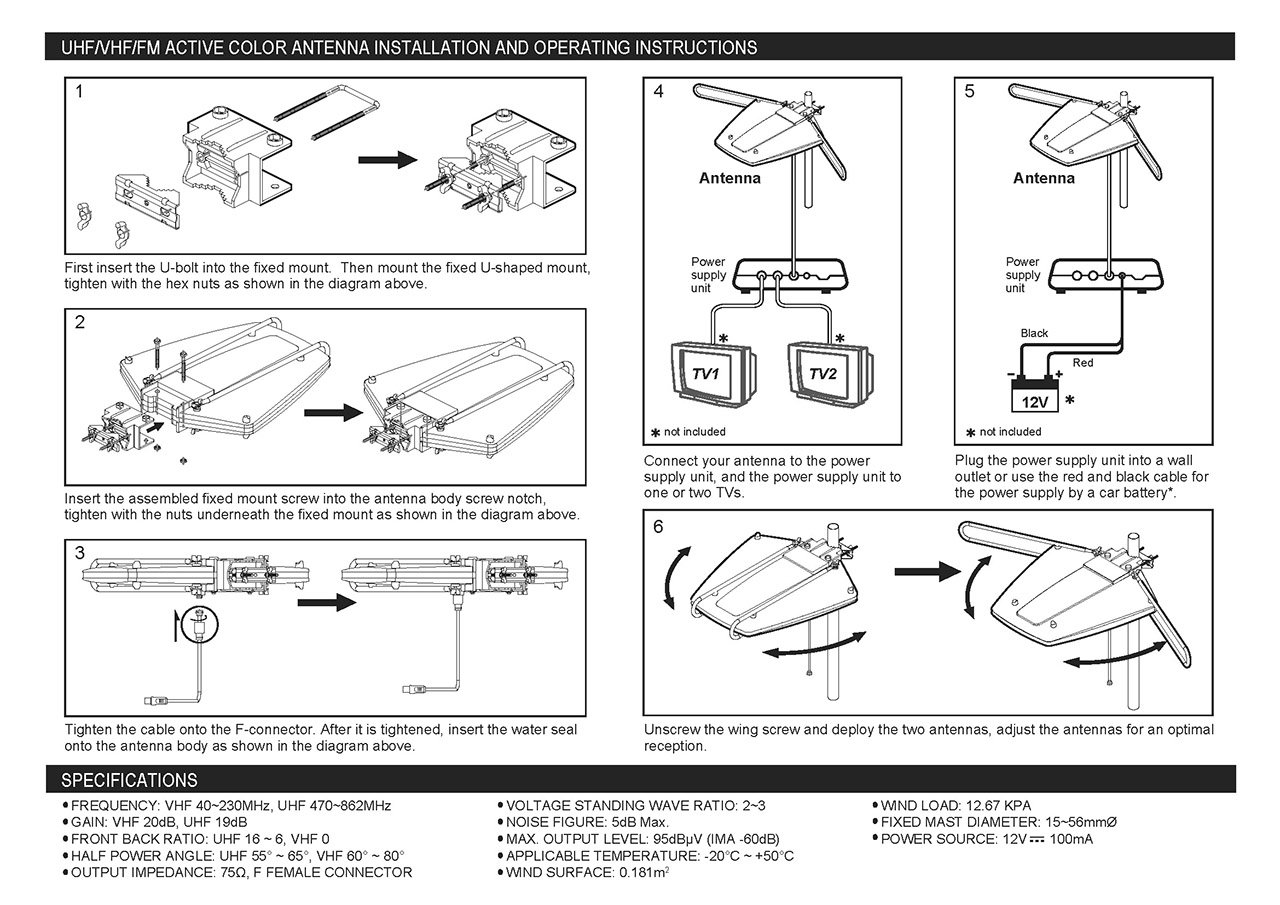

User Manual

Download PDF here.
