BS150 3″ LCD BORESCOPE WITH MEMORY

Features

  • Real-time Live view
  • Bright LED for operation in dark locations
  • Built-in 2000mAh lithium battery, charged via USB
    • Charges while in standby
  • Allows 180° rotating of the image
  • Adjustment of contrast, brightness, color temperature, etc. via OSD
  • Record Video (with audio) to storage
    • Video Format: 3GP
    • Built-in FLASH: 75MB

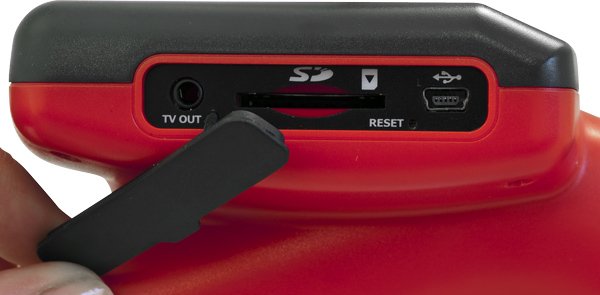

    • Expandable via SD Card: Up to 8GB
  • Also supports Image capture
    • Image Format: JPEG / JPG / BMP
  • Playback and review of Video and Images
    • Video: MPEG4 / 3GP / AVI / ASF
    • Image: JPEG
  • Built-in Date/Time Support
  • TV-OUT for connection to external monitor
  • Languages: English, French, German, Spanish, Turkish

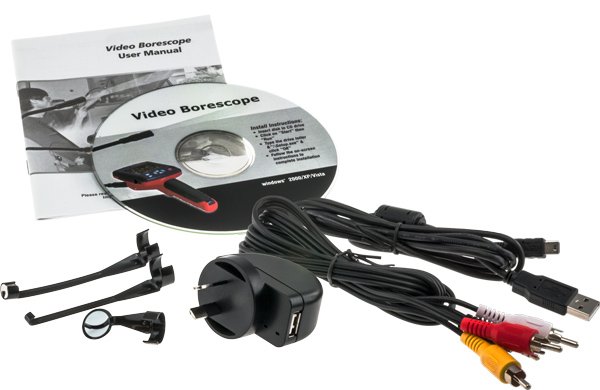

Accessories

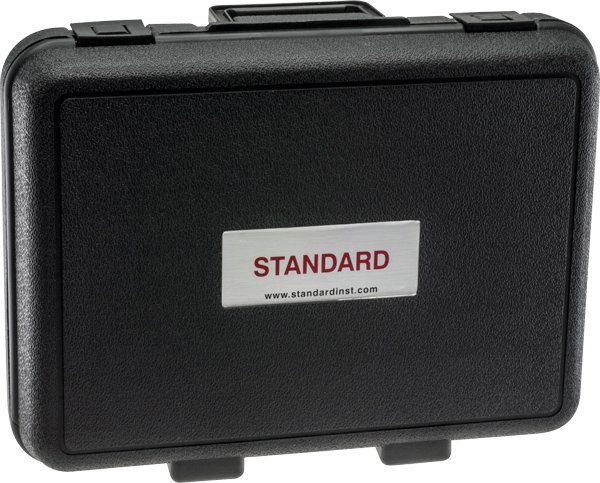

  • Hard Carry-case
  • User Manual
  • Drivers & Software CD-ROM
  • AC Power Adapter
    • 5VDC / 1A – USB Port output
  • USB Charging cable
  • 3.5mm to RCA Video Cable
  • Camera Attachments
    • Mirror Attachment ×1
    • Hook Attachment ×1
    • Magnet Attachment ×1



Specifications

Camera Sensor 1/4 inch CMOS
Num Pixels 300,000
Maximum Resolution 320 × 240
Maximum Frame Rate 30fps
Colour Depth 24 Bit
Focus Manual focus;
15cm ~ 25cm (5.9~9.8")
Diameter 17mm (0.66")

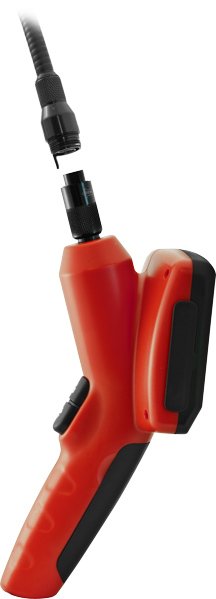

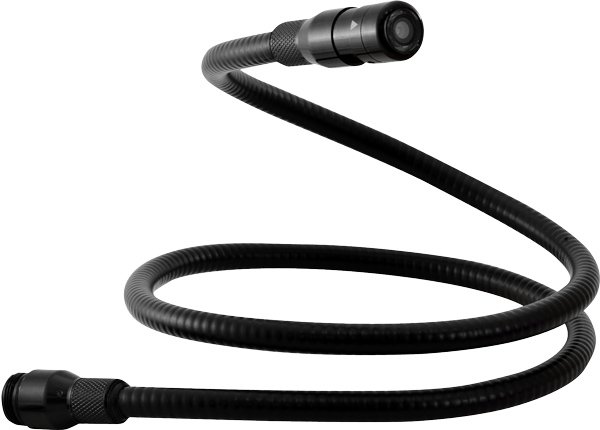

Gooseneck Length 1m (39")
Display Size 3.0"
Type TFT-LCD
Resolution 960 × 240
Active Area 60mm × 45mm
Format Support Video Recording 3GP
Video Playback 3GP / MP4 / AVI / ASF
Image Recording JPG (640×480px)
Image Review JPG / JPEG / BMP
Data Storage Built-in FLASH 75MB
Expandable SD Card Up to 8GB
Data Output USB Data Cable
and SD Card
TV-OUT System PAL / NTSC
Lighting LEDs ×4
Brightness Adjustable: 6 levels
Power Battery Lithium battery
3.7V / 2000mAh
Working Current 620mA (max)
Video Playback Current 380mA
Standby Current 20µA (max)
Mechanical Operating Temperature 0°C – 60°C
Storage Temperature -20°C – 70°C
Relative Humidity 15% – 85%
Dimensions 240 × 100 × 160mm
Weight 596.2g
