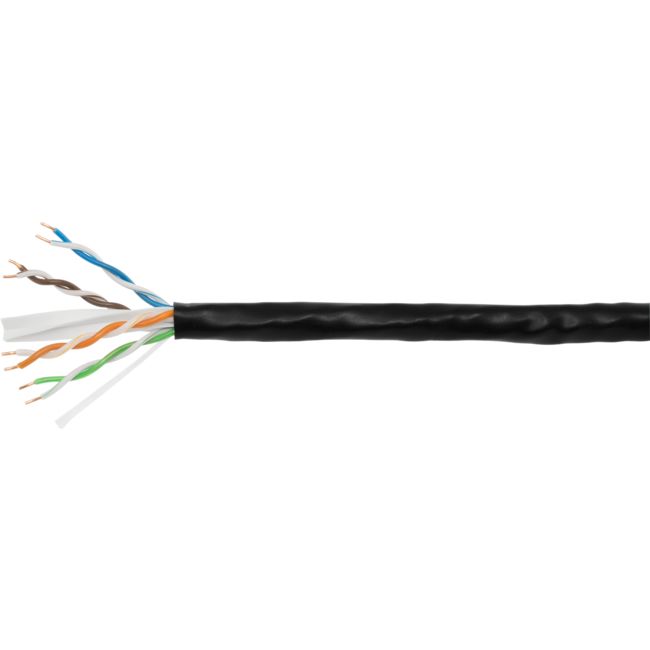

DOSS CAT6/6A Cable Compliance Report

Discontinued

Features

• Available in durable 305 metre 5-ply pull-boxes with count-down metre-marking.
• Conductor Material: Bare Copper
• Size 23 AWG
• Construction 1/0.58 +/- 0.02mm

Specifications

• Insulation Material HDPE
  • Thickness
    • Minimum at any point: 0.2mm
    • Maximum Average: 0.248
    • Diameter 1.08 +/- 0.2mm
• Colours
  • Blue + White-Blue
  • Orange + White-Orange
  • Green + White-Green
  • Brown + White-Brown
• Elongation Minimum 300%
• Tensile Strength Minimum 1.682 Kg/mm sq
• Sheath Material PVC
  • Thickness:
    • Minimum at any point: 0.46mm
    • Maximum Average: 0.58mm
    • Diameter 6.4 +/- 0.3mm
• Colour: Black
• Elongation: Minimum 100%
• Tensile Strength: Minimum 1.407 Kg/mm sq
• Aging @ 100 deg C for 168 Hours:
  • Minimum elongation retention: 50%
  • Minimum tensile strength retention: 75%
• Complies with: AS/ACIF S008:2006 (including Flame Test)
• Pair Separator; Separate “+” Moulding
