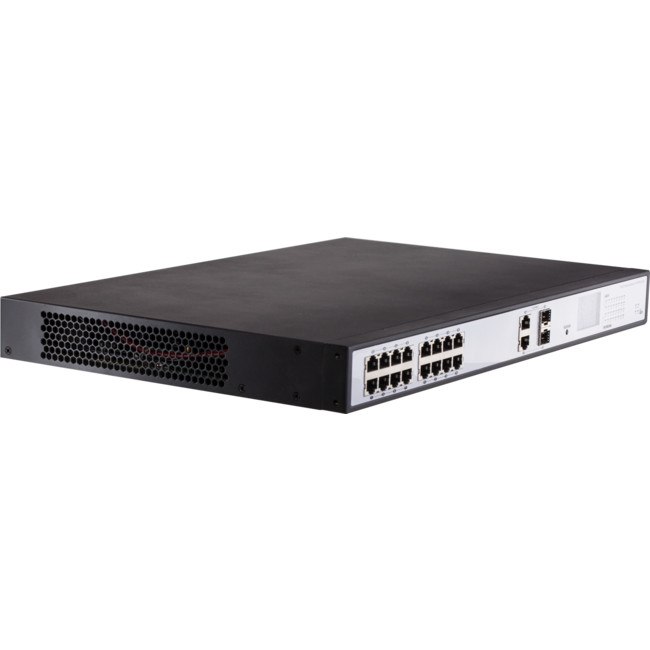

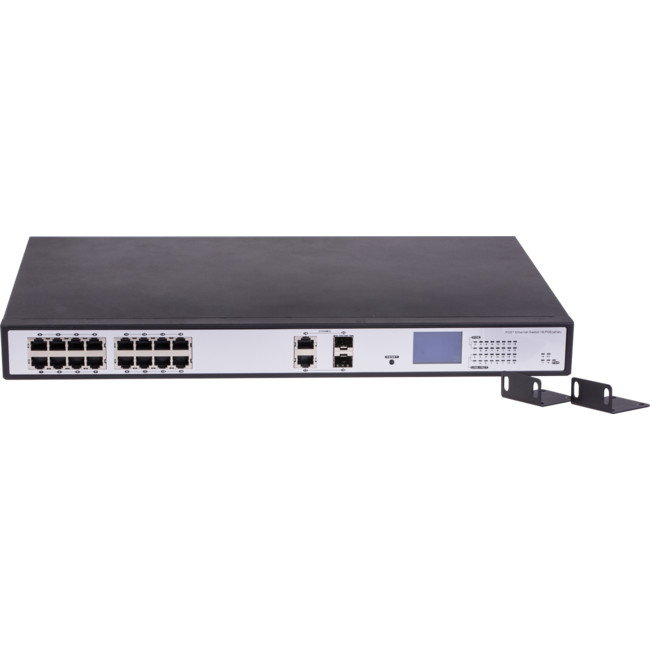

POE16420 – 16 PORTS 420W POE SWITCH

POE16420 – 16 PORTS 420W POE SWITCH

Additional Images

0905145209051452090514520905145209051452

Discontinued

16-Port 10/100Mbps IEEE 802.3af/802.3at PoE Switch

Features

  • Provide 16 x 100Mbps Ethernet ports, 2x 1000Mbps combo up-link port (2×10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port)
  • Various LED display functions can real-timely display the device’s current working conditions, and help prompt facility and remove trouble easily.Support End-Span method, complies with IEEE802.3 af/at standards, can supply max 30W power which is possible to power high-power infrared cameras.
  • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z, IEEE802.3af/at standards.
  • Support IEEE802.3x full-duplex flow control, support Auto MDI/MDIX.
  • Support port-base Vlan, prevent from broadcast storm so that make data conversion more efficient and safe.
  • Restart function helps master IC reset wholly. Easy for users to solve network failure without swapping power supply; Easy to maintain system; Help monitoring pictures recover quickly
    .
  • Excellent lightning protection, lightning capacity up to 4KV
  • Easy to install and operate on walls or on the desktops

Overviews

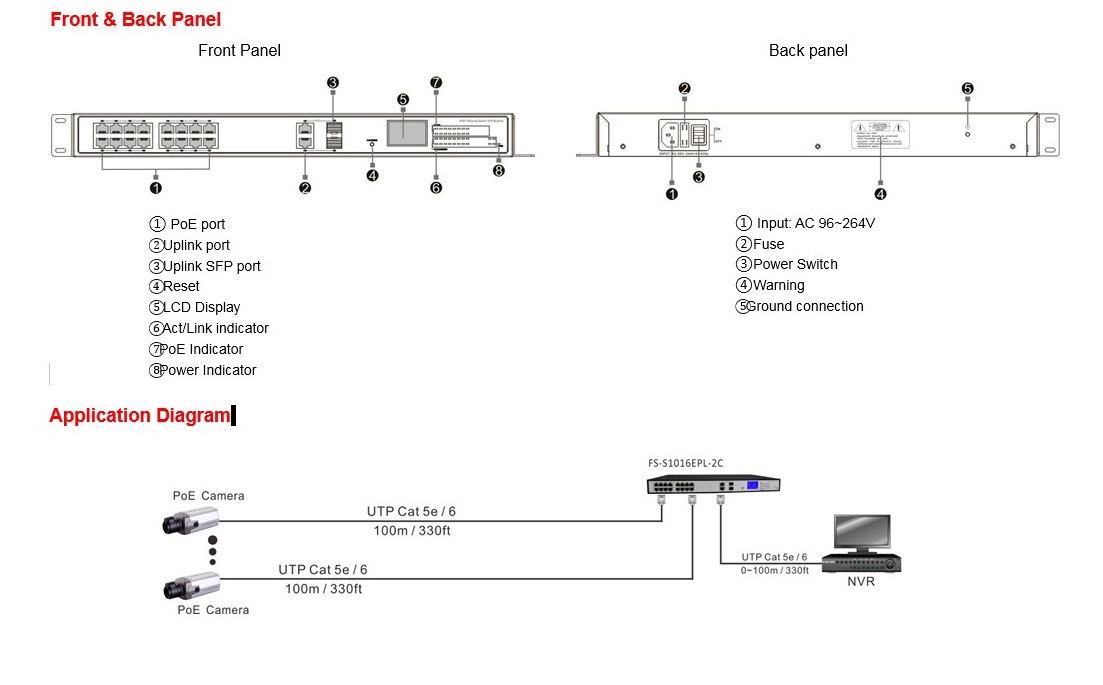

The POE16420 is a specialized unmanaged PoE switch designed for video surveillance and network project system, etc. It provides 16x 100Mbps Ethernet ports and 2x 1000Mbps combo uplink port (2×10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port), can effectively prevent whole system from broadcast storm so that make the data transfer more safe.
This general network switch and PoE network switch.can meet customers’ general demands. PoE network switch with PoE function, designed for high-definition network cameras’ internet access. It provides 16 100Mbps PoE Ethernet switches, complies with IEEE802.3af/at standards, and also simplifies wiring, avoids the troublesome of installing power socket for powered devices.

Applications

  • Security Monitoring System
  • Multimedia Network Teaching System
  • Medical Monitoring Display System
  • Industrial Automation Control System
  • Banking, securities, financial information display system
  • Remote Network Server Monitoring
  • Department Store Security
  • Casino Security
  • Hospitals, Airports and banks
  • School Campuses

Technical Specifications

Item

Description

Model

POE16420

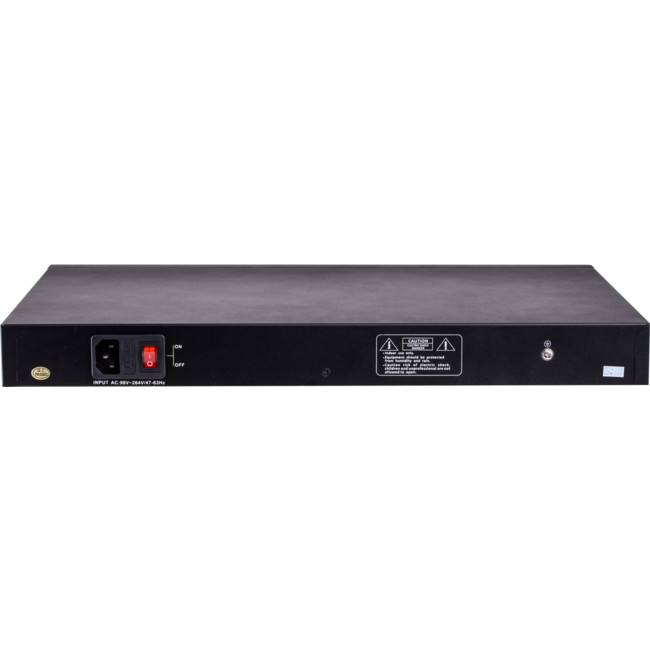

Power Supply

Power Supply Mode

 AC power supply

Voltage Range

AC96~264V

Power Consumption

The device<15W, PoE power supply= 260W or 420W

Network Port Parameter

Network Ports

1~16 Port:10/100Mbps
Uplink Port COMBO:2×10/100/1000Mbps port or 2x1000Base-X SFP optical fiber port

Transmission Distance

1~16 Port:100m Uplink Port:100m
The transmission distance of optical fiber port depends on the different SFP modules

Transmission Media

1~16 Port:Cat5e/6 standard UTP cable,
Uplink Port COMBO:Cat5e/6standard UTP cable and optical fiber

PoE Agreement

IEEE802.3 af/at Standard

PoE Power Supply Mode

End-span method

PoE Power Supply Wattage

Each port= 30W,     whole unit=260W or =420W

Network Switch Specification

Network Standard

Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3az, IEEE802.3z, IEEE802.3af/at standards.

 Switching Form

Store-and- forward

Data-Caching Mechanism

4.1M

MAC Address table

8K







Status
Indicators

Power Indicator Light

One power light (red)

COMBO port indicator

4 indicator light(green):17/18port corresponding green light keeps on when the port is well connected, Blinking when transmitting data;19/20port corresponding green light keeps on when the optical fiber port is well connected, Blinking when transmitting data



PoE indicator

16 PoE indicator light(yellow)



Network Port Indicator

1~16port (green light), keeps on when well connected; Blinking when transmitting data

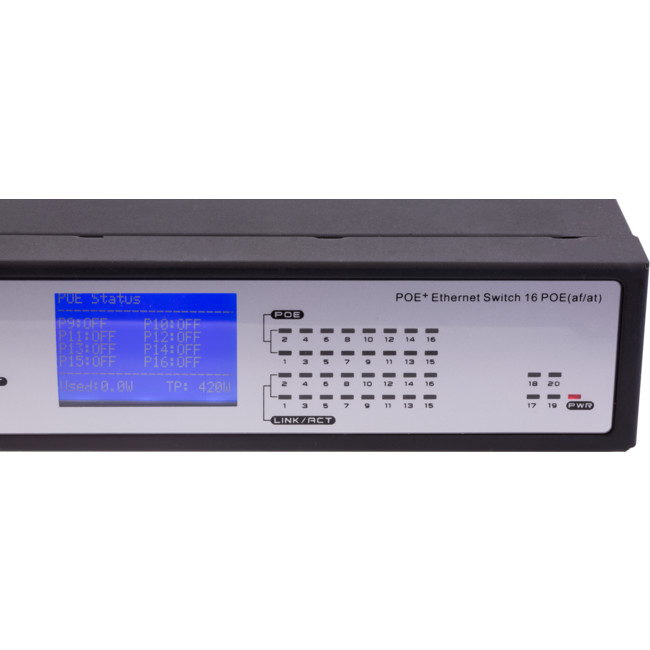

LCD Display

User-friendly interface,
real-time displays the system power,
PSE PoE power and its working conditions



Button/Switch

Reset Button

One button, Whole machine will restart while press the button.





Protection level

Surge Immunity

Level 3 executive standard:IEC61000-4-5



Whole unit Electrostatic Protection

 level 3 Executive standard:IEC61000-4-2



Operating Environment

Working Temperature

0~55



Storage Temperature

-40~70



Humidity(non-congeal)

0~95%



Mechanical Attributes

Dimensions (L*W*H)

440mmx297mmx44.5mm



Color

black



weight

 About 4.25kg



Reliability

Mean time between failures (MTBF)

>50000h
