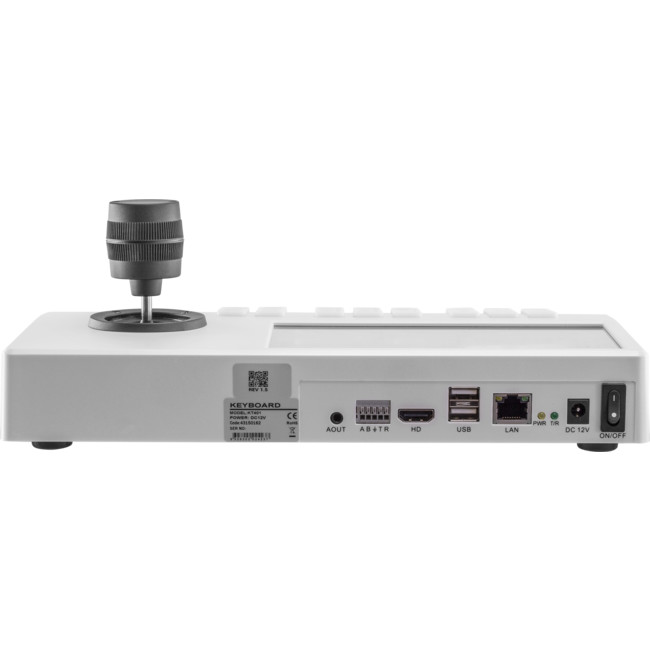

KT401 NETWORK CONTROL KEYBOARD 7″ LCD 3D ROCKER

KT401 NETWORK CONTROL KEYBOARD 7″ LCD 3D ROCKER

Additional Images

43150162

Discontinued

Features

  • 7 inches 800×480 LCD
  • 3D control rocker
  • Supports H.265/H.264 decoding
  • Supports PTZ, preset/cruise/track operation
  • Supports preset/cruise/the configuration and calling of track
  • Supports preview image on the keyboard directly
  • Supports remote video keyboard local playback or play back to TV wall
  • Supports the shortcut operations to the walll
  • Supports U disk upgrading, network upgrading
  • Supports automatic search device within the same network segment
  • Supports domain method to add network device
  • Supports the import and export of keyboard configuration parameter
  • Supports remote configuration and maintenance for the device that have been added
  • Supports audio output
  • Supports the network connecting DVR/NVR/Dome camera/IPC/Decoder





Specifications

System
Main processor High performance embedded processor
Operating system Embedded Linux
Audio
Audio input  /
Audio output 1CH
Audio compression standard G.711a
Video
Decoding method H.265/H.264
Decoding resolution Support 4K/5MP/3MP/1080P/960P/720P local preview remote image, single image display
Interface
RS232 interface Support
RS485 interface Support

Network interface
1 RJ45 100M Adaptive Ethernet
HDMI interface Support
USB interface 2  USB 2.0(support mouse control)
Auxiliary device
Remote control rocker Support 3D rocker control
Display screen Adopt 7 inch 800×480 LCD display screen
Other
Operating temperature/humidity -10°C ~ 55°C/10?-90?
Power supply 12V DC (Power plug specification optional)
Device power =6W
Device dimension 280x170x40mm
device weight 1.1kg




Short URL: https://bit.ly/3jiIlAZ



DOSS Security Training 2013

Watch the training series on our new CCTV Cameras for 2013 here!

Short URL:



What you need to know for new CCTV installations

Cameras

  • What does each camera need to see? i.e. how far, how wide, how much detail?
  • What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
  • How will it be mounted, and are there any style considerations?

DVRs

  • How many cameras does it need to monitor, allowing for any expansion?
  • Do you need full D1 (576 line) recording on all channels?
  • How many days of recording at what quality needs to be stored?

Cabling

  • Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?

Power

  • Will you supply power locally to each camera, or have one central supply?
  • What size of UPS do they need?
  • Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?

Networking & Remote Access

  • Does your customer want to view their cameras remotely?
