IN50PRO 700TVL SECURITY CAMERA

IN50PRO 700TVL SECURITY CAMERA

Downloads


DOSS CCTV Camera Range Sell sheet

Discontinued

Features

  • 1/3″ Sony Super HAD II CCD
  • Sony EFFIO-V DSP Chipset
  • 700TVL Resolution
  • 2.8mm – 11mm Varifocal Korean lens
  • 40m – 50m IR Range



Images

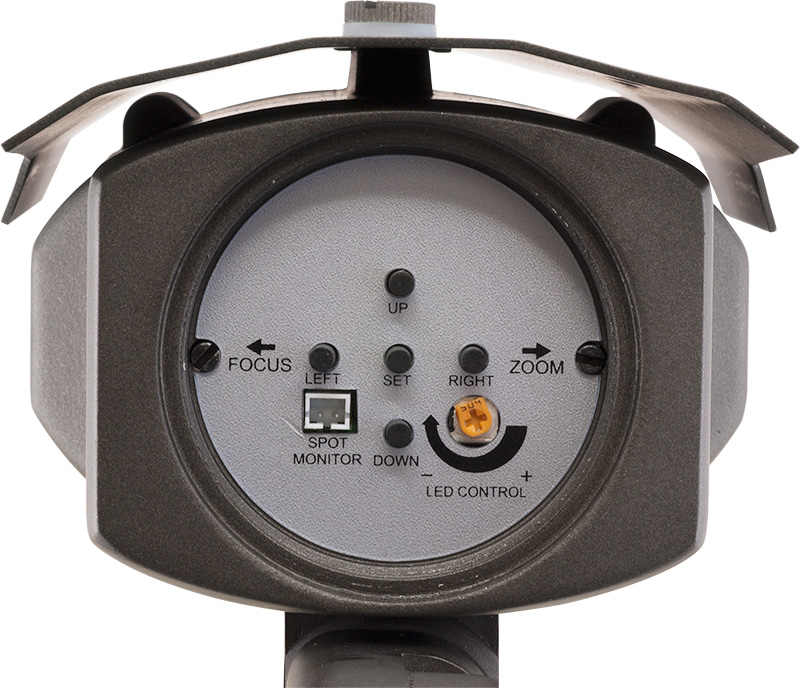

Access OSD and adjust IR Brightness from rear of camera





Specifications

Model IN50PRO

Sensor

 1/3" Sony Super HAD II CCD
DSP Sony EFFIO-V
Resolution 700TVL
Effective Pixels NTSC: 976 x 494
PAL: 976 x 582
Lens 2.8mm – 11mm
Lens Type Manual
Lens Origin Korea
Approx View Angle (H) 124.3° – 30.2°
IP Rating IP66
IR LEDs 48x Ø5mm
IR Range 40m – 50m
Adjustable IR Brightness yes (manual)
WDR
(Wide Dynamic Range)		 Super WDR
Sens-up yes
OSD yes
Inline Controller no
Noise Reduction 3D-NR
Backlight Compensation HLC/BLC/OFF
Image Colour Adjustment?
(ie brightness/contrast/ tone/saturation/sharpness)		 yes
Mirror function
(Horiz / Vert / Rotate)		 H / V / R
Privacy Zones 15
Motion Detection Zones 4
RS-485 no
Power
(with IR on where applicable)		 12VDC / 600mA





About Sony Chipsets

Sony’s Super HAD CCD II offers improved characteristics over the Super HAD CCD Sensor and other CCD Sensors.

  • Less space between On-chip microlenses and light sensors
  • Improved and longer life colour filters
    • Up to 100 times the life of previous colour filter
  • Larger light sensors and larger sensor apertures
    • Higher light sensitivity and improved spectral sensitivity
    • Increased sensitivity to near IR range
    • Lower noise

Microlens
Structure
Other CCD Sensors   Sony Super HAD II CCD


New in 2013, the DOSS range of cameras are being upgraded with Sony Effio DSP (Digital Signal Processor) chipsets for superior images and features—first and foremost, introducing 700TVL resolution across our range!

Sony’s Effio-V DSP Chipset supports the following features*:

  • WDR high-end model
  • ATR-EX (Adaptive Tone Reproduction)
  • 2D & 3D noise reduction
  • Digital image stabilizer
  • Slow shutter (Sens-up)
  • Digital Zoom / E-zoom
  • Motion detection
  • Privacy mask
  • HLC (High Light Compensation)
  • Preset OSD
  • Exposure control for IR light
  • Low power consumption

ATR-EX
(Actual camera image)

Sens-up
(Actual camera image)

WDR
(Actual camera image)
Off   On

*Features mentioned are supported by Effio chipset but may not be implemented/enabled – please check the camera specifications.






Short URL: https://bit.ly/2EMFYHF



DOSS Security Training 2013

Watch the training series on our new CCTV Cameras for 2013 here!

Short URL:



What you need to know for new CCTV installations

Cameras

  • What does each camera need to see? i.e. how far, how wide, how much detail?
  • What are the conditions the camera needs to work in? i.e. Day or night, infra-red, indoor or outdoor?
  • How will it be mounted, and are there any style considerations?

DVRs

  • How many cameras does it need to monitor, allowing for any expansion?
  • Do you need full D1 (576 line) recording on all channels?
  • How many days of recording at what quality needs to be stored?

Cabling

  • Do you want to run coaxial + power, or CAT5E/CAT6 with baluns?

Power

  • Will you supply power locally to each camera, or have one central supply?
  • What size of UPS do they need?
  • Do you want a plug pack, wall box (needs an electrician to wire), rack-mounted supply, or power supply + video balun box in one?

Networking & Remote Access

  • Does your customer want to view their cameras remotely?
